Description

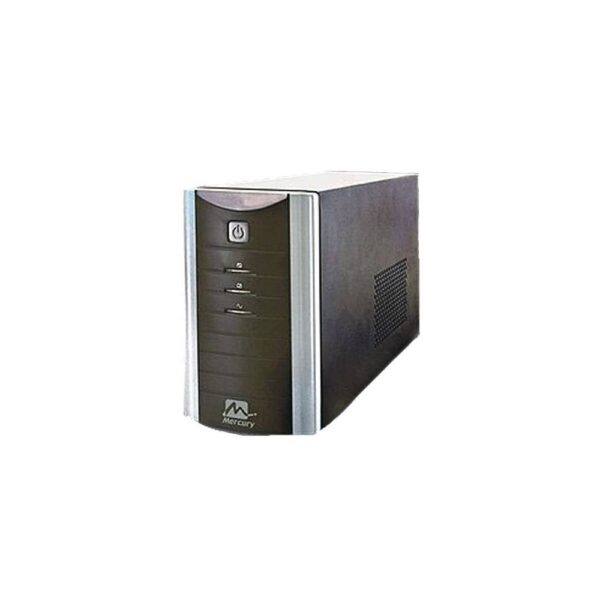

Mercury Elite 3000va Pro 3kva Ups
Specifications
CAPACITY :
Rating 3000VA
INPUT :
Voltage 220VAC / 230VAC / 240VAC
Voltage Range 140 – 300VAC
OUTPUT :
Voltage Regulation (Batt. Mode) +/-10%
Frequency 50Hz or 60Hz
Frequency Regulation(Batt. Mode) +/-1Hz
Output Waveform Modified Sine Wave
BATTERY :
Battery Type 12V/9.0AH x 4
Recharge Time 6-8 hrs to 90% after complete
discharge
TRANSFER TIME :
Typical 10ms
INDICATOR :
AC Mode The left green LED lighting & the 1st to 4th green
LEDs gradually lighting indicating
load level
Battery Mode The left green LED flashing & the 1st to 4th green
LEDs gradually lighting indicating
battery capacity
Fault Mode Red LED Lighting
AUDIBLE ALARM :
Backup Mode Sounding every 10 seconds
Low Battery Sounding every 1 second
Overload Sounding every 0.5 seconds
Fault Continuously sounding
PROTECTION :
Full Protection Discharge, Overcharge and
Overload Protection
PHYSICAL :
Dimension (mm) 436(L) x 145(W) x 211.7(H)
ENVIRONMENT :
Operating Environment 0°C – 40°C
Noise Level Less than 40dB
