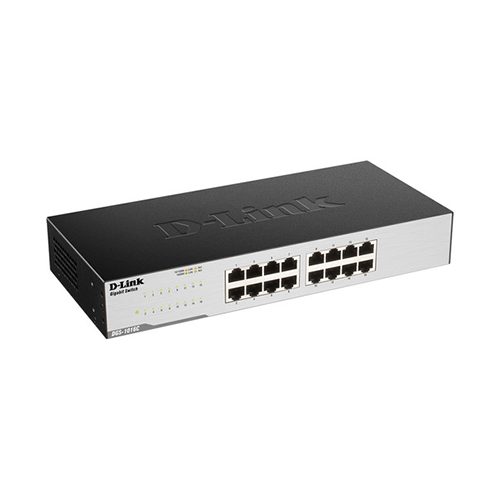

D-LinkModel DGS-1016D
D-LINK 16 PORT GIGABIT SWITCH – DGS-1016D
In stock
D-LINK 16 PORT GIGABIT SWITCH – DGS-1016D
At a glance
- Switch type
- Unmanaged
- Electromagnetic compatibility
- ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
- Certification
- cUL/UL CE LVD CCC CB BSMI
- Quality of Service (QoS) support
- Yes
- Width
- 280 mm
- Depth
- 125 mm
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Overview
D-LINK 16 PORT GIGABIT SWITCH – DGS-1016D
Specifications
| Switch type | Unmanaged |
|---|---|
| Electromagnetic compatibility | ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC |
| Certification | cUL/UL CE LVD CCC CB BSMI |
| Quality of Service (QoS) support | Yes |
|---|
| Width | 280 mm |
|---|---|
| Depth | 125 mm |
| Height | 44 mm |
| Weight | 1.02 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| LED indicators | Activity, Link, Power, Speed |
|---|
| Heat dissipation | 34.3 BTU/h |
|---|
| Power consumption (max) | 10.07 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Auto MDI/MDI-X | Yes |
|---|---|
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 1882372 h |
| Stackable | Yes |
|---|---|
| Product colour | Black, Silver |
| Housing material | Metal |
| Rack mounting | Yes |
| Form factor | 1U |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 0.5 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
