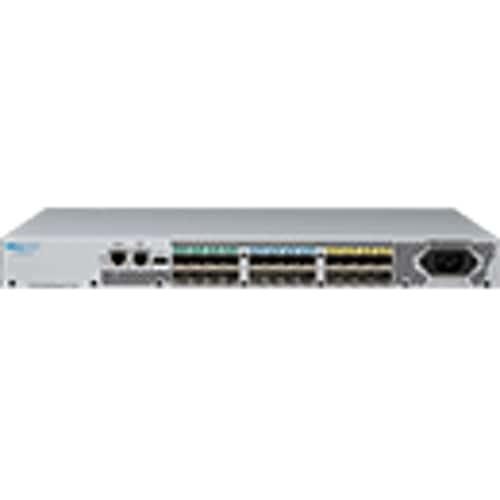

DELL DS-6610B-L Managed 1U Grey
DellModel DS6610B-FY26Q2-16GB
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Security algorithms
- HTTPS, IPSec
- Management protocols
- Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB)
- Width
- 428.8 mm
Overview
DELL DS-6610B-L Managed 1U Grey is a Dell switches & adapter with a management protocols of Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB) and a switch type of Managed. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Management protocols is Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB). Switch type is Managed. Authentication type is RADIUS, TACACS+. Airflow direction is Back-to-front airflow. SSH/SSL support is Yes. Security algorithms is HTTPS, IPSec. Weight is 5.76 kg. Height is 42.9 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Switch type | Managed |
|---|
| Security algorithms | HTTPS, IPSec |
|---|
| Management protocols | Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB) |
|---|
| Width | 428.8 mm |
|---|---|
| Depth | 306 mm |
| Height | 42.9 mm |
| Weight | 5.76 kg |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 77 W |
|---|---|
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Input current | 2.2 A |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Product colour | Grey |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Airflow direction | Back-to-front airflow |
| IP-MAC-Port binding | Yes |
|---|---|
| Authentication type | RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| SFP module slots quantity | 16 |
|---|---|
| Fiber optic connector | SFP |
