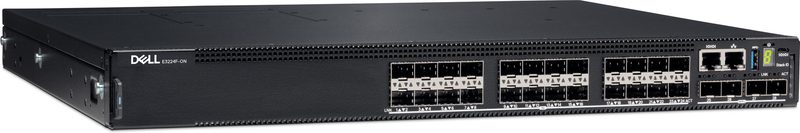

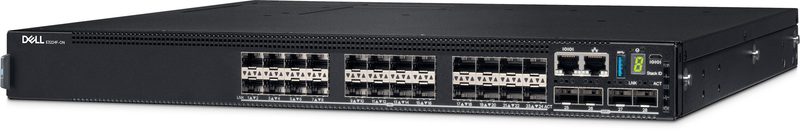

DELL E3224F-ON Managed L2/L3 1U Black
DellModel E3224F263
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Switch type
- Managed
- Product colour
- Black
- Rack mounting
- Yes
Specifications
| Compliance certificates | RoHS |
|---|---|
| Switch type | Managed |
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Auto MDI/MDI-X | Yes |
|---|
| Width | 434 mm |
|---|---|
| Depth | 400 mm |
| Height | 43.5 mm |
| Weight | 6.46 kg |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| LED indicators | Yes |
|---|
| Power consumption (max) | 230 W |
|---|---|
| AC input voltage | 250 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Power source | AC |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Heat dissipation | 785 BTU/h |
|---|
| USB Type-A ports quantity | 1 |
|---|---|
| Built-in processor | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Routing protocols | BGP, OSPFv2, OSPFv3, RIP-1, RIP-2 |
| Multicast support | Yes |
|---|
| Authentication | MAC-based authentication |
|---|---|
| Authentication type | RADIUS, TACACS+ |
| Switching capacity | 528 Gbit/s |
|---|---|
| Forwarding rate | 733 Mpps |
| Packet buffer memory | 8 MB |
| 10G support | Yes |
|---|---|
| Port mirroring | Yes |
| Security algorithms | SNMP |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto-sensing | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Private VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Number of management ports | 1 pc(s) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 2 |
| Power cables quantity | 1 |
| Web-based management | Yes |
|---|---|
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
