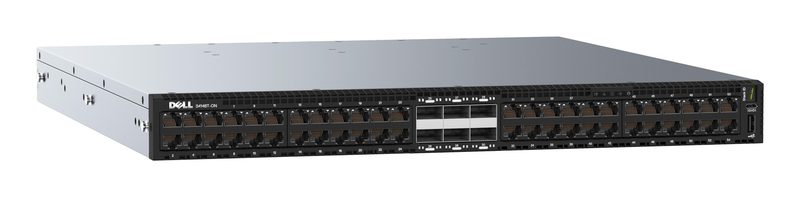

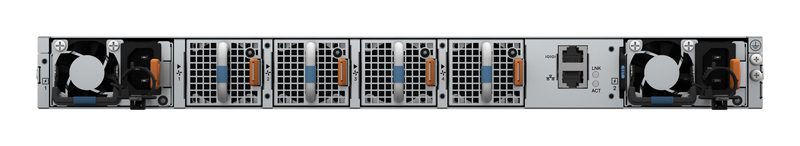

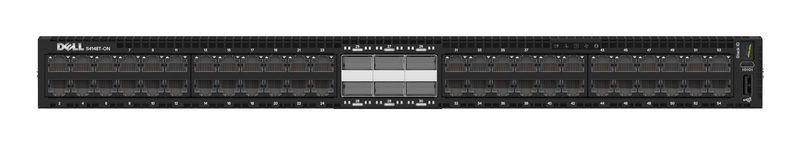

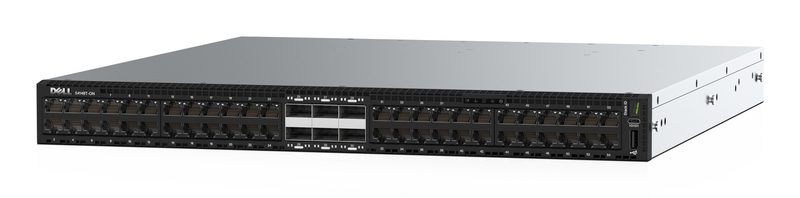

DELL S-Series S4148T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
DellModel S4148T263
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Packaging content
- Power Cord, 250v, 12 Amps, 2 Meters, C13/C14
- Switch type
- Managed
- Management protocols
- CLI, SNMP, REST, API’s
- Total carbon footprint (kg of CO2e)
- 477
Overview
DELL S-Series S4148T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black is a Dell switches & adapter with a power connector of AC-in jack and a management protocols of CLI, SNMP, REST, API’s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Management protocols is CLI, SNMP, REST, API’s. Virtual LAN features is Tagged VLAN. Packet buffer memory is 12 MB. Heat dissipation is 1500 BTU/h. Total carbon footprint (kg of CO2e) is 477. Total carbon emissions, standard deviation (kg of CO2e) is 88. Carbon emissions, end-of-life (kg of CO2e) is 0.01. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Packaging content | Power Cord, 250v, 12 Amps, 2 Meters, C13/C14 |
|---|---|
| Switch type | Managed |
| Management protocols | CLI, SNMP, REST, API’s |
|---|
| Total carbon footprint (kg of CO2e) | 477 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 88 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.01 |
| Width | 431 mm |
|---|---|
| Depth | 457 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| LED indicators | Yes |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Display type | LED |
|---|---|
| Heat dissipation | 1500 BTU/h |
| Power consumption (max) | 440 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Internal memory | 4000 MB |
|---|---|
| Built-in processor | Yes |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 272 entries |
| DHCP features | DHCP relay, DHCP server |
|---|---|
| System event log | Yes |
| SSH/SSL support | Yes |
| MAC address table | 272000 entries |
|---|---|
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| Packet buffer memory | 12 MB |
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Security algorithms | IPSec |
| Full duplex | Yes |
| Link aggregation | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Virtual LAN features | Tagged VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 2 |
| Fiber optic connector | QSFP28 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 4 |
| Fiber ports quantity | 4 |
| Power connector | AC-in jack |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
