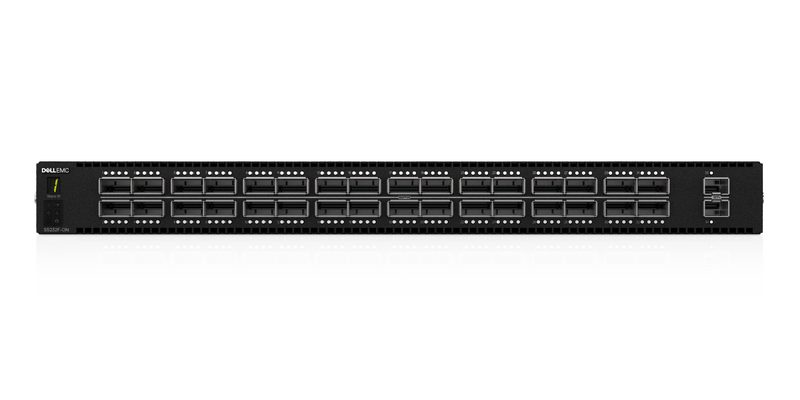

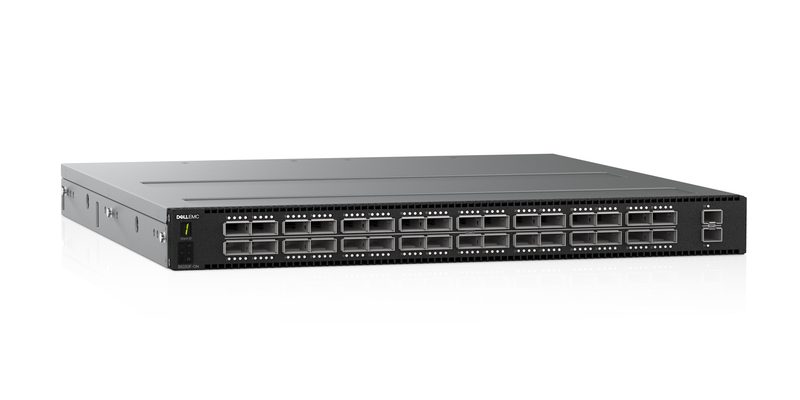

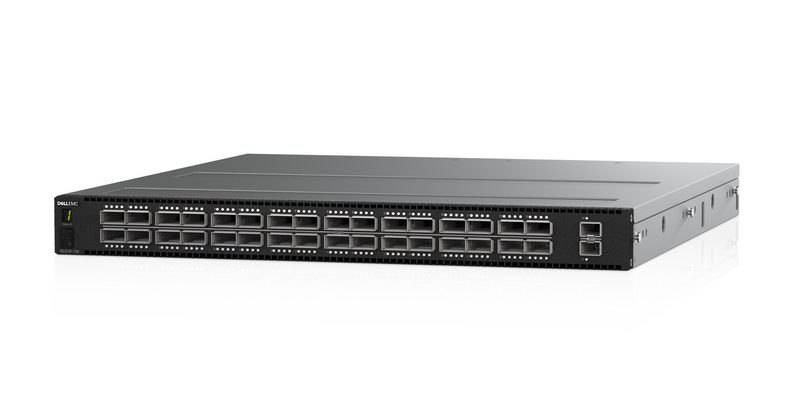

DELL S-Series S5232F-ON Managed L2/L3 1U Black
DellModel 210-APHK-6X45
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Packaging content
- Kit Rack 2/4 1U 2x 250 V, 2 metros, NBR 14136/C13
- Switch type
- Managed
- Internal memory
- 16000 MB
Overview
DELL S-Series S5232F-ON Managed L2/L3 1U Black is a Dell switches & adapter with a management protocols of CLI, SNMP, REST, API’s and a supported network protocols of IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Management protocols is CLI, SNMP, REST, API’s. Supported network protocols is IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS. MIB support is IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC. Virtual LAN features is Tagged VLAN. Packet buffer memory is 32 MB. Compliance certificates is RoHS. Heat dissipation is 2167 BTU/h. Packaging content is Kit Rack 2/4 1U 2x 250 V, 2 metros, NBR 14136/C13. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Packaging content | Kit Rack 2/4 1U 2x 250 V, 2 metros, NBR 14136/C13 |
| Switch type | Managed |
| Internal memory | 16000 MB |
|---|---|
| Built-in processor | Yes |
| Width | 434 mm |
|---|---|
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 9.8 kg |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power consumption (typical) | 360 W |
|---|---|
| Power consumption (max) | 516 W |
| AC input voltage | 250 V |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
| Heat dissipation | 2167 BTU/h |
|---|
| Operating system installed | OS10 |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Ventilation system | Front-to-back airflow |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
| Multicast support | Yes |
|---|
| Access Control List (ACL) IPv4 entries | 128000 |
|---|---|
| Access Control List (ACL) IPv6 entries | 64000 |
| MAC address table | 288000 entries |
|---|---|
| Switching capacity | 3200 Gbit/s |
| Throughput | 2.4 Mpps |
| Packet buffer memory | 32 MB |
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Tagged VLAN |
| Supported network protocols | IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
| Fiber ports quantity | 32 |
| Switch layer | L2/L3 |
|---|---|
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC |
