DellModel S4112F_2.0

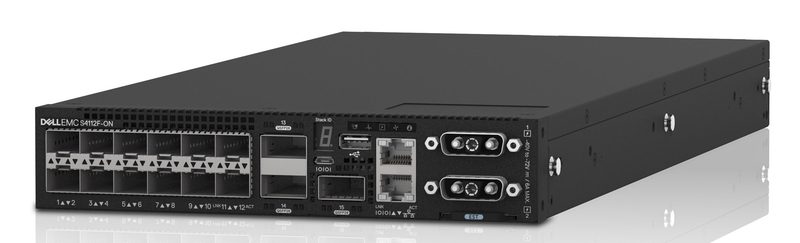

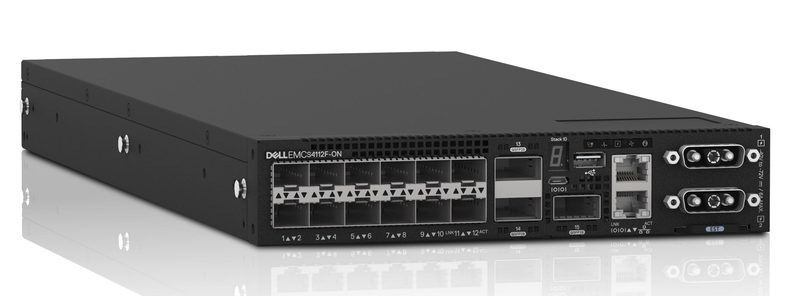

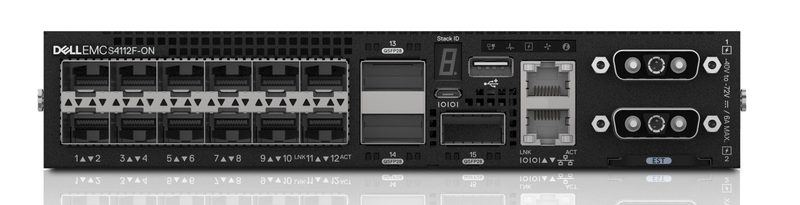

DELL S4112F Managed L2+/L3 1U
Available to order
Dell Switches & Adapter. Available from OfficeLand with nationwide delivery; request a quote for pricing.
At a glance
- Switch type
- Managed
- Total carbon footprint (kg of CO2e)
- 3880
- Total carbon emissions, standard deviation (kg of CO2e)
- 1220
- Carbon emissions, manufacturing (kg of CO2e)
- 2388
- Carbon emissions, logistics (kg of CO2e)
- 119
- Carbon emissions, energy usage (kg of CO2e)
- 1360
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Overview
DELL S4112F Managed L2+/L3 1U is a Dell switches & adapter with a virtual lan features of Multicast VLAN and a packet buffer memory of 12 MB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Virtual LAN features is Multicast VLAN. Packet buffer memory is 12 MB. Heat dissipation is 614 BTU/h. Total carbon footprint (kg of CO2e) is 3880. Total carbon emissions, standard deviation (kg of CO2e) is 1220. Carbon emissions, manufacturing (kg of CO2e) is 2388. Carbon emissions, logistics (kg of CO2e) is 119. Carbon emissions, energy usage (kg of CO2e) is 1360. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Switch type | Managed |
|---|
| Total carbon footprint (kg of CO2e) | 3880 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 1220 |
| Carbon emissions, manufacturing (kg of CO2e) | 2388 |
| Carbon emissions, logistics (kg of CO2e) | 119 |
| Carbon emissions, energy usage (kg of CO2e) | 1360 |
| Carbon emissions, end-of-life (kg of CO2e) | 7 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2514 |
| PAIA version | 1.2.8, 2020 |
| Width | 209 mm |
|---|---|
| Depth | 450 mm |
| Height | 41.2 mm |
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Stackable | Yes |
|---|---|
| Number of fans | 3 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Power consumption (typical) | 90 W |
|---|---|
| Power consumption (max) | 180 W |
| AC input voltage | 250 V |
| Input current | 12 A |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Heat dissipation | 614 BTU/h |
|---|
| Operating system installed | OS10 |
|---|
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 8000 entries |
| SSH/SSL support | Yes |
|---|
| MAC address table | 272000 entries |
|---|---|
| Switching capacity | 840 Gbit/s |
| Throughput | 630 Mpps |
| Packet buffer memory | 12 MB |
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3 |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Virtual LAN features | Multicast VLAN |
| SFP+ module slots quantity | 12 |
|---|---|
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 3 |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
