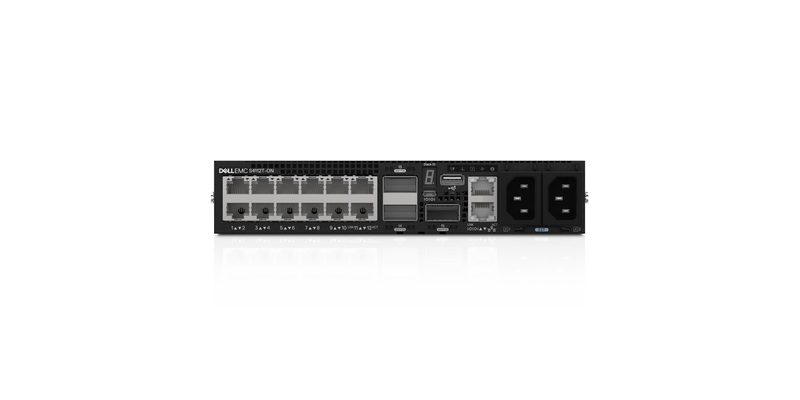

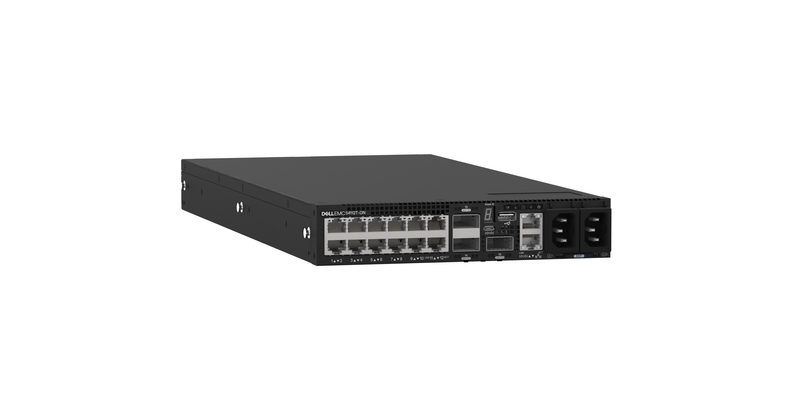

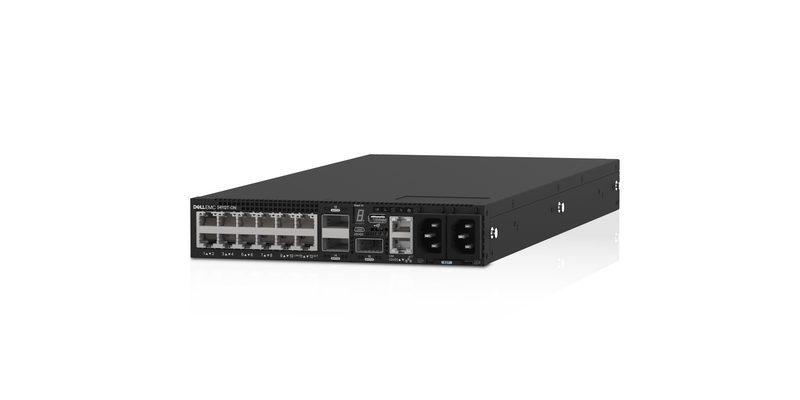

DELL S4112T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
DellModel 210-BJPQ-SPX1
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Packaging content
- Tadem Tray - Dual Tray one rack unit
- Switch type
- Managed
- Cables included
- AC
- Width
- 209 mm
Overview
DELL S4112T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black is a Dell switches & adapter with a power connector of AC-in jack and a supported network protocols of IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Supported network protocols is IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS. Virtual LAN features is Tagged VLAN. Packet buffer memory is 12 MB. Heat dissipation is 682 BTU/h. Packaging content is Tadem Tray - Dual Tray one rack unit. Switch type is Managed. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Packaging content | Tadem Tray - Dual Tray one rack unit |
|---|---|
| Switch type | Managed |
| Cables included | AC |
|---|
| Width | 209 mm |
|---|---|
| Depth | 450 mm |
| Height | 41.2 mm |
| Weight | 3.83 kg |
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| LED indicators | Yes |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Power consumption (typical) | 120 W |
|---|---|
| Power consumption (max) | 200 W |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | C13 coupler |
| Heat dissipation | 682 BTU/h |
|---|
| Operating system installed | OS10 |
|---|
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 272 entries |
| DHCP features | DHCPv6 relay, DHCPv6 server |
|---|---|
| SSH/SSL support | Yes |
| MAC address table | 272000 entries |
|---|---|
| Switching capacity | 840 Gbit/s |
| Throughput | 630 Mpps |
| Latency (10-100 Mbps) | 2500 µs |
| Packet buffer memory | 12 MB |
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| IPv4 routes | 200 |
| Virtual LAN features | Tagged VLAN |
| Supported network protocols | IPv4 e IPv6 Roteamente Estático, RIP, OSPFv2 ,OSPFv3, BGP e IS-IS |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 3 |
| Power connector | AC-in jack |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
