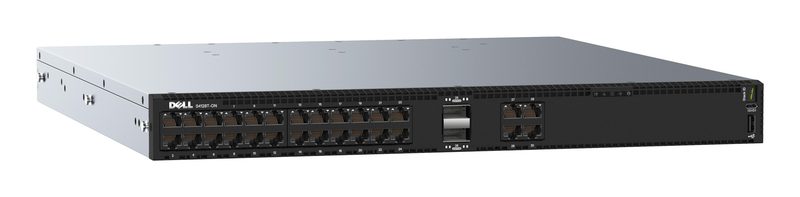

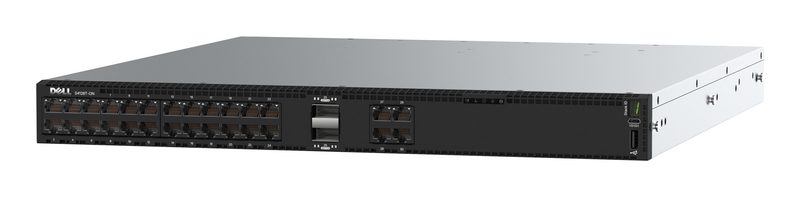

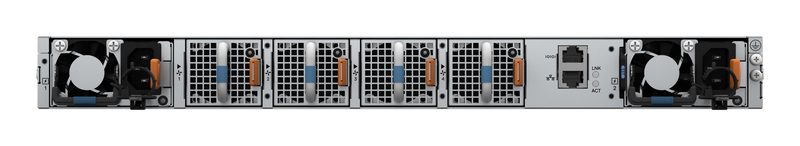

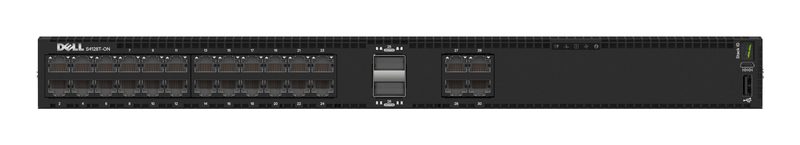

DELL S4128T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black, Grey
DellModel S4128T_2.0
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Total carbon footprint (kg of CO2e)
- 3880
- Total carbon emissions, standard deviation (kg of CO2e)
- 1220
- Carbon emissions, manufacturing (kg of CO2e)
- 2388
Overview
DELL S4128T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black, Grey is a Dell switches & adapter with a power connector of AC-in jack and a packet buffer memory of 12 MB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power connector is AC-in jack. Packet buffer memory is 12 MB. Heat dissipation is 1023 BTU/h. Total carbon footprint (kg of CO2e) is 3880. Total carbon emissions, standard deviation (kg of CO2e) is 1220. Carbon emissions, manufacturing (kg of CO2e) is 2388. Carbon emissions, logistics (kg of CO2e) is 119. Carbon emissions, energy usage (kg of CO2e) is 1360. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Switch type | Managed |
|---|
| Total carbon footprint (kg of CO2e) | 3880 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 1220 |
| Carbon emissions, manufacturing (kg of CO2e) | 2388 |
| Carbon emissions, logistics (kg of CO2e) | 119 |
| Carbon emissions, energy usage (kg of CO2e) | 1360 |
| Carbon emissions, end-of-life (kg of CO2e) | 7 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2514 |
| PAIA version | 1.2.8, 2020 |
| Cables included | AC |
|---|
| Width | 434 mm |
|---|---|
| Depth | 460 mm |
| Height | 43.5 mm |
| Weight | 9.38 kg |
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Stackable | Yes |
|---|---|
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Rack mounting | Yes |
| Form factor | 1U |
| Power consumption (typical) | 250 W |
|---|---|
| Power consumption (max) | 300 W |
| AC input voltage | 250 V |
| Input current | 12 A |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Heat dissipation | 1023 BTU/h |
|---|
| Operating system installed | OS10 |
|---|
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 8000 entries |
| SSH/SSL support | Yes |
|---|
| MAC address table | 272000 entries |
|---|---|
| Switching capacity | 960 Gbit/s |
| Throughput | 720 Mpps |
| Latency (10-100 Mbps) | 800 µs |
| Packet buffer memory | 12 MB |
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3ae |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 2 |
| Power connector | AC-in jack |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
