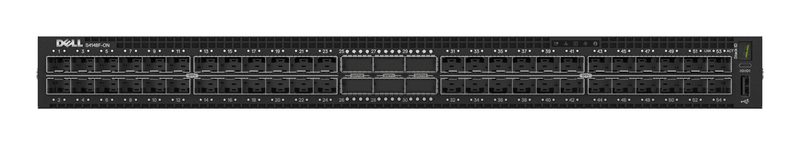

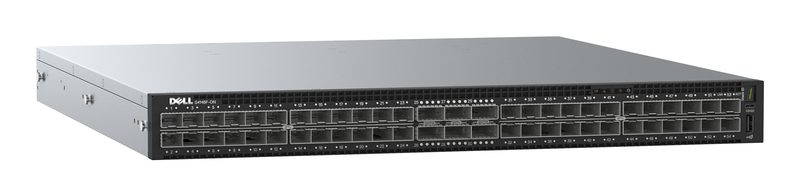

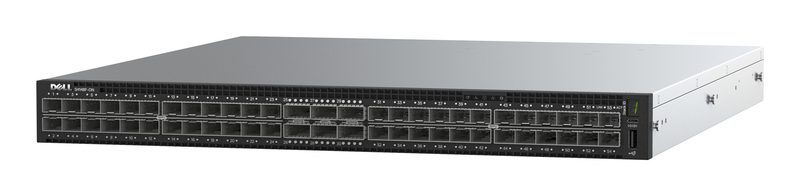

DELL S4148F Managed L2/L3 1U Black
DellModel S4148F_2.0
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Product colour
- Black
- Rack mounting
- Yes
- Form factor
- 1U
Overview
DELL S4148F Managed L2/L3 1U Black is a Dell switches & adapter with a management protocols of CLI, SNMP, REST, API’s and a mib support of IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Management protocols is CLI, SNMP, REST, API’s. MIB support is IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB. Virtual LAN features is Tagged VLAN. Heat dissipation is 1364 BTU/h. Total carbon footprint (kg of CO2e) is 3880. Total carbon emissions, standard deviation (kg of CO2e) is 1220. Carbon emissions, manufacturing (kg of CO2e) is 2388. Carbon emissions, logistics (kg of CO2e) is 119. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Switch type | Managed |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Built-in processor | Yes |
|---|
| Management protocols | CLI, SNMP, REST, API’s |
|---|
| Total carbon footprint (kg of CO2e) | 3880 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 1220 |
| Carbon emissions, manufacturing (kg of CO2e) | 2388 |
| Carbon emissions, logistics (kg of CO2e) | 119 |
| Carbon emissions, energy usage (kg of CO2e) | 1360 |
| Carbon emissions, end-of-life (kg of CO2e) | 7 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2514 |
| PAIA version | 1.2.8, 2020 |
| Width | 431 mm |
|---|---|
| Depth | 457 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| LED indicators | Yes |
|---|
| Power consumption (typical) | 200 W |
|---|---|
| Power consumption (max) | 370 W |
| AC input voltage | 250 V |
| Input current | 12 A |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Heat dissipation | 1364 BTU/h |
|---|
| Operating system installed | OS10 |
|---|
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 272 entries |
| System event log | Yes |
|---|---|
| SSH/SSL support | Yes |
| MAC address table | 272000 entries |
|---|---|
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| 10G support | Yes |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Virtual LAN features | Tagged VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Gigabit Ethernet (copper) ports quantity | 1 |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 4 |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB |
