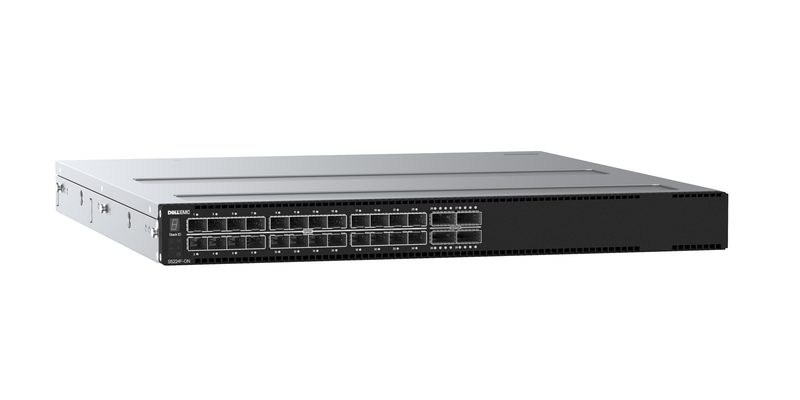

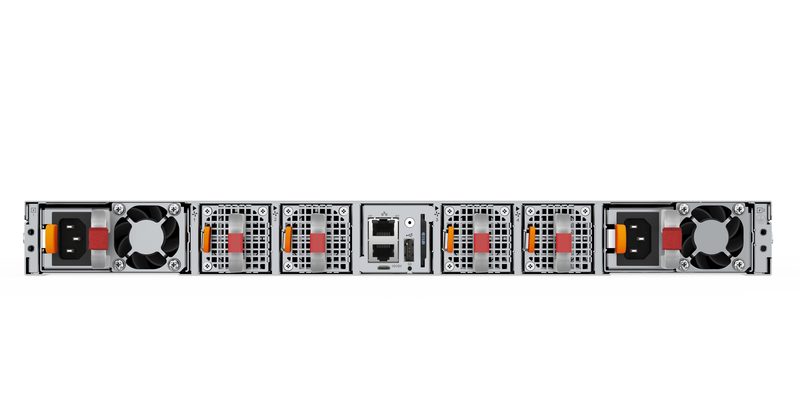

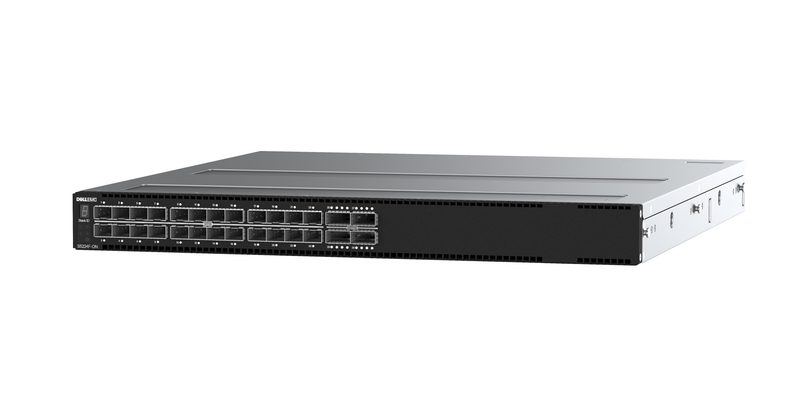

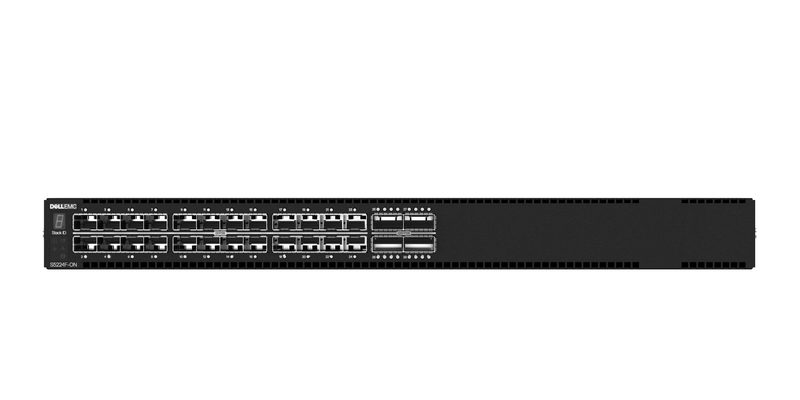

DELL S5224F Managed L2/L3 1U Black
DellModel S5224F263
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Compatible operating systems
- OS10 Debian Linux version 9 Linux Kernel 4.9
- Packaging content
- Power Cord, 250V, 2 meter, C13-C14
- Switch type
- Managed
Overview
DELL S5224F Managed L2/L3 1U Black is a Dell switches & adapter with a sustainability compliance of Yes and a power connector of AC-in jack. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Power connector is AC-in jack. Management protocols is CLI, SNMP, REST API’s. MIB support is IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP EXT1/3 MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB, ETHERLIKE-MIB, SFLOW-MIB, PFC-MIB. Number of VLANs is 4000. Reset button is Yes. Packet buffer memory is 32 MB. Compliance certificates is RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Compatible operating systems | OS10 Debian Linux version 9 Linux Kernel 4.9 |
| Packaging content | Power Cord, 250V, 2 meter, C13-C14 |
| Switch type | Managed |
| Internal memory | 16000 MB |
|---|---|
| Built-in processor | Yes |
| System event log | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 4022 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 2131 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.01 |
| Sustainability compliance | Yes |
|---|
| Width | 434 mm |
|---|---|
| Depth | 460 mm |
| Height | 43.6 mm |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power consumption (max) | 455 W |
|---|---|
| AC input voltage | 250 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Power source | AC |
| Power cable length | 2 m |
| Power over Ethernet (PoE) | No |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Memory type | SDRAM |
|---|
| Stackable | Yes |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Form factor | 1U |
| Airflow direction | Front-to-back airflow |
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Management protocols | CLI, SNMP, REST API’s |
| Multicast support | Yes |
|---|
| MAC address table | 160000 entries |
|---|---|
| Switching capacity | 2160 Gbit/s |
| Throughput | 720 Mpps |
| Packet buffer memory | 32 MB |
| 10G support | Yes |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| IPv4 routes | 128 |
| IPv6 routes | 64 |
| Number of VLANs | 4000 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 24 |
| Power connector | AC-in jack |
| Switch layer | L2/L3 |
|---|---|
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Reset button | Yes |
| MIB support | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP EXT1/3 MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB, ETHERLIKE-MIB, SFLOW-MIB, PFC-MIB |
