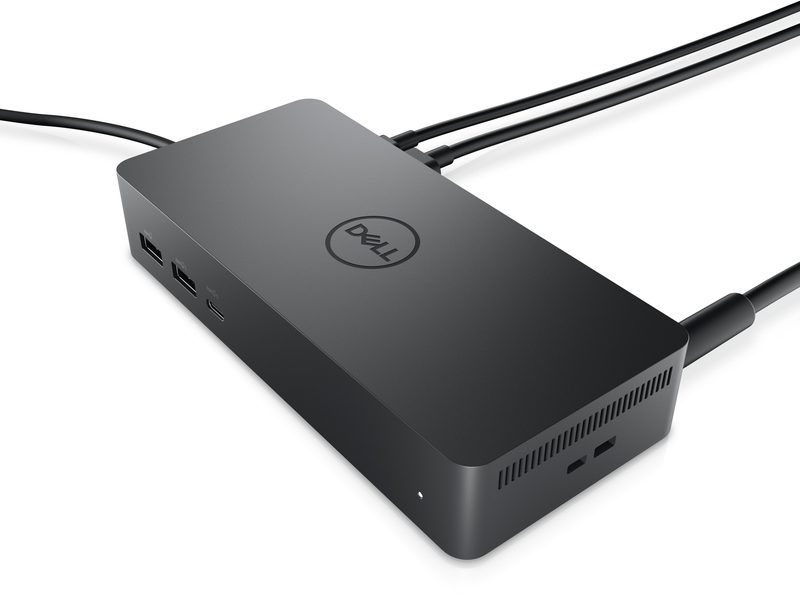

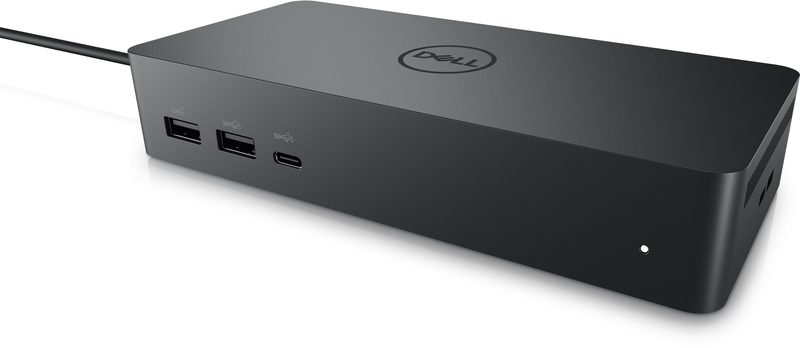

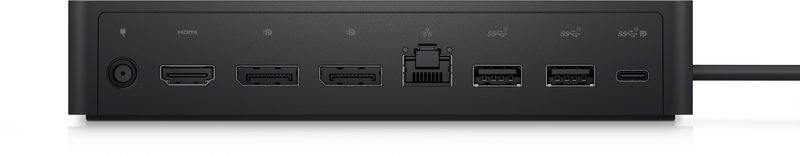

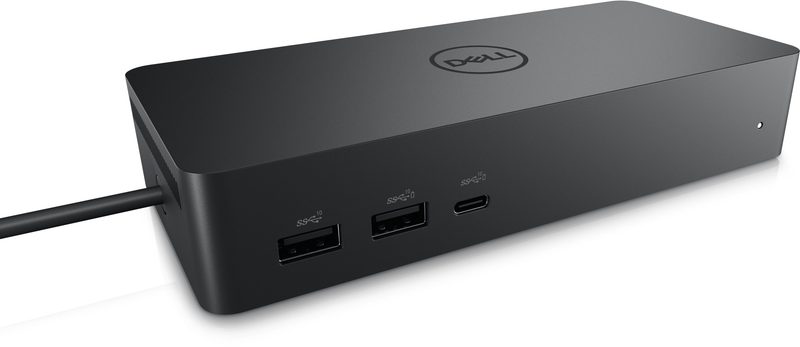

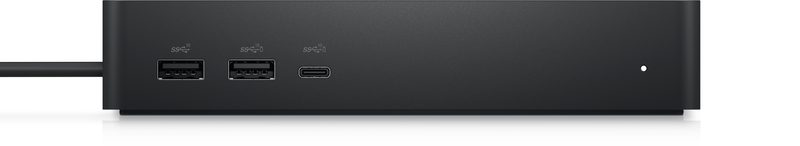

DELL Universal Dock - UD22 Docking USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
DellModel 210-BEXR
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 84733020
- Windows operating systems supported
- Windows 10, Windows 11
- Mac operating systems supported
- MacOS
- Other operating systems supported
- ChromeOS
Overview
DELL Universal Dock - UD22 Docking USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black is a Dell switches & adapter with a harmonized system (hs) code of 84733020 and a number of usb ports with powershare support of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Harmonized System (HS) code is 84733020. Number of USB ports with PowerShare support is 2. PowerShare is Yes. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. USB Power Delivery (USB PD) is Yes. Power supply is 130 W. DC-in jack is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Harmonized System (HS) code | 84733020 |
|---|
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Mac operating systems supported | MacOS |
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Ubuntu 20.04 LTS |
| AC adapter included | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Cables included | USB Type-C |
|---|---|
| Quick start guide | Yes |
| Width | 76 mm |
|---|---|
| Depth | 166 mm |
| Height | 32 mm |
| Weight | 416 g |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| VESA mounting | Yes |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| Power source type | DC |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Output current | 6.67 A |
| Output voltage | 19.5 V |
| USB Power Delivery (USB PD) | Yes |
| Power supply | 130 W |
| Ethernet LAN | Yes |
|---|
| Card reader integrated | No |
|---|---|
| Maximum digital resolution | 5120 x 2880 pixels |
| Product colour | Black |
|---|
| USB Power Delivery revision | 3.0 |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology | Docking |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
| Maximum VESA mount | 100 x 100 mm |
|---|
