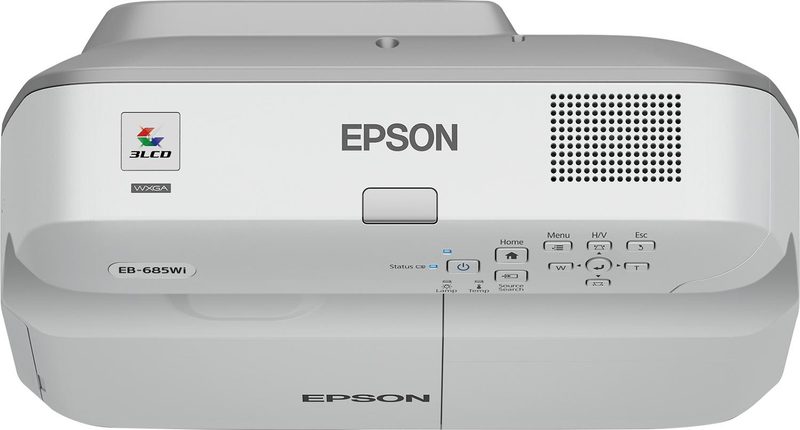

Epson EB-685WI Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
EpsonModel V11H741540
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Video colour modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard
- Ethernet LAN (RJ-45) ports
- 1
- Product type
- Ultra short throw projector
- Product colour
- White, Grey
Overview
Epson EB-685WI Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey is a Epson projectors & screen with a ethernet lan (rj-45) ports of 1 and a keystone correction, vertical of 3°. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. Keystone correction, vertical is 3°. Video colour modes is Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard. Keystone correction, horizontal is 3°. Matrix size is 1.5 cm (0.59"). Weight is 5.9 kg. Height is 149 mm. Depth is 400 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Product type | Ultra short throw projector |
|---|---|
| Product colour | White, Grey |
| Placement | Wall |
| Power consumption (economy mode) | 258 W |
|---|---|
| Power consumption (typical) | 301 W |
| Power consumption (standby) | 0.37 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Width | 367 mm |
|---|---|
| Depth | 400 mm |
| Height | 149 mm |
| Weight | 5.9 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Interactive | Yes |
|---|---|
| Noise level (economic mode) | 30 dB |
| Noise level | 35 dB |
| Native aspect ratio | 16:10 |
|---|---|
| Contrast ratio (typical) | 14000:1 |
| Vertical scan range | 100 - 120 Hz |
| Password protection | Yes |
|---|
| Composite video in | 1 |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Serial interface type | RS-232C |
| Wi-Fi | Yes |
| Full HD | No |
|---|
| RMS rated power | 16 W |
|---|
| Focus | Manual |
|---|---|
| Aperture range (F-F) | 0 - 1.6 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.28 - 0.37:1 |
| Focal length range | 3.7 mm |
| Light source type | Lamp |
|---|---|
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 250 W |
| Projector brightness | 3500 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Projection distance | 0.4 - 0.6 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2.9 ANSI lumens |
| Keystone correction, vertical | 3° |
| Keystone correction, horizontal | 3° |
| Matrix size | 1.5 cm (0.59") |
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g |
