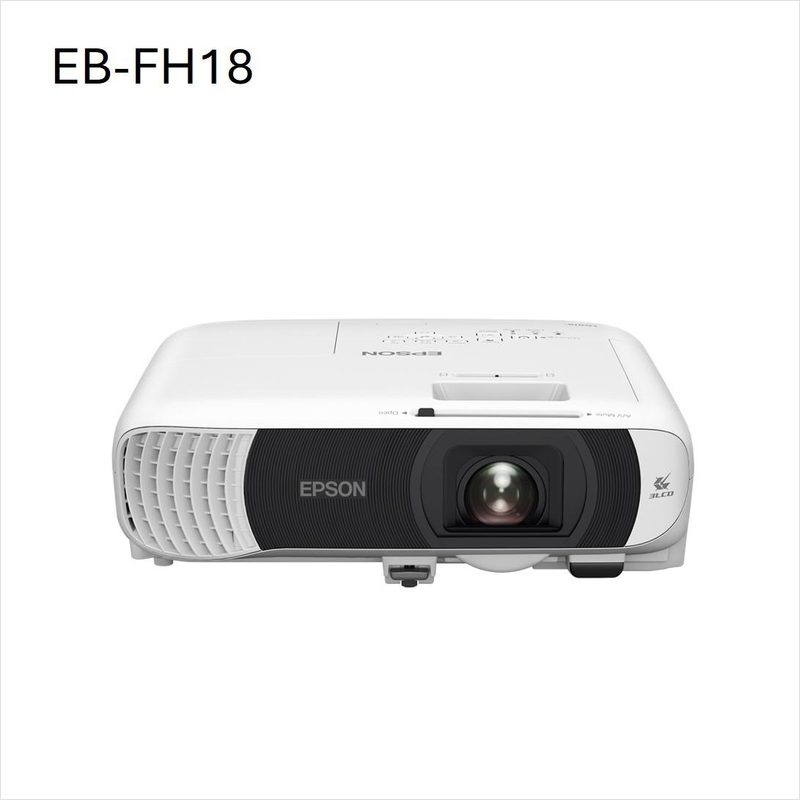

Epson EB-FH18
EpsonModel V11HB59240
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Padlock, Security cable hole, Password protection
- Other features
- A/V mute, AV Mute Slide, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Home Screen, JPEG Viewer, Long lamp life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
- Video colour modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB
- Option type
- Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Spare lamp, Suspension adapter
Overview
Epson EB-FH18 is a Epson projectors & screen with a power consumption of 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) and a control panel of 0.62 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby). Control panel is 0.62 inch with C2 Fine. Option type is Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Spare lamp, Suspension adapter. Pallet gross height is 2.25 m. Pallet gross length is 120 cm. Pallet gross width is 80 cm. Products per pallet layer is 6 pc(s). Products per pallet is 72 pc(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 36 months Carry in, Lamp: 36 months or 1,000 h. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Security features | Kensington lock, Padlock, Security cable hole, Password protection |
|---|---|
| Other features | A/V mute, AV Mute Slide, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Home Screen, JPEG Viewer, Long lamp life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Option type | Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Spare lamp, Suspension adapter |
| Control panel | 0.62 inch with C2 Fine |
| Products per pallet layer (UK) | 6 pc(s) |
|---|---|
| Products per pallet (UK) | 72 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
| Country of origin | Philippines |
| Products per pallet | 72 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.25 m |
| Power consumption | 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
|---|
| Market positioning | Home cinema |
|---|---|
| Product colour | White |
| Built-in display | No |
| Placement | Ceiling, Desktop |
| Quantity per pack | 1 pc(s) |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Power consumption (economy mode) | 181 W |
|---|---|
| Power consumption (typical) | 284 W |
| Power consumption (PowerSave) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |

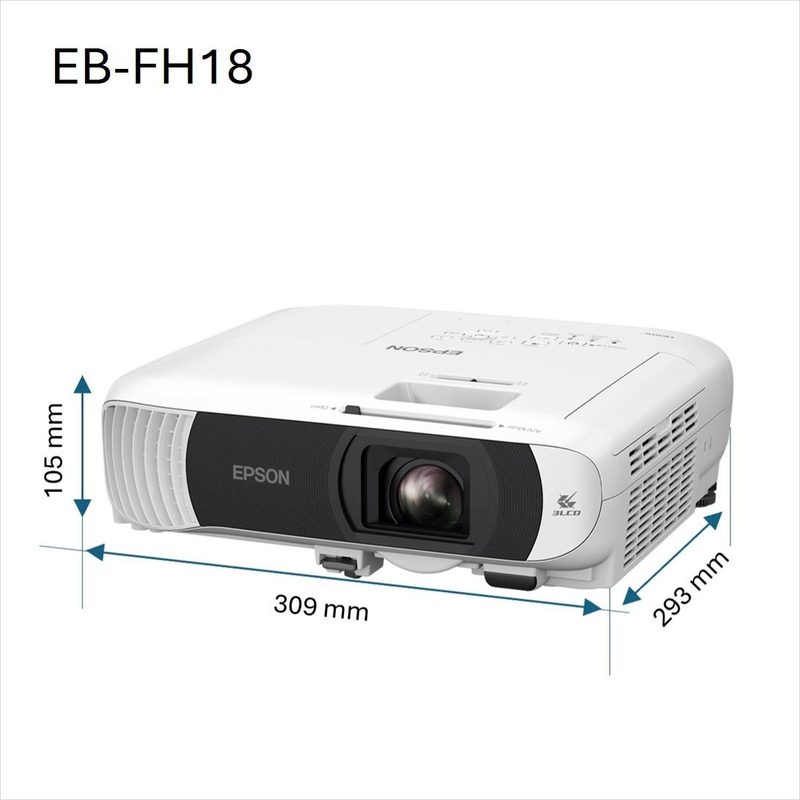

| Width | 309 mm |
|---|---|
| Depth | 293 mm |
| Height | 105 mm |
| Weight | 3.1 kg |
| Package width | 380 mm |
|---|---|
| Package depth | 390 mm |
| Package height | 175 mm |
| Package weight | 4.44 kg |
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Interactive | No |
|---|---|
| Noise level (economic mode) | 28 dB |
| Noise level | 37 dB |
| Native aspect ratio | 16:9 |
|---|---|
| Contrast ratio (typical) | 16000:1 |
| Contrast ratio (dynamic) | 16000:1 |
| Vertical scan range | 192 - 240 Hz |
| Password protection | Yes |
|---|
| Smart TV | No |
|---|---|
| Ethernet LAN | No |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Supported network protocols | HTTPS, IPv6, SNMP |
| Interface | USB 2.0-A, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), Miracast, Jack plug out |
|---|---|
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Wi-Fi | Yes |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 8 bit |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Blackboard, Presentation |
| Focus | Manual |
|---|---|
| Aperture range (F-F) | 1.51 - 1.77 |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.30 - 2.09:1 |
| Focal length range | 18.2 - 29.1 mm |
| Light source type | Lamp |
|---|---|
| Service life of light source | 5500 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 230 W |
| Projector brightness | 4100 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Screen size compatibility | 787.4 - 7721.6 mm (31 - 304") |
| Projection distance | 0.88 - 14.29 m |
| Projection distance (wide) | 0.9 - 8.9 m |
| Projection distance (tele) | 1.4 - 14.3 m |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 2300 ANSI lumens |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 1.57 cm (0.62") |
| Card reader integrated | No |
|---|---|
| Mobile app support | Yes |
| RMS rated power | 16 W |
|---|---|
| Audio system | Standard |
| Number of built-in speakers | 1 |
Warranty
36 months Carry in, Lamp: 36 months or 1,000 h
