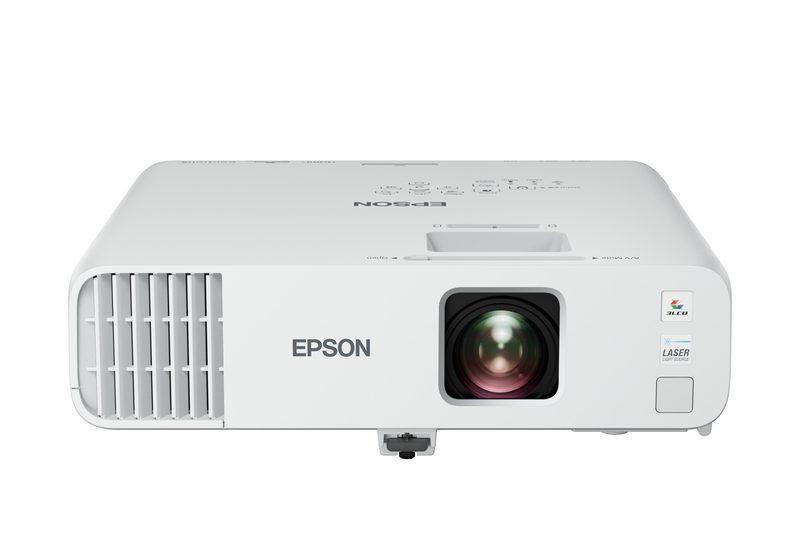

Epson EB-L270F
EpsonModel V11HC68080
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
- Other features
- AV Mute Slide, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Super resolution, Web Control, Wireless LAN capable, iProjection App
- Video colour modes
- Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB
- Ethernet LAN data rates
- 10,100 Mbit/s
Overview
Epson EB-L270F is a Epson projectors & screen with a power consumption of 222 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 209 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) and a control panel of 0.62 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 222 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 209 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby). Control panel is 0.62 inch with C2 Fine. Option type is Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Suspension adapter, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01. Country of origin is Philippines. Supported network protocols is HTTPS, IPv6, SNMP, ESC/VP.net, PJLink. Ethernet LAN data rates is 10,100 Mbit/s. Bundled software is Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management. Heat dissipation is 945.2 BTU/h. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Security features | Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
|---|---|
| Other features | AV Mute Slide, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Super resolution, Web Control, Wireless LAN capable, iProjection App |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Option type | Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Suspension adapter, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Control panel | 0.62 inch with C2 Fine |
| Country of origin | Philippines |
|---|
| Power consumption | 222 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 209 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | AC, HDMI |

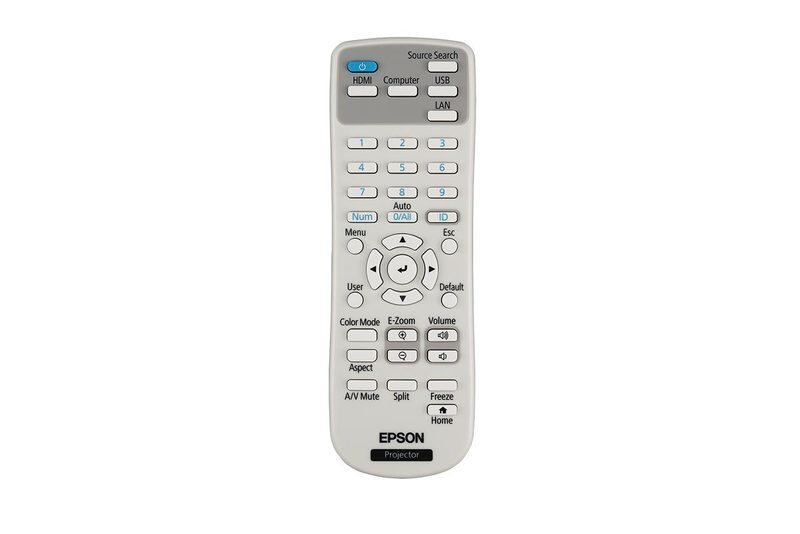

| Remote control included | Yes |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Market positioning | Education |
|---|---|
| Product colour | White |
| Built-in display | No |
| Placement | Ceiling, Desktop, Floor, Wall |
| Width | 325 mm |
|---|---|
| Depth | 299 mm |
| Height | 90 mm |
| Weight | 4.15 kg |
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Noise level (economic mode) | 28 dB |
|---|---|
| Noise level | 38 dB |
| Native aspect ratio | 16:9 |
|---|---|
| Contrast ratio (dynamic) | 5000000:1 |
| Vertical scan range | 192 - 240 Hz |
| 3D | No |
| Heat dissipation | 945.2 BTU/h |
| Password protection | Yes |
|---|
| Ethernet LAN | Yes |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Power consumption (typical) | 222 W |
|---|---|
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Interface | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct (optional), VGA in (2x), VGA out, Composite in, Miracast (optional), Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac (optional) |
|---|---|
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| VGA (D-Sub) ports quantity | 3 |
| DVI port | No |
| Headphone outputs | 1 |
| HDCP | Yes |
| AC (power) in | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| Serial interface type | RS-232C |
| Microphone in | Yes |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic, sRGB, Game, Presentation |
| RMS rated power | 16 W |
|---|
| Focus | Manual |
|---|---|
| Aperture range (F-F) | 1.51 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.32 - 2.12:1 |
| Focal length range | 18.2 - 29.1 mm |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Projector brightness | 5200 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Screen size compatibility | 787.4 - 7874 mm (31 - 310") |
| Projection distance (wide) | 0.9 - 9.1 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3600 ANSI lumens |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 1.57 cm (0.62") |
| Card reader integrated | No |
|---|---|
| Mobile app support | Yes |
