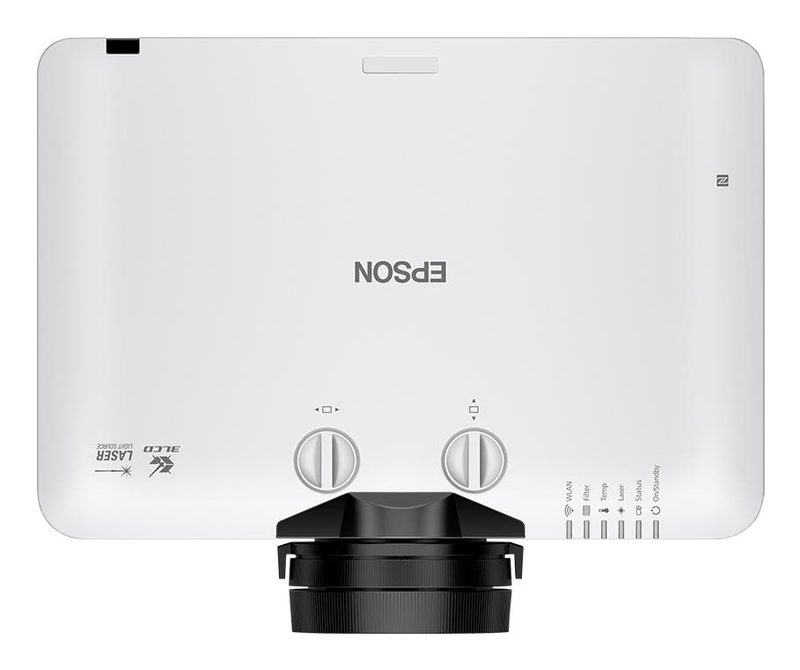

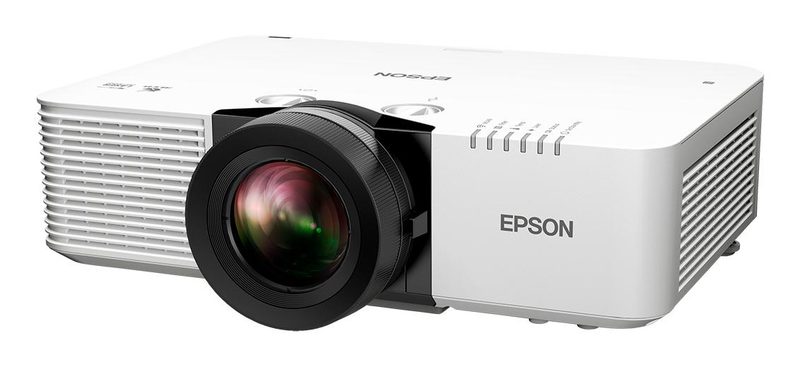

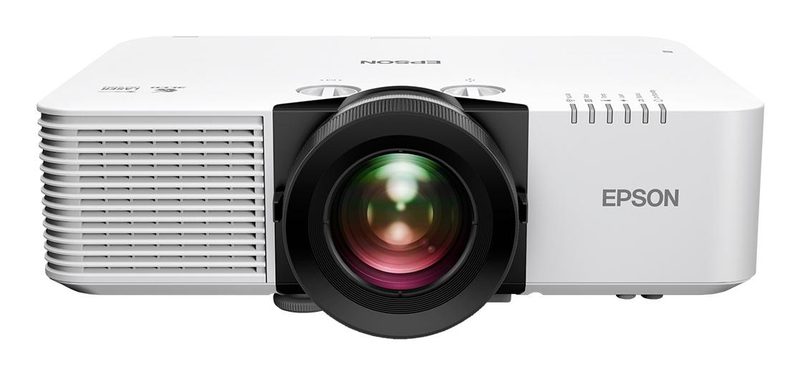

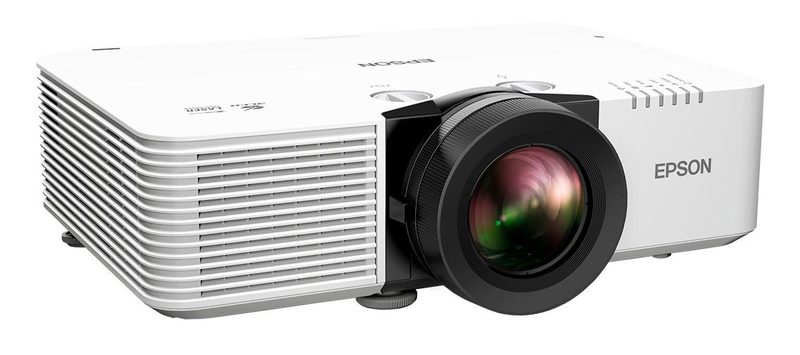

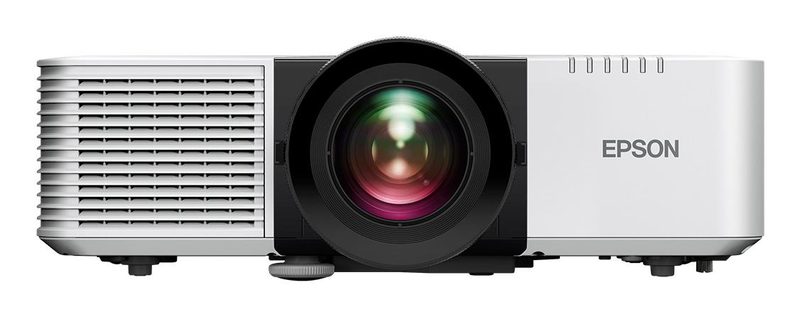

Epson EB-L790SU
EpsonModel V11HB30040
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
- Other features
- 21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
- Video colour modes
- BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
- Option type
- Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Overview
Epson EB-L790SU is a Epson projectors & screen with a warranty period of 3 year(s) and a power consumption of 388 Watt (Normal On-Mode), 266 Watt (Eco On-Mode), 450 Watt (Normal Peak-mode), 330 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby). The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Warranty period is 3 year(s). Power consumption is 388 Watt (Normal On-Mode), 266 Watt (Eco On-Mode), 450 Watt (Normal Peak-mode), 330 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby). Control panel is 0.67 inch with C2 Fine. Option type is Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20. Pallet gross height is 2.03 m. Pallet gross length is 120 cm. Pallet gross width is 80 cm. Products per pallet layer is 2 pc(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 36 months Carry in. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Security features | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection |
|---|---|
| Other features | 21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Option type | Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20 |
| Control panel | 0.67 inch with C2 Fine |
| Products per pallet layer (UK) | 2 pc(s) |
|---|---|
| Products per pallet (UK) | 16 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.03 m |
| Country of origin | Philippines |
| Products per pallet | 16 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.03 m |
| Warranty period | 3 year(s) |
| Power consumption | 388 Watt (Normal On-Mode), 266 Watt (Eco On-Mode), 450 Watt (Normal Peak-mode), 330 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
|---|
| Market positioning | Education |
|---|---|
| Product type | Short throw projector |
| Product colour | White |
| Placement | Ceiling, Desktop |
| Quantity per pack | 1 pc(s) |
|---|---|
| Batteries included | Yes |
| Remote control included | Yes |
| Power consumption (economy mode) | 266 W |
|---|---|
| Power consumption (typical) | 388 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (max) | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| AC adapter output voltage | 100 - 240 V |
| Width | 440 mm |
|---|---|
| Depth | 362 mm |
| Height | 151 mm |
| Weight | 9.2 kg |
| Package width | 505 mm |
|---|---|
| Package depth | 545 mm |
| Package height | 235 mm |
| Package weight | 13.3 kg |
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Interactive | No |
|---|---|
| Noise level (economic mode) | 26 dB |
| Preset modes | Cinema, Dynamic, Presentation |
| Noise level | 36 dB |
| Native aspect ratio | 16:10 |
|---|---|
| Contrast ratio (typical) | 5000000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| 3D | No |
| Password protection | Yes |
|---|
| Card reader integrated | No |
|---|
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Supported network protocols | HTTPS, SNMP, ESC/VP.net, PJLink |
| Apple AirPlay 2 support | Yes |
| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, HDMI (HDCP 2.3) (2x), Jack plug out, Near Field Communication (NFC), Apple AirPlay 2 |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 2.3 |
| HDCP | Yes |
| HDBaseT port | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| Wi-Fi | Yes |
| USB 2.0 ports quantity | 3 |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic, Natural, DICOM SIM, Presentation |
| RMS rated power | 10 W |
|---|
| Focus | Manual |
|---|---|
| Aperture range (F-F) | 1.7 - 2.1 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.7:1 |
| Throw ratio | 0.79 - 1.36:1 |
| Focal length range | 11.6 - 19.9 mm |
| Horizontal lens shift range | -20 - -20% |
| Vertical lens shift range | -50 - -50% |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Projector brightness | 7000 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Screen size compatibility | 1524 - 10160 mm (60 - 400") |
| Projection distance | 1.02 - 11.89 m |
| Projection distance (wide) | 1 - 7 m |
| Projection distance (tele) | 1.8 - 11.9 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4900 ANSI lumens |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
Warranty
36 months Carry in
