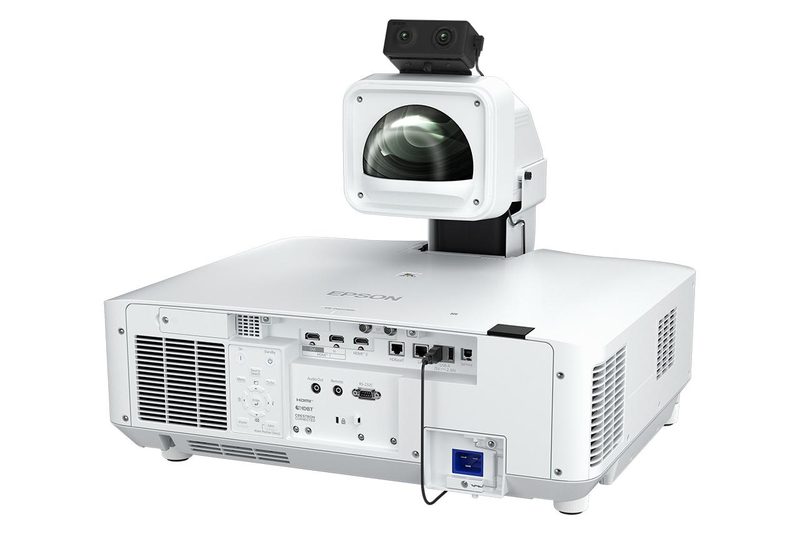

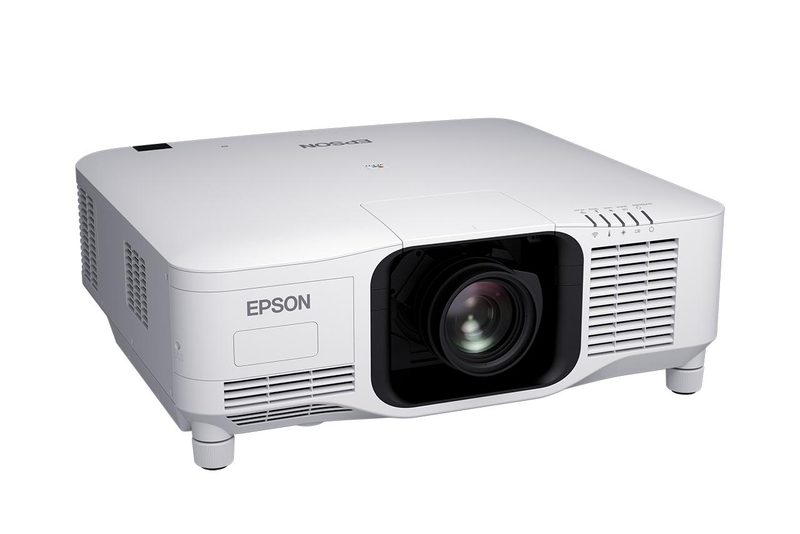

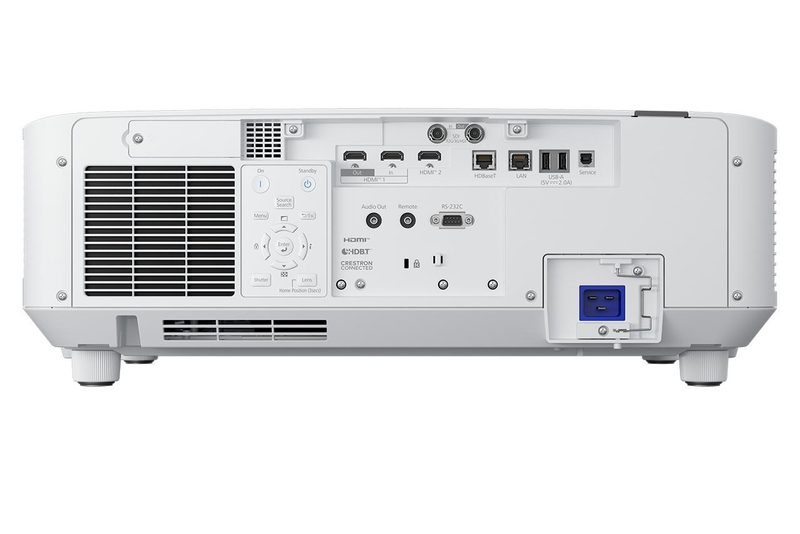

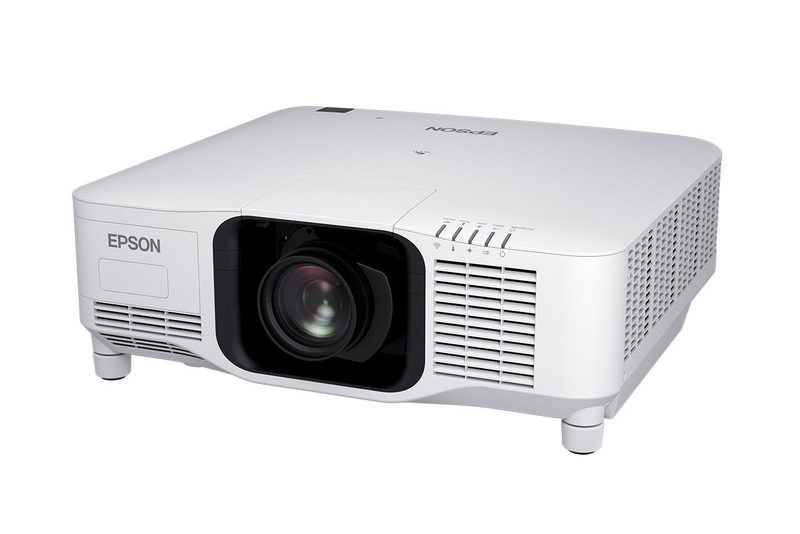

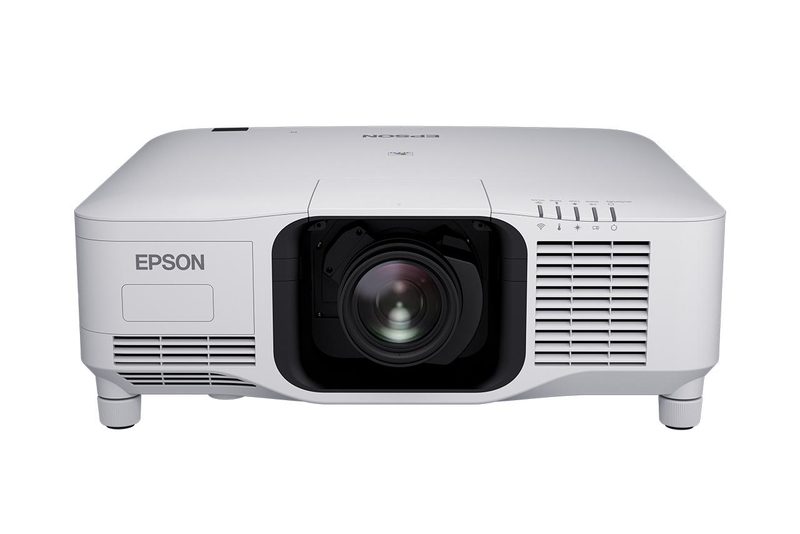

Epson EB-PQ2216W
EpsonModel V11HB04980
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Control panel lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
- Other features
- 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App
- Video colour modes
- BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
- Ethernet LAN data rates
- 10,100 Mbit/s
Overview
Epson EB-PQ2216W is a Epson projectors & screen with a power consumption of 1,003 Watt (Normal On-Mode), 1,114 Watt (Normal Peak-mode), 784 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) and a control panel of 1.04 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 1,003 Watt (Normal On-Mode), 1,114 Watt (Normal Peak-mode), 784 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby). Control panel is 1.04 inch with C2 Fine. Option type is Camera module, Ceiling mount, Wireless LAN unit. Pallet gross height is 2.19 m. Pallet gross length is 120 cm. Pallet gross width is 80 cm. Products per pallet layer is 1 pc(s). Products per pallet is 6 pc(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 36 months Carry in. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Security features | Kensington lock, Control panel lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection |
|---|---|
| Other features | 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Option type | Camera module, Ceiling mount, Wireless LAN unit |
| Control panel | 1.04 inch with C2 Fine |
| Products per pallet layer (UK) | 1 pc(s) |
|---|---|
| Products per pallet (UK) | 6 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.19 m |
| Products per pallet | 6 pc(s) |
| Products per pallet layer | 1 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.19 m |
| Power consumption | 1,003 Watt (Normal On-Mode), 1,114 Watt (Normal Peak-mode), 784 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
|---|
| Market positioning | Presentation |
|---|---|
| Product colour | White |
| Built-in display | No |
| Placement | Ceiling, Desktop, Floor, Flying frame, Wall |
| International Protection (IP) code | IPX5 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Batteries included | Yes |
| Remote control included | Yes |
| Bundled software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Power consumption (economy mode) | 784 W |
|---|---|
| Power consumption (typical) | 1114 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Width | 586 mm |
|---|---|
| Depth | 492 mm |
| Height | 218 mm |
| Weight | 29.2 kg |
| Package width | 720 mm |
|---|---|
| Package depth | 790 mm |
| Package height | 340 mm |
| Package weight | 38.4 kg |
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| On Screen Display (OSD) | Yes |
| Interactive | No |
|---|---|
| Noise level (economic mode) | 36 dB |
| Noise level | 44 dB |
| Native aspect ratio | 16:9 |
|---|---|
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Colour depth | 10 bit |
| 3D | No |
| Heat dissipation | 3788 BTU/h |
| Password protection | Yes |
|---|
| Card reader integrated | No |
|---|
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), USB content playback, Remote, 12G SDI Input, 12G SDI Output |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 3 |
| HDBaseT port | Yes |
| AC (power) in | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| USB 2.0 ports quantity | 2 |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Focus | Motorized |
|---|---|
| Zoom capability | Yes |
| Throw ratio | 0.34 - 7.16:1, Varies by lens |
| Focal length range | Varies by lens |
| Interchangeable lens | Yes |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Projector brightness | 16000 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Supported aspect ratios | 16:9, 21:9 |
| Smart projector | No |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 11200 ANSI lumens |
| Keystone correction, vertical | ±45° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 2.64 cm (1.04") |
| White light output | 16000 ANSI lumens |
| Colour light output | 16000 ANSI lumens |
Warranty
36 months Carry in
