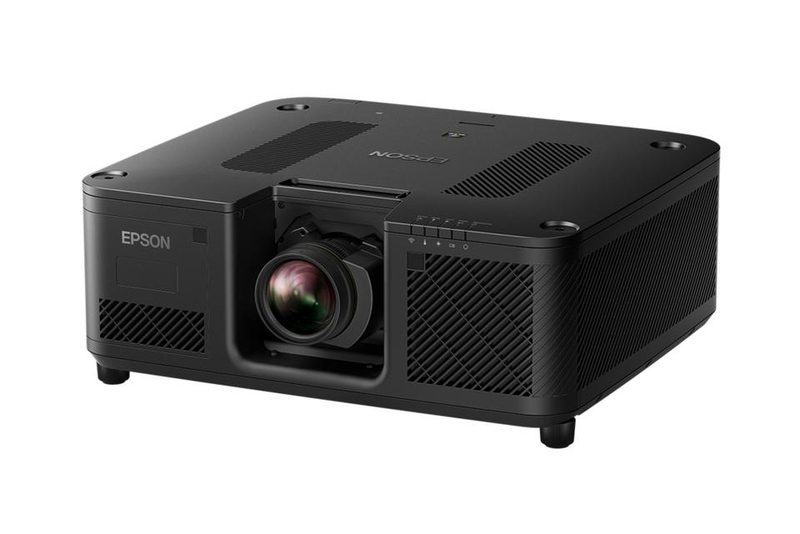

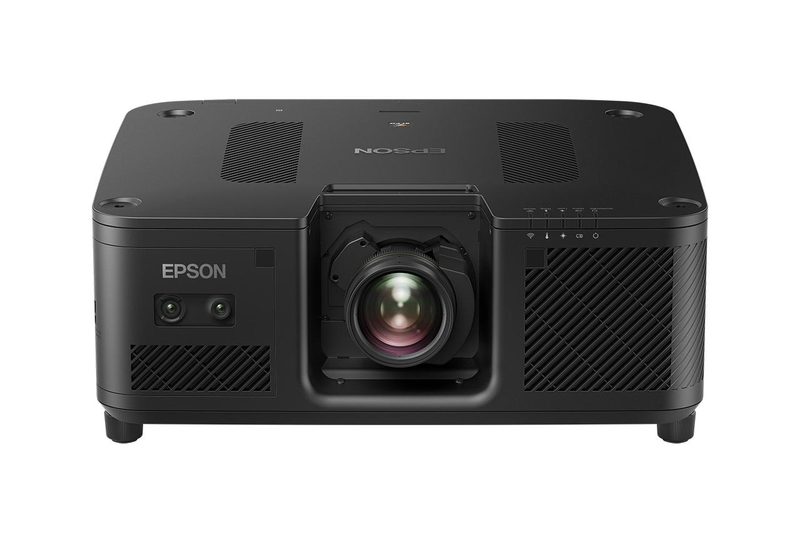

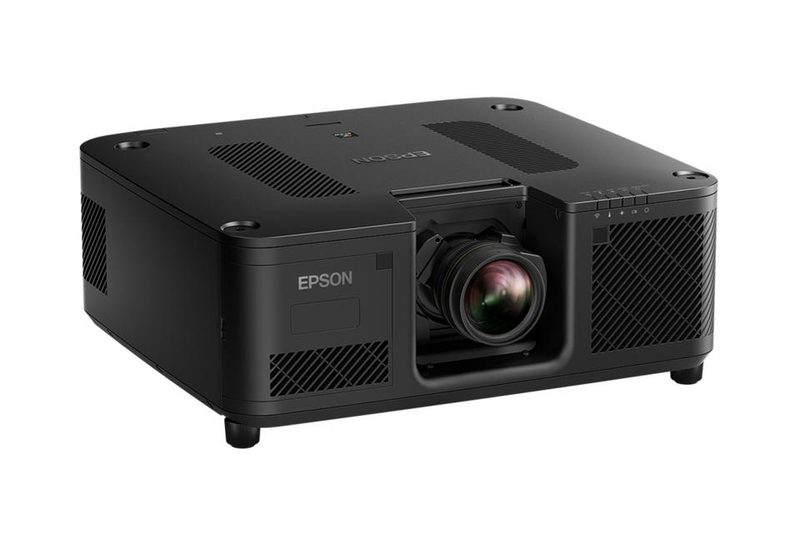

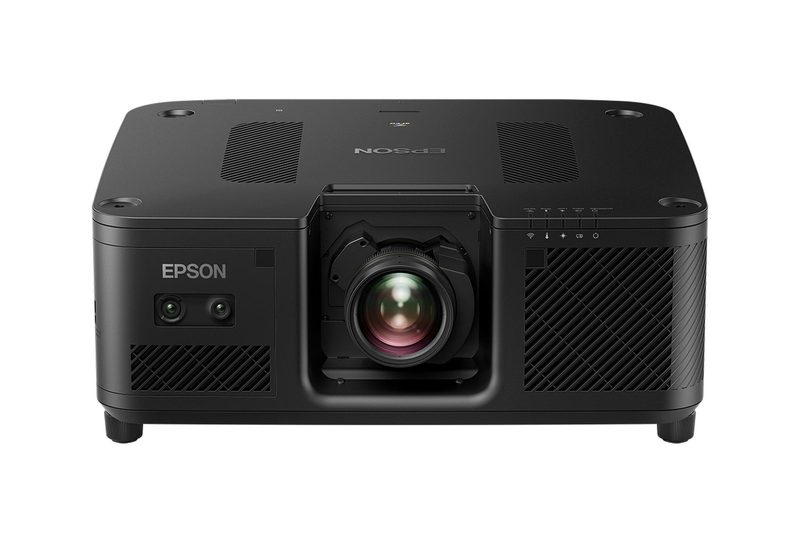

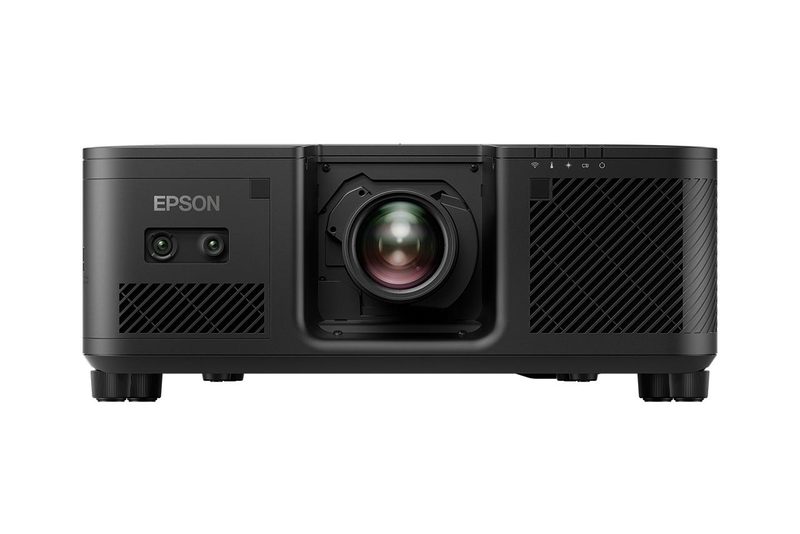

Epson EB-XQ2030B
EpsonModel V11HC01880





Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN security, Password protection
- Other features
- 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, CEC compatible, Daisy chain Multi-Projection, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Integrated camera for image calibration, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable
- Video colour modes
- BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
- Ethernet LAN data rates
- 10,100 Mbit/s
Overview
Epson EB-XQ2030B is a Epson projectors & screen with a power consumption of 1,895 Watt (Normal On-Mode), 1,180 Watt (Eco On-Mode), 2,090 Watt (Normal Peak-mode), 1,546 Watt (Eco Peak-Mode), 1 Watt (Energy saving standby) and a control panel of 1.04 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 1,895 Watt (Normal On-Mode), 1,180 Watt (Eco On-Mode), 2,090 Watt (Normal Peak-mode), 1,546 Watt (Eco Peak-Mode), 1 Watt (Energy saving standby). Control panel is 1.04 inch with C2 Fine. Supported network protocols is HTTPS, SNMP, ESC/VP.net, PJLink. Ethernet LAN data rates is 10,100 Mbit/s. Bundled software is Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool. Heat dissipation is 7106 BTU/h. Other features is 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, CEC compatible, Daisy chain Multi-Projection, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Integrated camera for image calibration, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable. Keystone correction, vertical is ±45°. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Security features | Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN security, Password protection |
|---|---|
| Other features | 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, CEC compatible, Daisy chain Multi-Projection, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Integrated camera for image calibration, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable |
| Video colour modes | BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Control panel | 1.04 inch with C2 Fine |
| Power consumption | 1,895 Watt (Normal On-Mode), 1,180 Watt (Eco On-Mode), 2,090 Watt (Normal Peak-mode), 1,546 Watt (Eco Peak-Mode), 1 Watt (Energy saving standby) |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Remote control included | Yes |
| Bundled software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Product colour | Black |
|---|---|
| Built-in display | No |
| Placement | Ceiling, Floor, Flying frame |
| Power consumption (economy mode) | 1180 W |
|---|---|
| Power consumption (typical) | 1895 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Width | 620 mm |
|---|---|
| Depth | 530 mm |
| Height | 205 mm |
| Weight | 34.4 kg |
| Package width | 760 mm |
|---|---|
| Package depth | 840 mm |
| Package height | 340 mm |
| Package weight | 45 kg |
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Noise level (economic mode) | 39 dB |
|---|---|
| Noise level | 48 dB |
| Native aspect ratio | 16:9 |
|---|---|
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| 3D | No |
| Heat dissipation | 7106 BTU/h |
| Password protection | Yes |
|---|
| Card reader integrated | No |
|---|
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | HTTPS, SNMP, ESC/VP.net, PJLink |
| Interface | USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), 12G SDI Input, 12G SDI Output, USB content playback, Remote |
|---|---|
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| Serial interface type | RS-232C |
| Wi-Fi | Yes |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Focus | Motorized |
|---|---|
| Zoom capability | Yes |
| Throw ratio | 0.34 - 11.00:1, Varies by lens |
| Focal length range | Varies by lens |
| Interchangeable lens | Yes |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Projector brightness | 30000 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 21000 ANSI lumens |
| Keystone correction, vertical | ±45° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 2.64 cm (1.04") |
