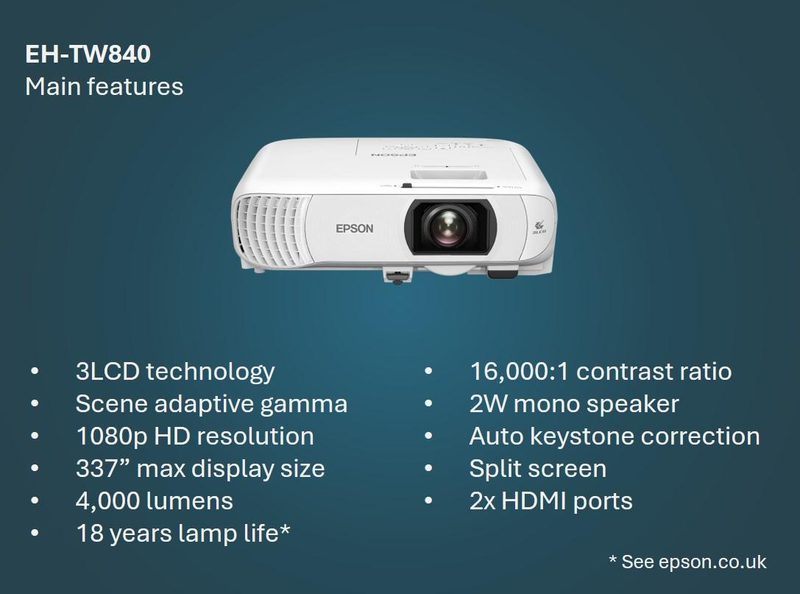

Epson EH-TW840
EpsonModel V11HB63040
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock, Padlock, Security cable hole, Password protection
- Other features
- A/V mute, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function
- Video colour modes
- Cinema, Dynamic, Natural, Vivid
- Option type
- Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Wireless LAN unit
Overview
Epson EH-TW840 is a Epson projectors & screen with a power consumption of 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) and a control panel of 0.62 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby). Control panel is 0.62 inch with C2 Fine. Option type is Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Wireless LAN unit. Country of origin is Philippines. Supported network protocols is IPv6, SNMP. Noise level (standby) is 28 dB. Mobile app support is Yes. Other features is A/V mute, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 24 months Carry in, Lamp: 36 months or 3,000 h. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Security features | Kensington lock, Padlock, Security cable hole, Password protection |
|---|---|
| Other features | A/V mute, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Option type | Air filter, Ceiling mount, Document camera, Safety wire set, Soft carry case, Wireless LAN unit |
| Control panel | 0.62 inch with C2 Fine |
| Country of origin | Philippines |
|---|
| Market positioning | Home cinema |
|---|---|
| Product colour | White |
| Built-in display | No |
| Placement | Ceiling, Desktop |
| Quantity per pack | 1 pc(s) |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Power consumption (economy mode) | 181 W |
|---|---|
| Power consumption (typical) | 284 W |
| Power consumption (PowerSave) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Width | 302 mm |
|---|---|
| Depth | 252 mm |
| Height | 92 mm |
| Weight | 2.7 kg |
| Package width | 350 mm |
|---|---|
| Package depth | 375 mm |
| Package height | 165 mm |
| Package weight | 3.81 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 41 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Interactive | No |
|---|---|
| Noise level (economic mode) | 28 dB |
| Noise level | 37 dB |
| Native aspect ratio | 16:9 |
|---|---|
| Contrast ratio (typical) | 16000:1 |
| Contrast ratio (dynamic) | 16000:1 |
| Vertical scan range | 192 - 240 Hz |
| 3D | No |
| Password protection | Yes |
|---|
| Noise level (standby) | 28 dB |
|---|---|
| Power consumption | 284 Watt (Normal On-Mode), 181 Watt (Eco On-Mode), 332 Watt (Normal Peak-mode), 231 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby) |
| Smart TV | No |
|---|---|
| Ethernet LAN | No |
| Supported network protocols | IPv6, SNMP |
| Interface | USB 2.0 Type B (Service Only), HDMI in (2x), USB 2.0-A, Wireless LAN IEEE 802.11b/g/n(Wi-Fi 4)/k/v/r (optional) |
|---|---|
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Focus | Manual |
|---|---|
| Aperture range (F-F) | 1.49 - 1.72 |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.21 - 1.45:1 |
| Focal length range | 16.9 - 20.28 mm |
| Light source type | Lamp |
|---|---|
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
| Projector brightness | 4000 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Smart projector | No |
| Screen size compatibility | 863.6 - 8559.8 mm (34 - 337") |
| Projection distance | 1.6 - 1.92 m |
| Projection distance (wide) | 1.6 - 1.92 m |
| Projection distance (tele) | 1.6 - 1.92 m |
| Number of colours | 16.7 million colours |
| Projector brightness (economic mode) | 2200 ANSI lumens |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 1.57 cm (0.62") |
| Card reader integrated | No |
|---|---|
| Mobile app support | Yes |
| RMS rated power | 2 W |
|---|---|
| Audio system | Standard |
| Number of built-in speakers | 1 |
Warranty
24 months Carry in, Lamp: 36 months or 3,000 h
