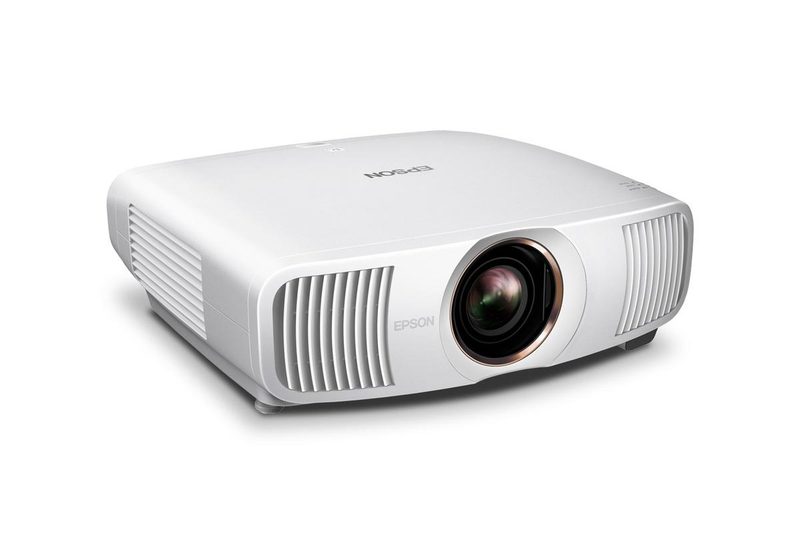

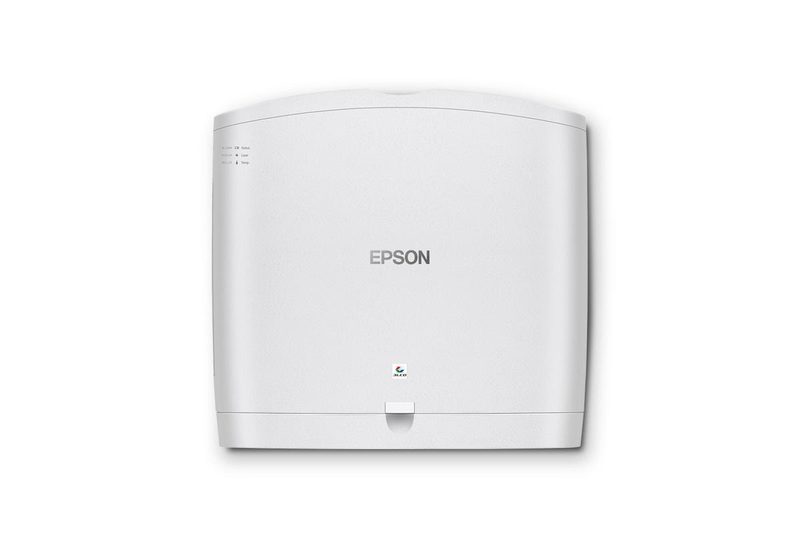

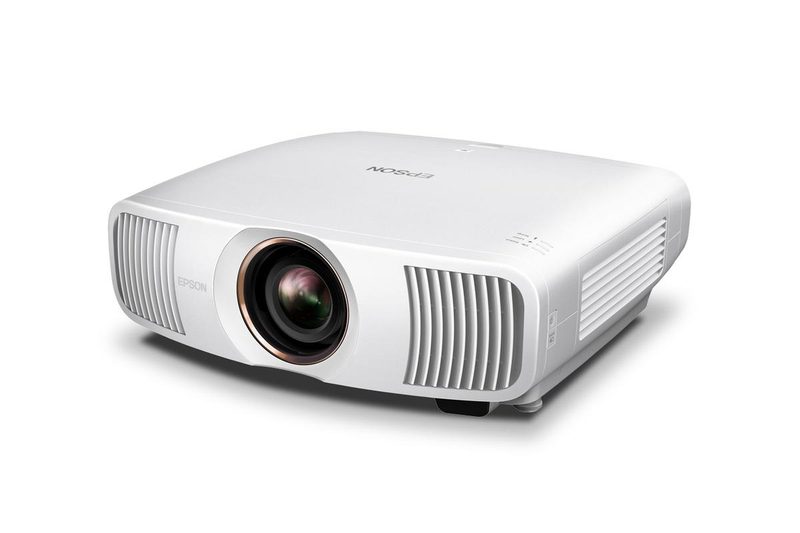

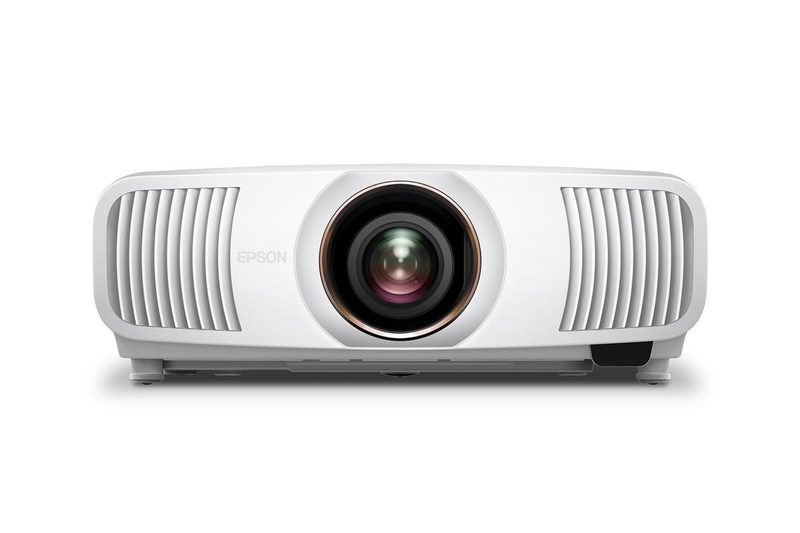

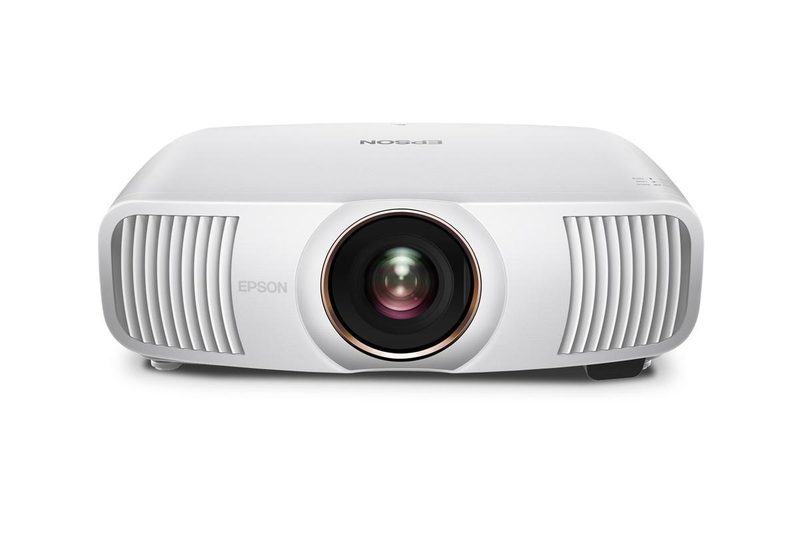

Epson Pro Cinema EH-QB1000W
EpsonModel V11HB23080
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Security features
- Kensington lock
- Other features
- Direct Power on/off, Frame interpolation, Horizontal and vertical keystone correction, ISF certification, Lens position memory, Long light source life, Quick Corner, Super resolution
- Video colour modes
- Cinema, Dynamic, Natural, Vivid
- Ethernet LAN (RJ-45) ports
- 1
Overview
Epson Pro Cinema EH-QB1000W is a Epson projectors & screen with a power consumption of 285 Watt (Normal On-Mode), 158 Watt (Eco On-Mode), 328 Watt (Normal Peak-mode), 200 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) and a control panel of 0.74 inch with C2 Fine. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Power consumption is 285 Watt (Normal On-Mode), 158 Watt (Eco On-Mode), 328 Watt (Normal Peak-mode), 200 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby). Control panel is 0.74 inch with C2 Fine. Option type is Air filter, Ceiling mount, Safety wire set, Suspension adapter. Pallet gross height is 2.11 m. Pallet gross length is 120 cm. Pallet gross width is 80 cm. Products per pallet layer is 2 pc(s). Products per pallet is 14 pc(s). Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 60 months Carry in or 12,000 h. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Security features | Kensington lock |
|---|---|
| Other features | Direct Power on/off, Frame interpolation, Horizontal and vertical keystone correction, ISF certification, Lens position memory, Long light source life, Quick Corner, Super resolution |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
| Ethernet LAN (RJ-45) ports | 1 |
| Option type | Air filter, Ceiling mount, Safety wire set, Suspension adapter |
| Control panel | 0.74 inch with C2 Fine |
| Products per pallet layer (UK) | 2 pc(s) |
|---|---|
| Products per pallet (UK) | 14 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.11 m |
| Country of origin | Philippines |
| Products per pallet | 14 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.11 m |
| Power consumption | 285 Watt (Normal On-Mode), 158 Watt (Eco On-Mode), 328 Watt (Normal Peak-mode), 200 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
|---|
| Market positioning | Home cinema |
|---|---|
| Product colour | White |
| Built-in display | No |
| Placement | Ceiling, Desktop |
| Quantity per pack | 1 pc(s) |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Width | 520 mm |
|---|---|
| Depth | 447 mm |
| Height | 193 mm |
| Weight | 12.8 kg |
| Package width | 555 mm |
|---|---|
| Package depth | 700 mm |
| Package height | 280 mm |
| Package weight | 17.6 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Enhanced Audio Return Channel (eARC) | Yes |
|---|
| Interactive | No |
|---|---|
| Noise level (economic mode) | 22 dB |
| Noise level | 32 dB |
| Air filter | Yes |
| 2D/3D frequency image | 384 / 480 Hz |
| Native aspect ratio | 16:9 |
|---|---|
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080p, 2160p |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| Vertical scan range | 384 - 480 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| 3D | No |
| Heat dissipation | 1115.2 BTU/h |
| Card reader integrated | No |
|---|
| Smart TV | No |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | ESC/VP.net, PJLink |
| Interface | USB 2.0 (2x), USB 2.0 Mini-B, RS-232C, Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x) |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| HDCP | Yes |
| AC (power) in | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| Serial interface type | RS-232C |
| Mini-USB 2.0 ports quantity | 1 |
| Wi-Fi | No |
| USB 2.0 ports quantity | 1 |
| Audio Return Channel (ARC) | Yes |
| Power consumption (typical) | 285 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Analog signal format system | Not supported |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic, Natural, Vivid |
| Focus | Motorized |
|---|---|
| Aperture range (F-F) | 2 - 3 |
| Zoom capability | Yes |
| Zoom ratio | 2.1:1 |
| Throw ratio | 1.35 - 2.84:1 |
| Focal length range | 22.5 - 46.7 mm |
| Horizontal lens shift range | -47.1 - -47.1% |
| Vertical lens shift range | -96.3 - -96.3% |
| Lens position memory | 10 |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 20000 h |
| Projector brightness | 3300 ANSI lumens |
|---|---|
| Projection technology | 3LCD |
| Projector brightness | 3300 ISO lumens |
| Projector native resolution | UHD 4K (3840x2160) |
| Supported aspect ratios | 1.9:1, 3:2, 4:3, 5:4, 21:9 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Projection distance | 3 - 6.3 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, vertical | ±30° |
| Keystone correction, horizontal | ±30° |
| Matrix size | 1.88 cm (0.74") |
Warranty
60 months Carry in or 12,000 h
