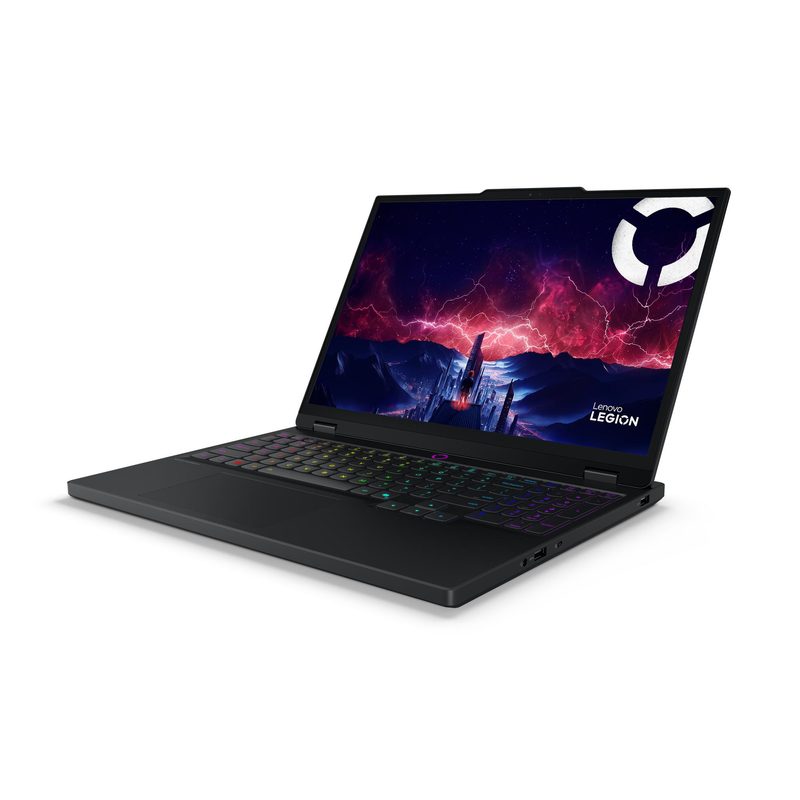

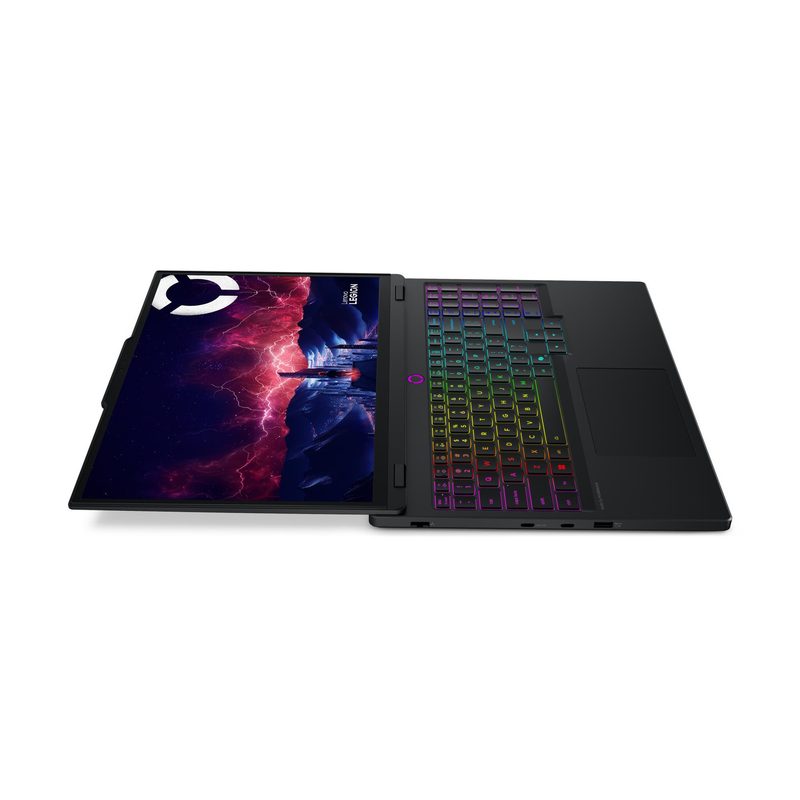

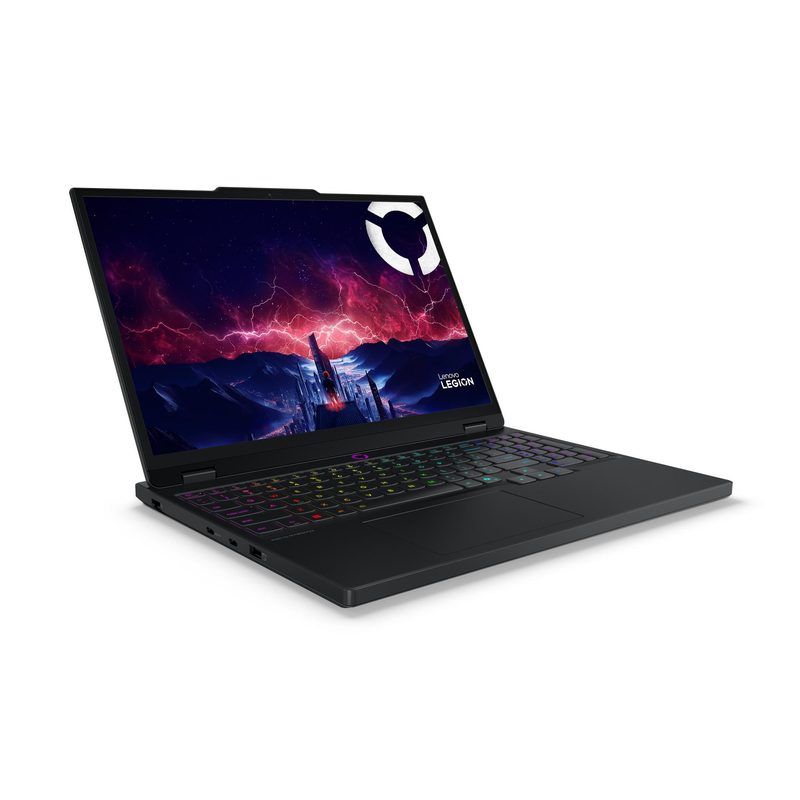

Lenovo Legion 5 15AHP10 AMD Ryzen™ 7 260 Laptop 38.4 cm (15.1") WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Windows 11 Home Black English
LenovoModel 83M00002US
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Bundled software
- Office Trial + Lenovo AI Now
- AC adapter included
- Yes
- Compliance certificates
- RoHS
- Ethernet LAN data rates
- 100,1000 Mbit/s
Overview
Lenovo Legion 5 15AHP10 AMD Ryzen™ 7 260 Laptop 38.4 cm (15.1") WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Windows 11 Home Black English is a Lenovo laptop with a certification of ErP Lot 6/26 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution) and a usb sleep-and-charge ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is ErP Lot 6/26 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution). USB Sleep-and-Charge ports is 1. USB Sleep-and-Charge is Yes. Maximum shipping altitude is 3048 m. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 100,1000 Mbit/s. Bundled software is Office Trial + Lenovo AI Now. Compliance certificates is RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 1-year, Courier or Carry-in. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Bundled software | Office Trial + Lenovo AI Now |
|---|
| AC adapter included | Yes |
|---|---|
| Compliance certificates | RoHS |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | ErP Lot 6/26 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution) |
| Sustainability certificates | ENERGY STAR |
|---|
| Height (front) | 2 cm |
|---|---|
| Height (rear) | 2.15 cm |
| Width | 344.9 mm |
| Depth | 255.3 mm |
| Weight | 1.9 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
| Fingerprint reader | No |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Battery life (max) | 5.4 h |
|---|---|
| AC adapter power | 245 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C required charging power (min) | 65 W |
| USB Type-C required charging power (max) | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Battery capacity | 80 Wh |
|---|---|
| Continuous video playback time (max) | 10.9 h |
| Battery technology | Lithium-Ion (Li-Ion) |
| Fast charging | Yes |
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | English |
| Trial software | Office |
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 780M |
| Pointing device | Touchpad |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 24-zone RGB |
| Keyboard language | English |
| Copilot key | Yes |
| Card reader integrated | No |
|---|---|
| Motherboard chipset | AMD SoC |
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 0 |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
| Mobile network connection | No |
|---|---|
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| WWAN | Not installed |
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Webcam kill switch |
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Harman Kardon |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Optical drive type | No |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Neural processor unit (NPU) | AMD Ryzen AI |
|---|---|
| Total processor performance up to | 38 TOPs |
| NPU performance up to | 16 TOPs |
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 200 Series |
| Processor model | 260 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| L3 cache | 16 MB |
| L2 cache | 8 MB |
| Processor base power | 35 W |
| Maximum turbo power | 54 W |
| Display diagonal | 38.4 cm (15.1") |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | OLED |
| Display surface | Gloss |
| Contrast ratio (typical) | 100000:1 |
| Maximum refresh rate | 165 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 600, Dolby Vision |
| Colour gamut | 100% |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| RGB colour space | DCI-P3 |
| Market positioning | Gaming |
|---|---|
| Colour name | Eclipse black |
| Product type | Laptop |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
Warranty
1-year, Courier or Carry-in
