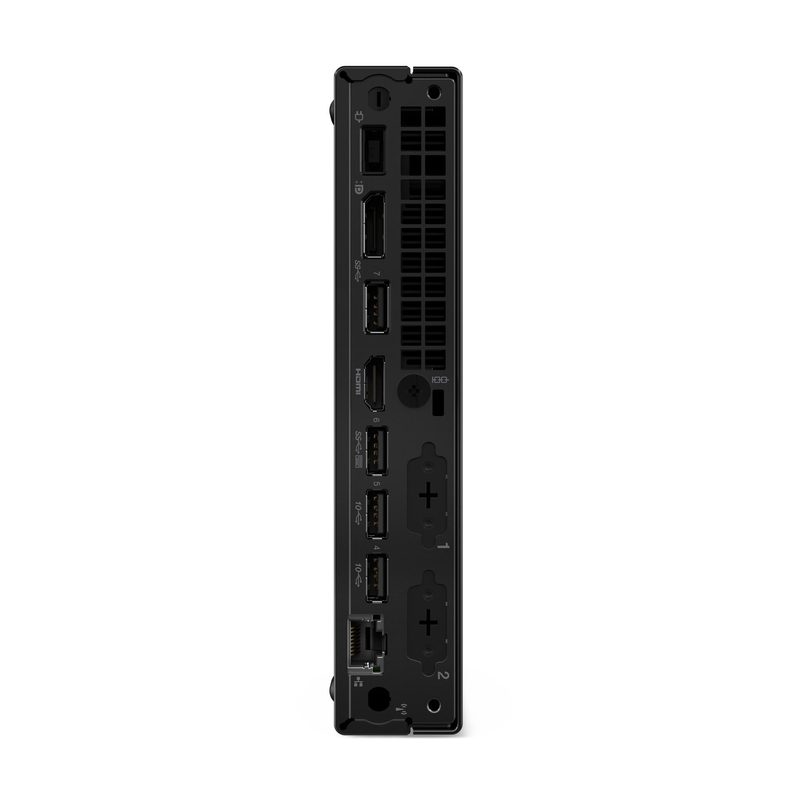

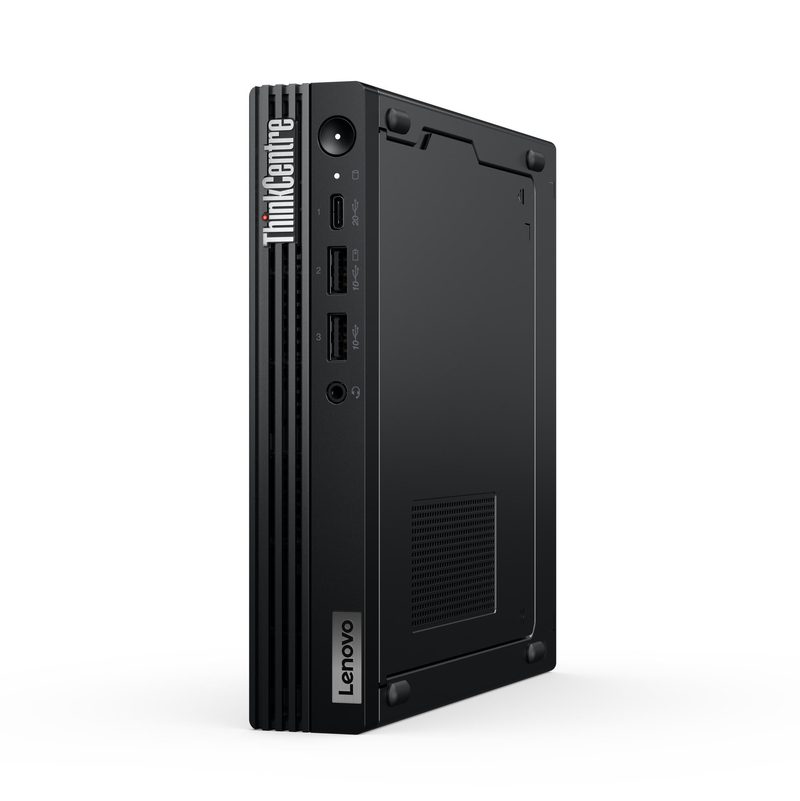

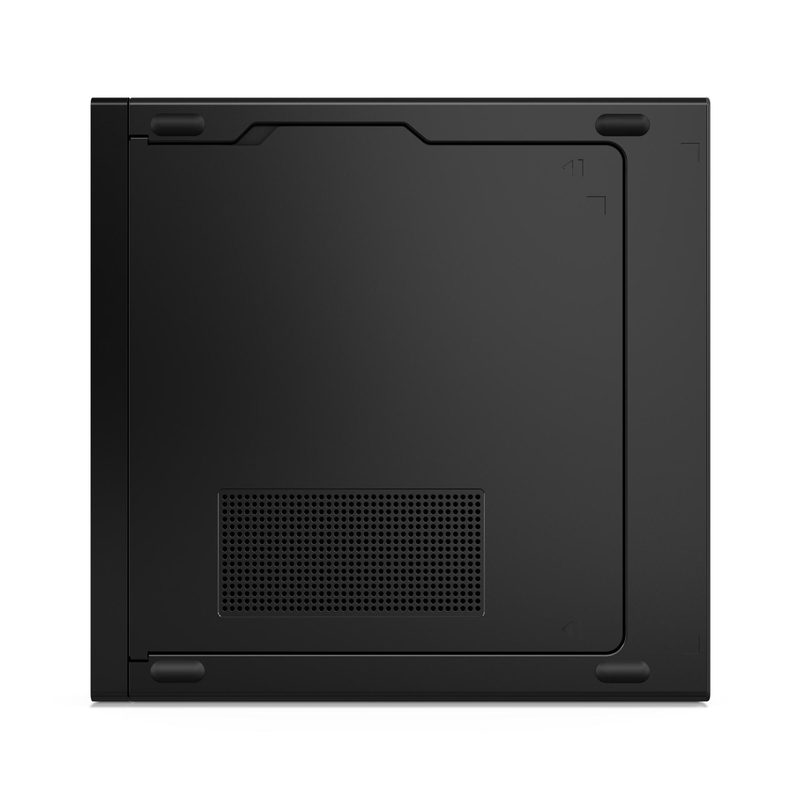

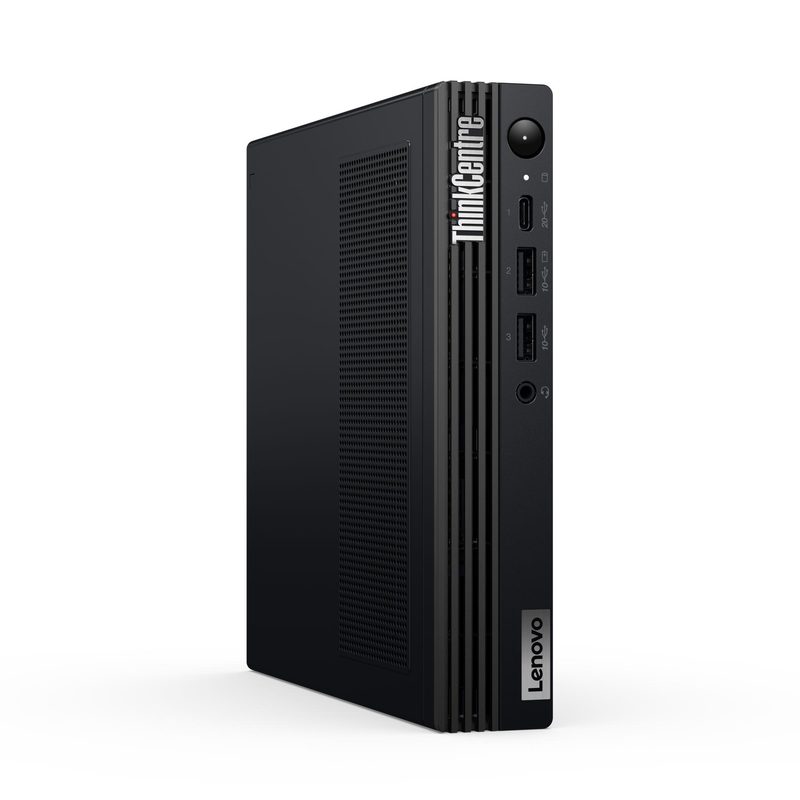

Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
LenovoModel 12TH001JPB
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- ErP Lot 3 RoHS compliant TCO Certified 9.0 MIL-STD-810H
- Keyboard connectivity
- Wired
Overview
Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black is a Lenovo desktops & all-in-one with a certification of ErP Lot 3 RoHS compliant TCO Certified 9.0 MIL-STD-810H and a ethernet lan data rates of 100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is ErP Lot 3 RoHS compliant TCO Certified 9.0 MIL-STD-810H. Ethernet LAN data rates is 100,1000 Mbit/s. Volume is 1 L. Power supply is 230 W. Processor base power is 65 W. Maximum turbo power is 219 W. Memory channels is Dual-channel. Optical drive type is No. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3-year, Onsite + 3Y Premier Support TC DT/AIO WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects). Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN data rates | 100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | ErP Lot 3 RoHS compliant TCO Certified 9.0 MIL-STD-810H |
| Keyboard connectivity | Wired |
|---|
| Mouse connectivity | Wired |
|---|---|
| Keyboard included | Yes |
| Mouse included | Yes |
| Ethernet LAN | Yes |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Volume | 1 L |
| Package width | 250 mm |
|---|---|
| Package depth | 490 mm |
| Package height | 128 mm |
| Package weight | 3.4 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Built-in speaker(s) | Yes |
|---|
| Power supply | 230 W |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, SSD, Supervisor |
| Display included | No |
|---|
| Market positioning | Everyday |
|---|---|
| Colour name | Black |
| Chassis type | Mini PC |
| Product type | Mini PC |
| Product colour | Black |
| DVI port | Yes |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 0 |
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system language | French |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Card reader integrated | No |
|---|---|
| Motherboard chipset | Intel Q670 |
| Number of speakers | 1 |
|---|
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Efficient cores | 12 |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Performance-core base frequency | 2.1 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Placement supported | Horizontal/Vertical |
|---|
| Audio chip | Realtek ALC233 |
|---|---|
| Audio system | High Definition Audio |
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
Warranty
3-year, Onsite + 3Y Premier Support TC DT/AIO WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
