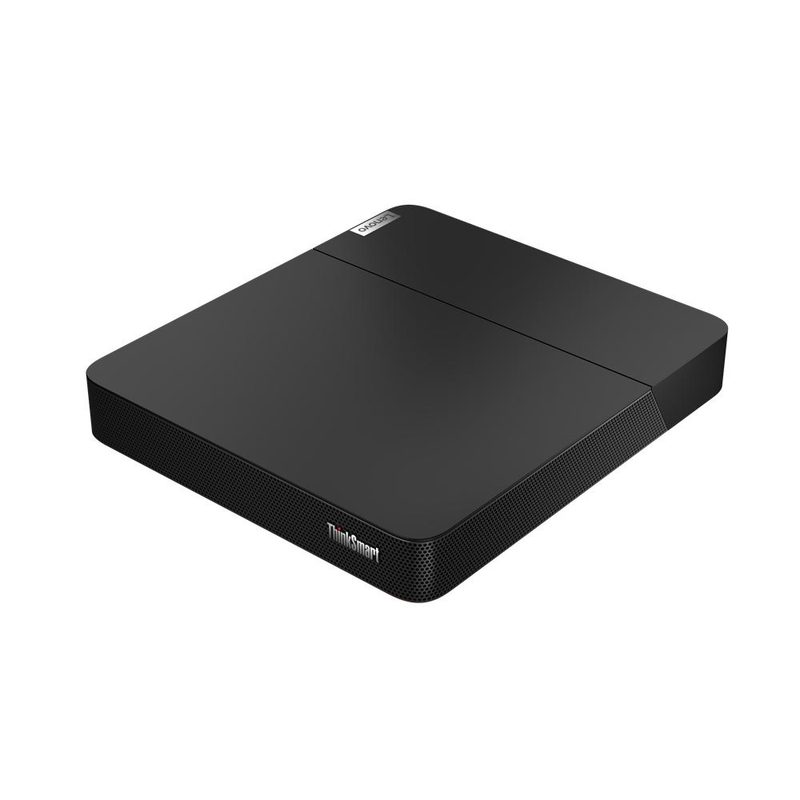

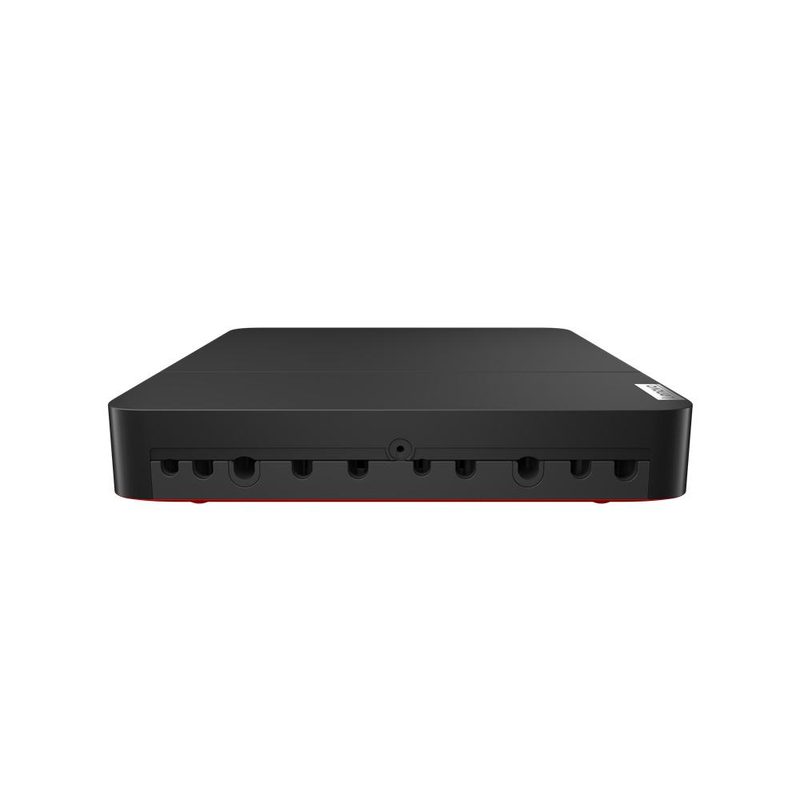

Lenovo ThinkSmart Core for Logitech Intel® Core™ i5 i5-1145G7E 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black, Red
LenovoModel 11RXS00912
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- VOC
Overview
Lenovo ThinkSmart Core for Logitech Intel® Core™ i5 i5-1145G7E 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black, Red is a Lenovo desktops & all-in-one with a certification of VOC and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is VOC. Ethernet LAN data rates is 10,100,1000 Mbit/s. Compliance certificates is RoHS. Power supply is 90 W. Memory channels is Dual-channel. Intel Trusted Execution Technology is Yes. Intel VT-x with Extended Page Tables (EPT) is Yes. Idle States is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | VOC |
| Ethernet LAN | Yes |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Width | 226 mm |
|---|---|
| Depth | 200 mm |
| Height | 37.5 mm |
| Weight | 1.1 kg |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| VESA mounting | Yes |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in speaker(s) | No |
|---|
| Power supply | 90 W |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Display included | No |
|---|
| Chassis type | Mini PC |
|---|---|
| Product type | Mini PC |
| Product colour | Black, Red |
| Intel Trusted Execution Technology | Yes |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| CPU configuration (max) | 1 |
| HDMI ports quantity | 2 |
|---|---|
| HDMI version | 1.4 |
| Thunderbolt 3 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB 2.0 ports quantity | 0 |
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
|---|---|
| Motherboard chipset | Intel SoC |
| Audio system | High Definition Audio |
|---|
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1145G7E |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 1.5 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1.1 GHz |
