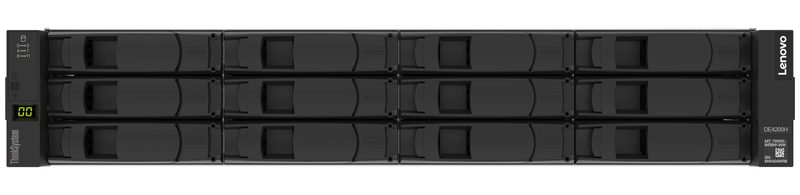

Lenovo ThinkSystem DE4200H 2U12 disk array Rack (2U) Black
LenovoModel 7DCAA002EA
Available on 14 day lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- RJ-45 ports quantity
- 1
- Width
- 447 mm
- Depth
- 536 mm
- Height
- 87 mm
Overview
Lenovo ThinkSystem DE4200H 2U12 disk array Rack (2U) Black is a Lenovo workstations & server with a rj-45 ports quantity of 1 and a data transfer rate of 12 Gbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
RJ-45 ports quantity is 1. Data transfer rate is 12 Gbit/s. Weight is 29 kg. Height is 87 mm. Depth is 536 mm. Width is 447 mm. Hot-swap drive bays is Yes. Number of storage drives supported is 12. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 12-month warranty against manufacturing defects.. Typical lead time is 14 working days from order. In the box: 1 × Lenovo ThinkSystem DE4200H 2U12 disk array Rack (2U) Black. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| RJ-45 ports quantity | 1 |
|---|
| Width | 447 mm |
|---|---|
| Depth | 536 mm |
| Height | 87 mm |
| Weight | 29 kg |
| Operating temperature (T-T) | 10 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3050 m |
| Supported storage drive interfaces | SAS |
|---|---|
| RAID levels | 0, 1, 3, 5, 6, 10 |
| LED indicators | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|---|
| Power supply unit (PSU) capacity | 913 W |
| Redundant power supply (RPS) support | Yes |
| Hot-swap PSU | Yes |
| Maximum number of controllers supported | 2 |
|---|---|
| Cache size (max) | 64 GB |
| Maximum number of hosts supported | 256 |
| Chassis type | Rack (2U) |
|---|---|
| Device class | Small & Medium Business |
| Product colour | Black |
| Built-in display | Yes |
| Serial interface type | RJ-45, USB C |
|---|---|
| Host ports | 12 |
| Data transfer rate | 12 Gbit/s |
| Maximum supported storage capacity | 1470000 TB |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 12 |
| Hot-swap drive bays | Yes |
Warranty
12-month warranty against manufacturing defects.
