TP-LinkModel TL-WA701ND

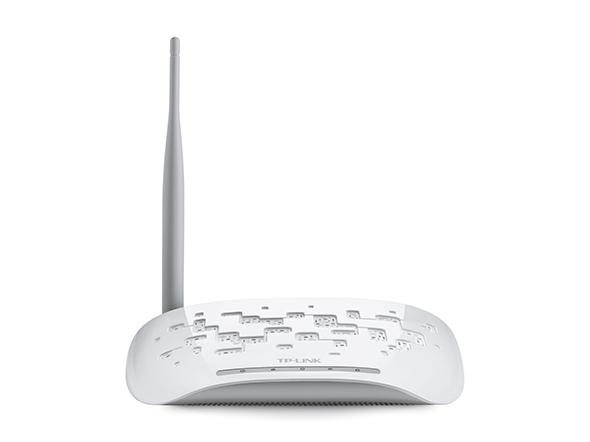

TP-LINK 150MBPS WIRELESS N ACCESS POINT TL-WA701ND
In stock
TP-LINK 150MBPS WIRELESS N ACCESS POINT TL-WA701ND
At a glance
- AC adapter included
- Yes
- Compatible operating systems
- Windows 98SE, NT, 2000, XP, Vista, 7 MAC OS NetWare UNIX, Linux
- Internal
- No
- Ethernet LAN data rates
- 10,100 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- RoHS, FCC
Request a quote for pricing
Answered within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, SON certified. Quotes answered within one business day.
Overview
TP-LINK 150MBPS WIRELESS N ACCESS POINT TL-WA701ND
Specifications
| AC adapter included | Yes |
|---|---|
| Compatible operating systems | Windows 98SE, NT, 2000, XP, Vista, 7 MAC OS NetWare UNIX, Linux |
| Internal | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | RoHS, FCC |
| CD manual | Yes |
|---|
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 1 |
| MAC address filtering | Yes |
|---|
| Product colour | White |
|---|---|
| Placement | Table |
| Reset button | Yes |
|---|
| Output current | 0.6 A |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 9 V |
| Cables included | LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | No |
| Maximum data transfer rate | 150 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Maximum indoor range | 30 m |
| Width | 181 mm |
|---|---|
| Depth | 125 mm |
| Height | 36 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Receiver sensitivity | 135M: -69dBm@10% PER 54M: -73dBm@10% PER 11M: -85dBm@8% PER 6M: -89dBm@10% PER 1M: -90dBm@8% PER |
| USB 2.0 ports quantity | 0 |
|---|
| Frequency band | 2.4 - 2.4835 GHz |
|---|
Warranty
3 year limited warranty
