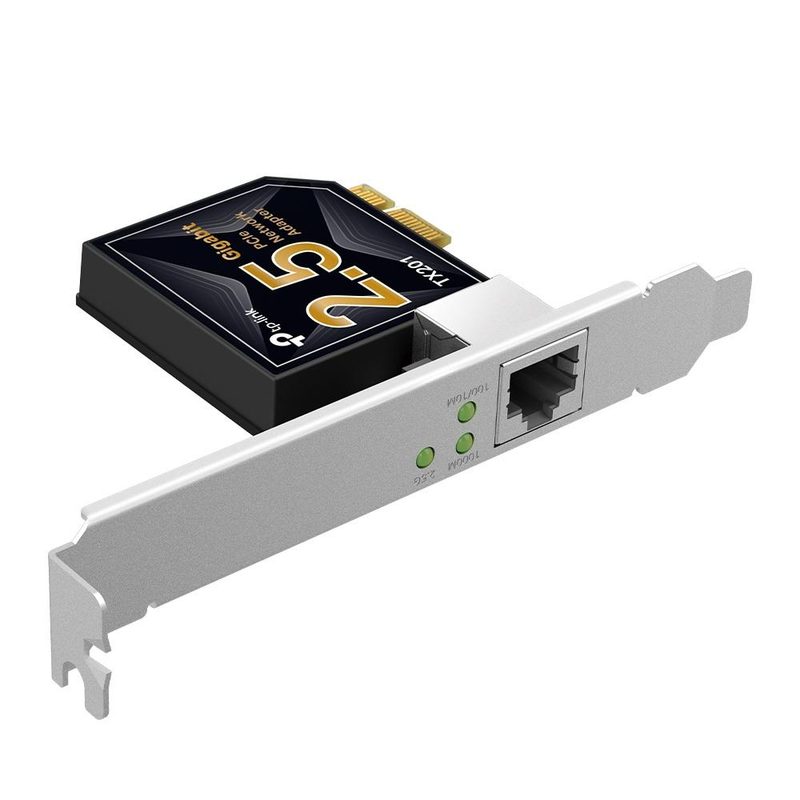

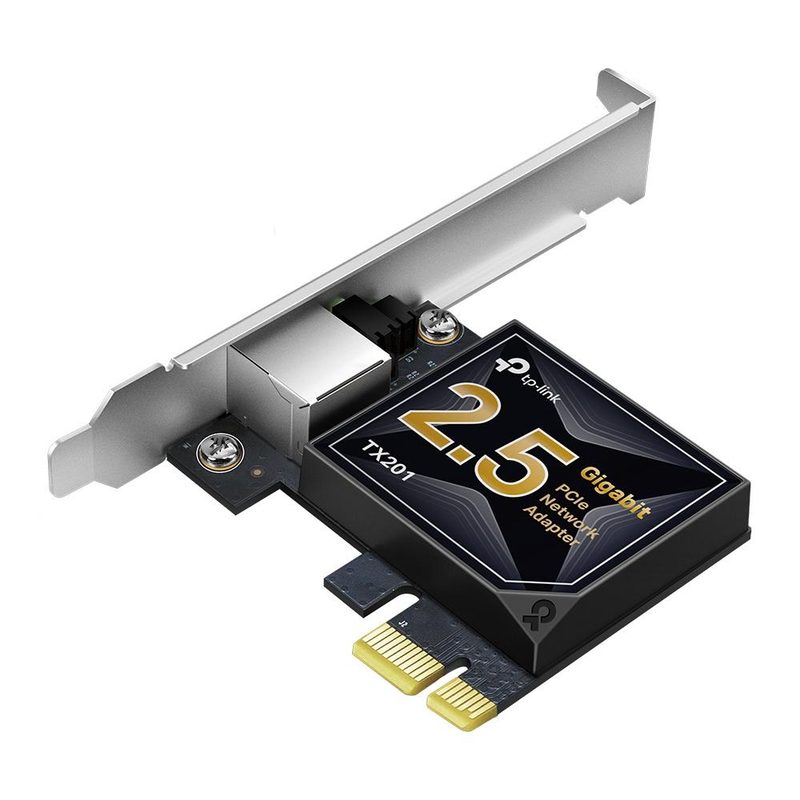

TP-Link 2.5 Gigabit PCIe Network Adapter
TP-LinkModel TX201(UN)
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS, Federal Communications Commission (FCC), CE
- Internal
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link 2.5 Gigabit PCIe Network Adapter is a TP-Link switches & adapter with a sustainability compliance of Yes and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000,2500 Mbit/s. Compliance certificates is RoHS, Federal Communications Commission (FCC), CE. Quick installation guide is Yes. Internal is Yes. Mounting brackets included is Yes. Full duplex is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
|---|---|
| Internal | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Sustainability compliance | Yes |
|---|
| Resource CD | Yes |
|---|---|
| Quick installation guide | Yes |
| Maximum data transfer rate | 2500 Mbit/s |
|---|---|
| Host interface | PCI Express |
| Width | 120.8 mm |
|---|---|
| Depth | 21.5 mm |
| Height | 98.2 mm |
| Package width | 201.5 mm |
|---|---|
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 170 g |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Component for | PC/Laptop |
|---|---|
| Product colour | Black, Grey |
| LED indicators | Activity, Link |
|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Interface | Ethernet |
|---|---|
| Connectivity technology | Wired |
| PCI version | 2.1 |
Warranty
3 year limited warranty
