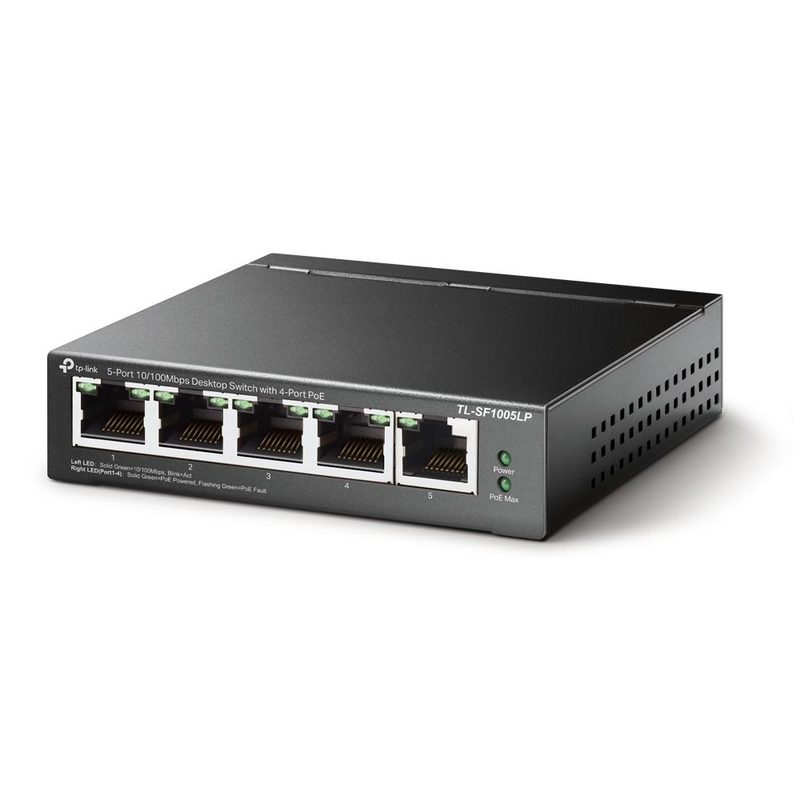

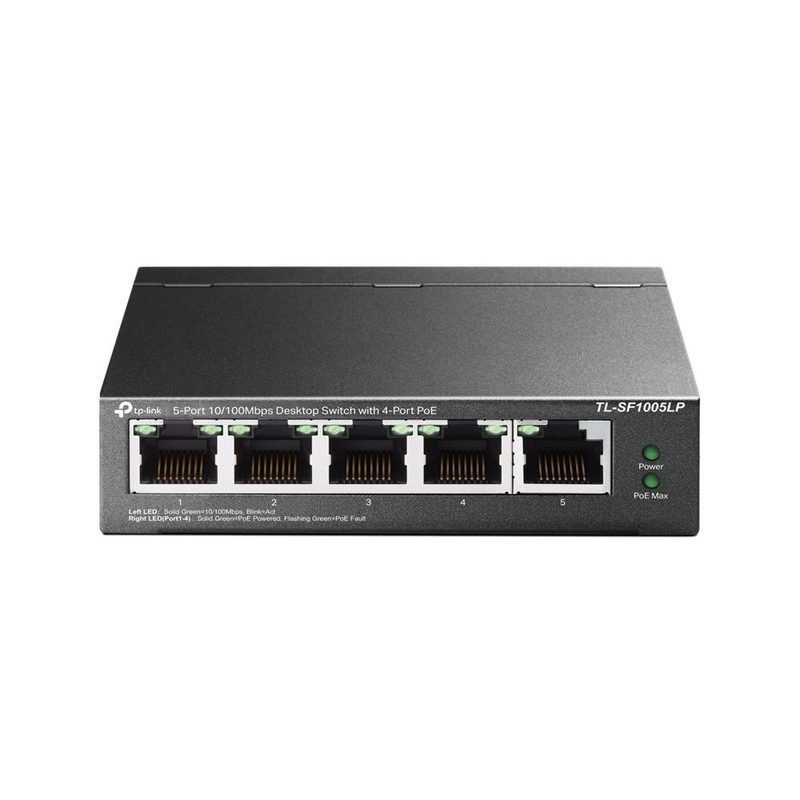

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TP-LinkModel TL-SF1005LP(UN)
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- AC adapter included
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Switch type
- Unmanaged
Overview
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is a TP-Link switches & adapter with a sustainability compliance of Yes and a harmonized system (hs) code of 85176990. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Harmonized System (HS) code is 85176990. Fanless is Yes. User guide is Yes. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Heat dissipation is 160.27 BTU/h. Switch type is Unmanaged. Flow control support is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Switch type | Unmanaged |
| User guide | Yes |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | No |
| Sustainability compliance | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 100 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
| Package width | 131 mm |
|---|---|
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 740 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Heat dissipation | 160.27 BTU/h |
|---|
| Power over Ethernet (PoE) ports quantity | 4 |
|---|---|
| Total Power over Ethernet (PoE) budget | 41 W |
| Power consumption (max) | 47 W |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.81 A |
| Power supply included | Yes |
| Power source | DC/PoE |
| Input voltage | 53.5 V |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
