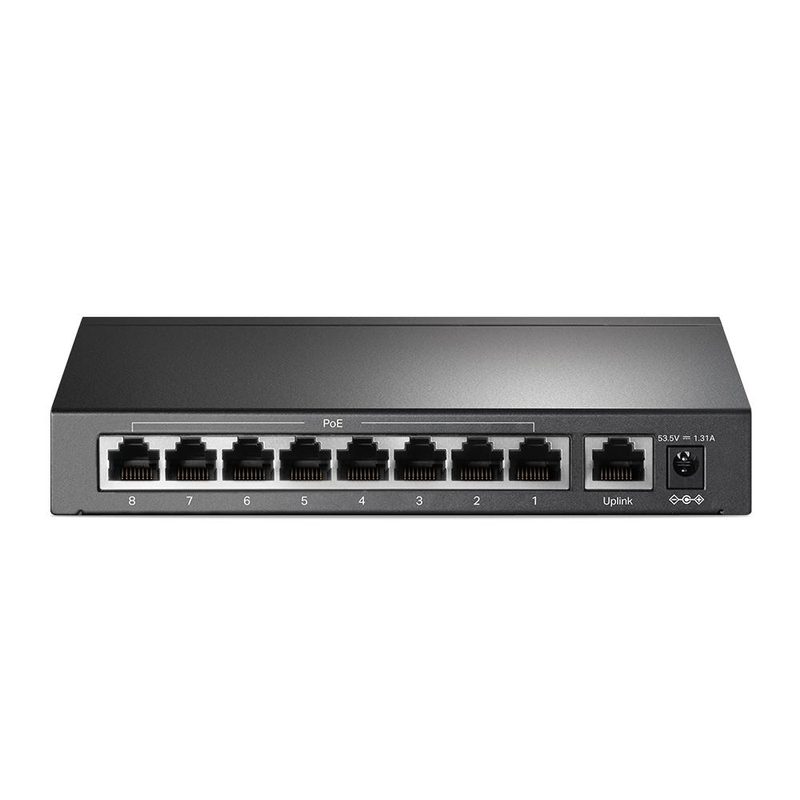

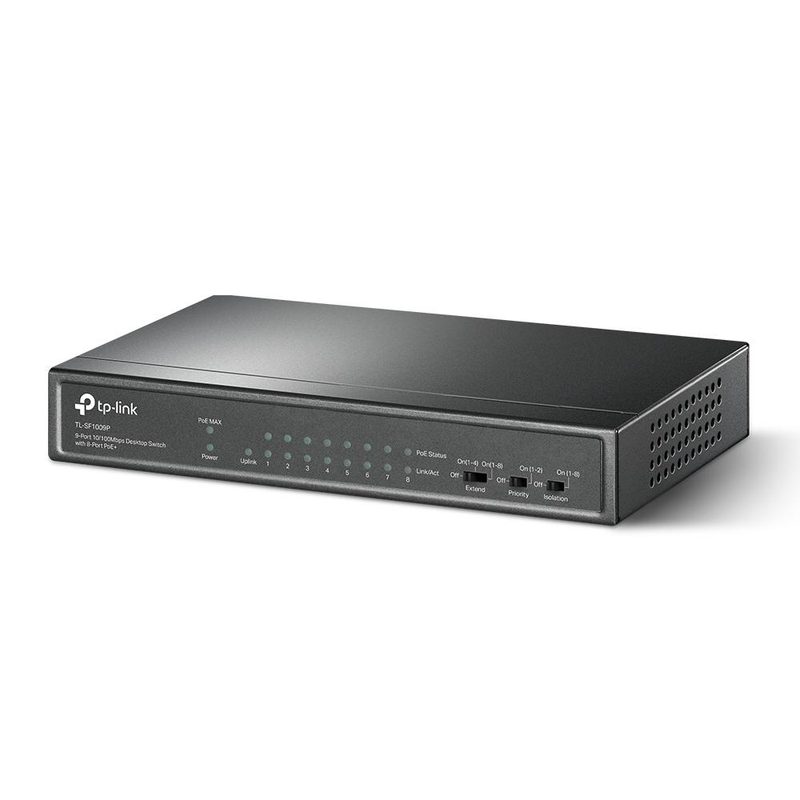

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TP-LinkModel TL-SF1009P(UN)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Harmonized System (HS) code
- 85176990
- AC adapter included
- Yes
- Compliance certificates
- Federal Communications Commission (FCC), CE, RoHS
- Switch type
- Unmanaged
Overview
TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ is a TP-Link switches & adapter with a sustainability compliance of Yes and a power connector of DC-in jack. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Power connector is DC-in jack. Certification is FCC, CE, RoHS. Harmonized System (HS) code is 85176990. Fanless is Yes. User guide is Yes. Compliance certificates is Federal Communications Commission (FCC), CE, RoHS. Heat dissipation is 262.84 BTU/h. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Harmonized System (HS) code | 85176990 |
|---|
| AC adapter included | Yes |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Switch type | Unmanaged |
| Certification | FCC, CE, RoHS |
| User guide | Yes |
|---|
| Sustainability compliance | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 171 mm |
|---|---|
| Depth | 98 mm |
| Height | 27 mm |
| Package width | 223 mm |
|---|---|
| Package depth | 280 mm |
| Package height | 68 mm |
| Package weight | 980 g |
| Package type | Box |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Activity, Link, PoE, Power |
|---|
| Heat dissipation | 262.84 BTU/h |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power consumption (max) | 77.08 W |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 1.31 A |
| Power supply included | No |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Fanless | Yes |
|---|
| Stackable | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Wall mountable | Yes |
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 1.3392 Mpps |
| Store-and-forward | Yes |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 9 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
