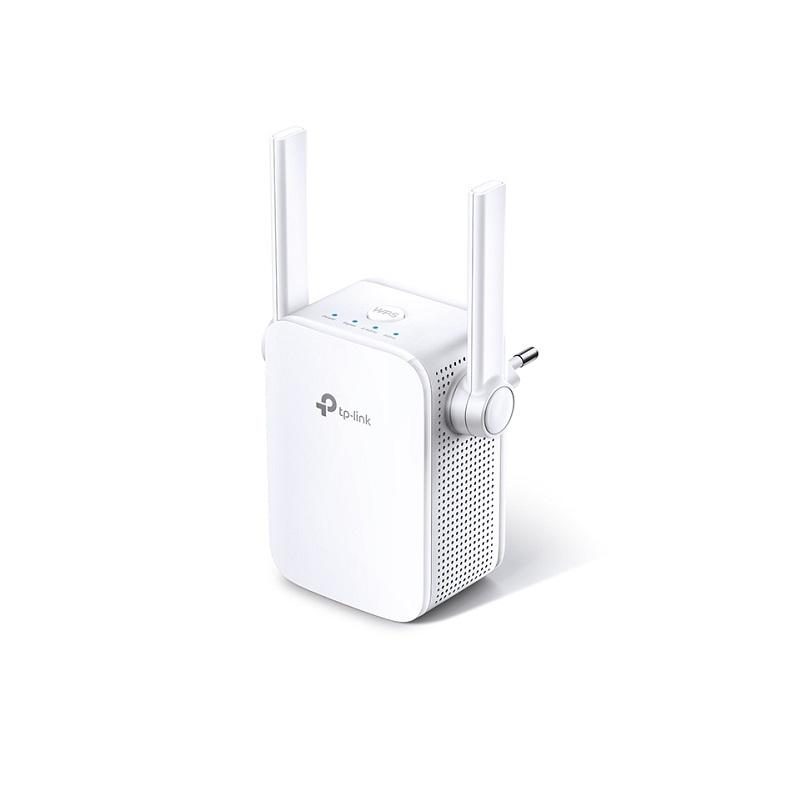

TP-LINK AC1200 WIFI RANGE EXTENDER RE305
TP-LinkModel AC1200SKU RE305
In stock
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- On/off switch
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Certification
- FCC, CE, RoHS
Overview
TP-LINK AC1200 WIFI RANGE EXTENDER RE305
Specifications
| On/off switch | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | FCC, CE, RoHS |
| Antenna design | External |
|---|---|
| Transmit power | 20 - 23 dBmW |
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Built-in processor | Yes |
|---|
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
|---|---|
| DMZ support | Yes |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| USB port | No |
|---|---|
| Memory card slot(s) | No |
| 3G | No |
|---|---|
| 4G | No |
| 5G | No |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| Dynamic DNS (DDNS) | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2 |
| VPN server | PPTP VPN, OpenVPN |
| Receiver sensitivity | 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1200 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Width | 215 mm |
|---|---|
| Depth | 117 mm |
| Height | 32 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | LAN, Power, Status, WLAN, WPS |
|---|
| Power source type | DC |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Processor cores | 2 |
|---|
