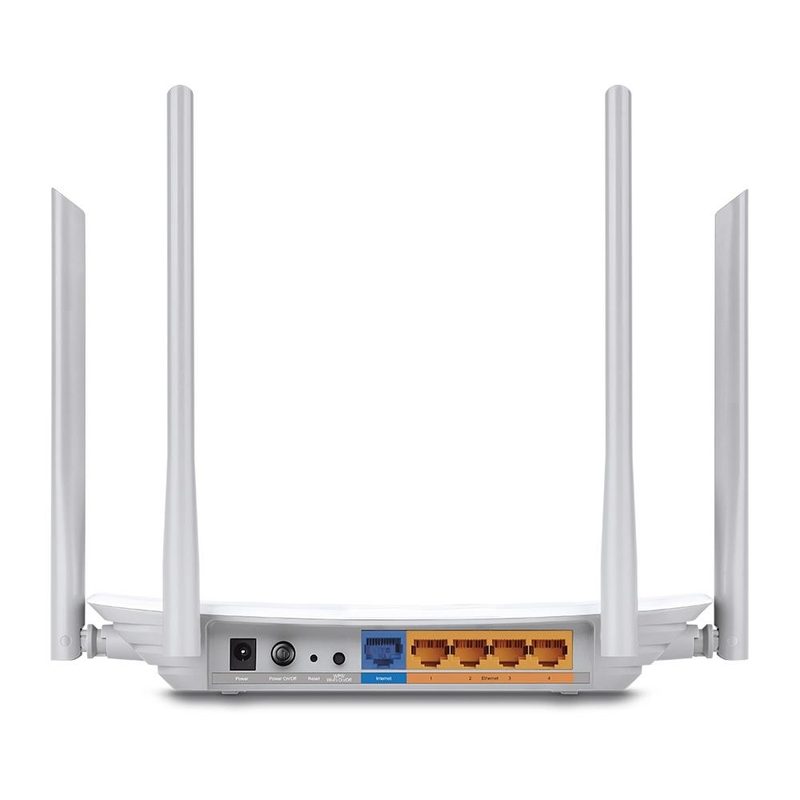

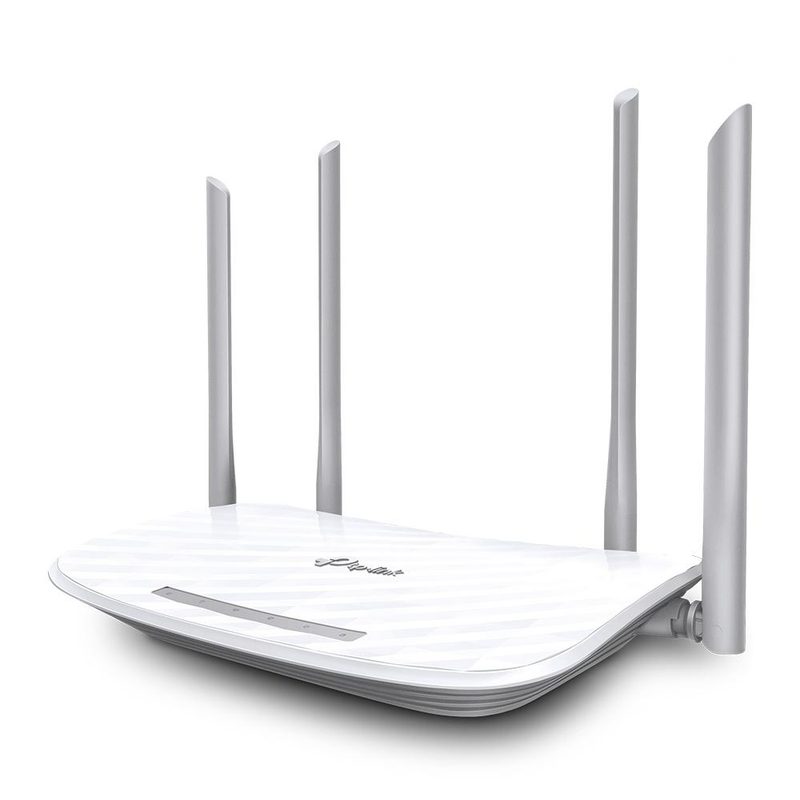

TP-Link Aginet EC220-F5 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)
TP-LinkModel EC220-F5
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- AC adapter included
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Certification
- CE, RoHS
Specifications
| AC adapter included | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | CE, RoHS |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| USB port | No |
|---|
| Firewall | Yes |
|---|---|
| Firewall security | DoS, SPI Firewall, IP Address Filter, IP & MAC Address Binding |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA, WPA2 |
| VPN support | PPTP, L2TP, IPSec |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1167 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Cables included | LAN (RJ-45) to DB9 |
|---|
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | AC, DC |
|---|---|
| Output current | 0.85 A |
| Output voltage | 9 V |
| Product type | Tabletop router |
|---|
| Antenna design | External |
|---|---|
| Antennas quantity | 4 |
