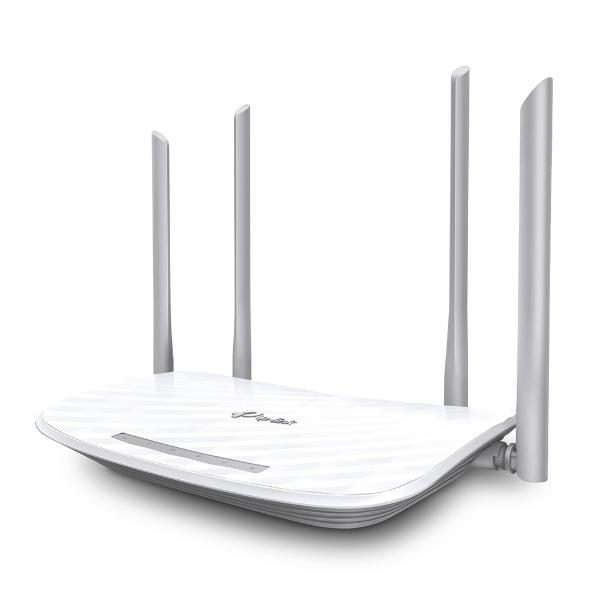

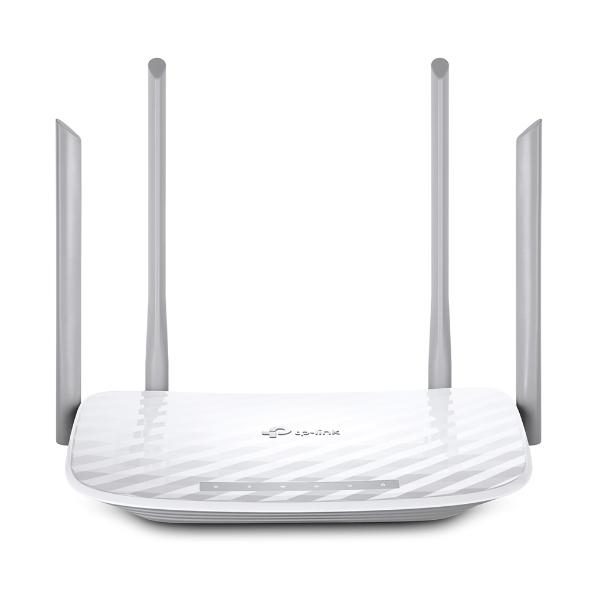

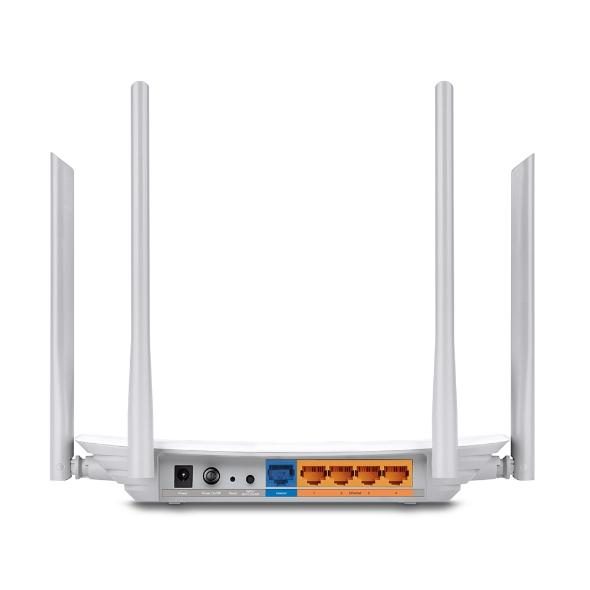

TP-Link ARCHER A5(EU) wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White
TP-LinkModel ARCHER A5(EU)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Yes
- Windows operating systems supported
- Yes
- Mac operating systems supported
- MacOS
Overview
TP-Link ARCHER A5(EU) wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White is a TP-Link routers & access point with a mac compatibility of Yes and a supported network protocols of IPv4, IPv6. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Mac compatibility is Yes. Supported network protocols is IPv4, IPv6. Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 10,100 Mbit/s. Receiver sensitivity is 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm. WPS push button is Yes. Reset button is Yes. Quick installation guide is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Cables included | LAN (RJ-45) |
|---|---|
| Quick installation guide | Yes |
| Windows operating systems supported | Yes |
|---|---|
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| AC adapter included | Yes |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 4 |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Firewall | Yes |
|---|---|
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| USB port | No |
|---|---|
| Memory card slot(s) | No |
| Ethernet LAN interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Static route | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Port forwarding | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Dynamic DNS (DDNS) | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VPN Passthrough | Yes |
| Receiver sensitivity | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1167 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Width | 229.9 mm |
|---|---|
| Depth | 144.2 mm |
| Height | 36.9 mm |
| Package width | 290 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 76 mm |
| Package type | Box |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | DC |
|---|---|
| Output current | 90.85 A |
| Product type | Tabletop router |
|---|---|
| Product colour | White |
| Access Control List (ACL) | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| Antenna design | External |
|---|---|
| Antennas quantity | 4 |
| Mac compatibility | Yes |
|---|
