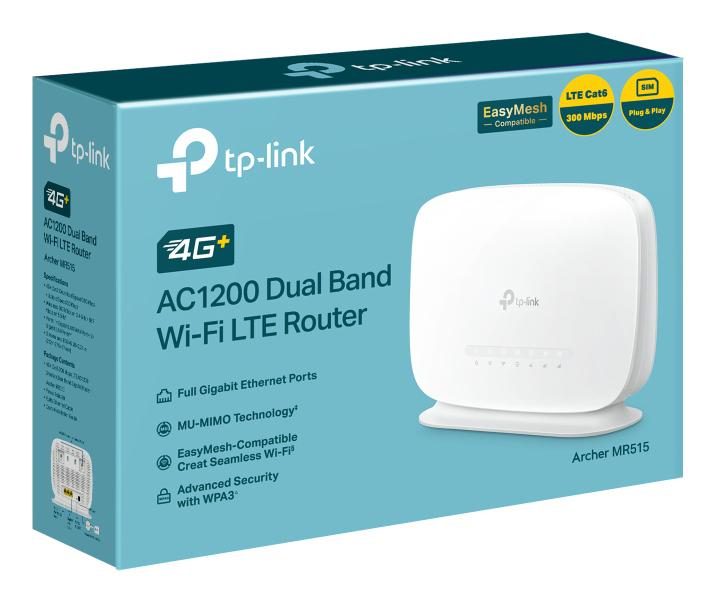

TP-Link Archer AC1200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
TP-LinkModel ARCHER MR515
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Yes
- AC adapter included
- Yes
- Compliance certificates
- CE, RoHS
Overview
TP-Link Archer AC1200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White is a TP-Link routers & access point with a ethernet lan (rj-45) ports of 2 and a ethernet lan data rates of 10,100,1000 Mbit/s. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 2. Ethernet LAN data rates is 10,100,1000 Mbit/s. Receiver sensitivity is 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm. Firmware upgradeable is Yes. Maximum Tx power (2.4 GHz) is 20 dBmW. MU-MIMO technology is Yes. WPS push button is Yes. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Cables included | LAN (RJ-45) |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| DHCP server | Yes |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| USB port | Yes |
|---|
| Firewall | Yes |
|---|---|
| DoS attack prevention | Yes |
| Filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Access Control List (ACL) | Yes |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Firmware upgradeable | Yes |
| Mobile network generation | 4G |
|---|---|
| 3G standards | DC-HSPA+, HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
|---|
| Width | 212 mm |
|---|---|
| Depth | 157.5 mm |
| Height | 57 mm |
| Power source type | AC |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Product type | Portable router |
|---|---|
| Product colour | White |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| SIM card type | NanoSIM |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| 3G bands supported | 850,900,2100 MHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| VPN server | PPTP VPN, OpenVPN |
| VPN support | PPTP VPN, OpenVPN |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Antenna design | Internal |
|---|---|
| Antennas quantity | 6 |
| Number of simultaneously connected devices (max) | 64 |
|---|---|
| Built-in processor | Yes |
