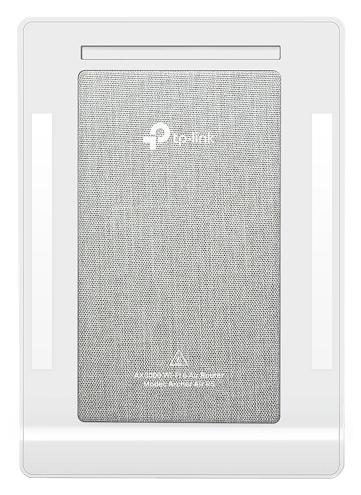

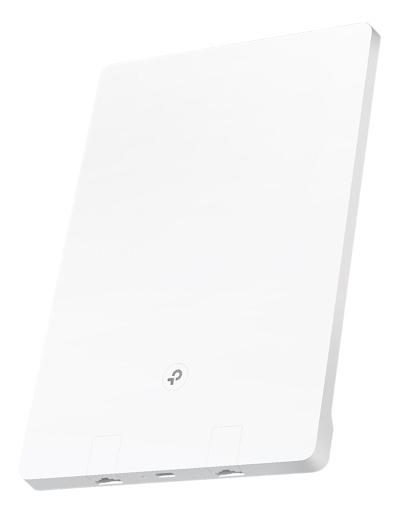

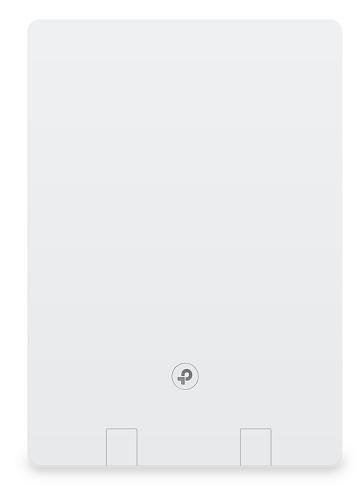

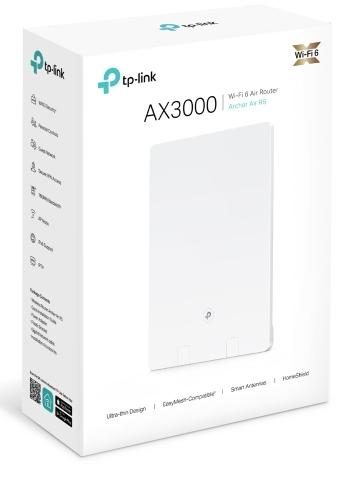

TP-Link Archer AIR R5(EU) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
TP-LinkModel ARCHER AIR R5(EU)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- FCC, CE, RoHS
- Antenna design
- Internal
Overview
TP-Link Archer AIR R5(EU) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White is a TP-Link routers & access point with a certification of FCC, CE, RoHS and a supported network protocols of IPv4, IPv6. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHS. Supported network protocols is IPv4, IPv6. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 10,100,1000 Mbit/s. Receiver sensitivity is 2.4GHz: 11g 6Mbps:-96dBm, 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm, 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 5GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm, 11ac HT40 MCS9:-69dBm, 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm, 11ax HE160 MCS11: -58dBm. USB charging port is Yes. WPS push button is Yes. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | FCC, CE, RoHS |
| Antenna design | Internal |
|---|
| Product type | Tabletop router |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| USB port | Yes |
|---|---|
| USB charging port | Yes |
| Guest access | Yes |
|---|---|
| Parental control | Yes |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (6 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3-Personal |
| Receiver sensitivity | 2.4GHz: 11g 6Mbps:-96dBm, 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm, 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 5GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm, 11ac HT40 MCS9:-69dBm, 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm, 11ax HE160 MCS11: -58dBm |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 2976 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Manual | Yes |
|---|
| Width | 148 mm |
|---|---|
| Depth | 10.8 mm |
| Height | 210 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | USB |
|---|
