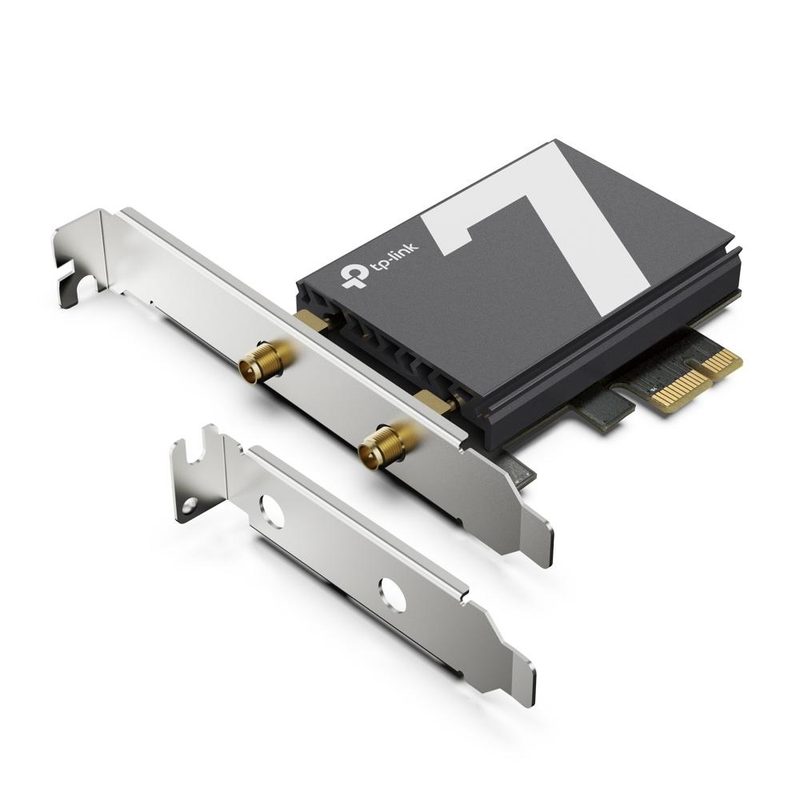

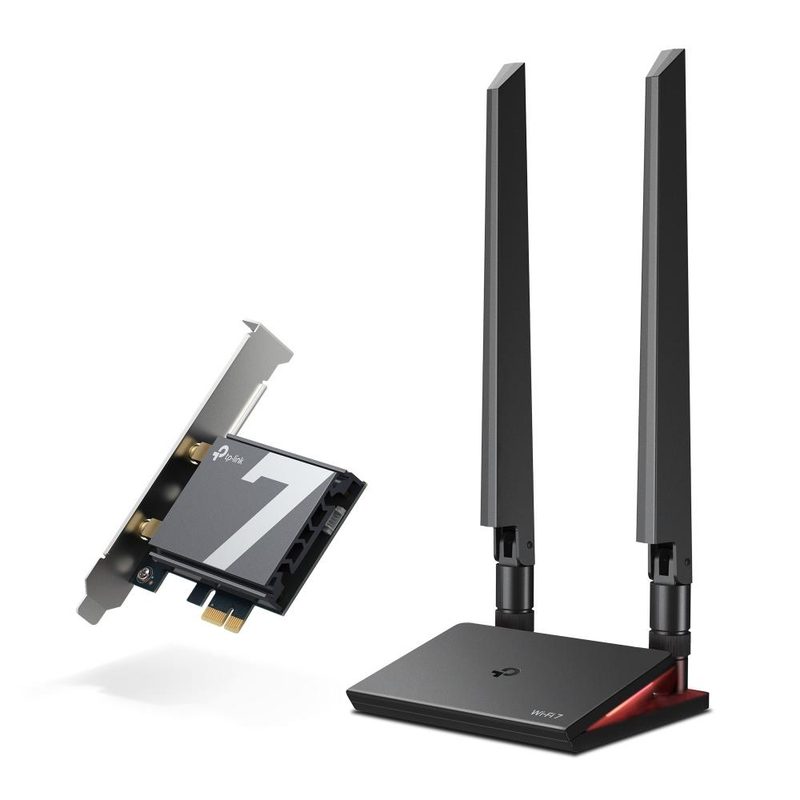

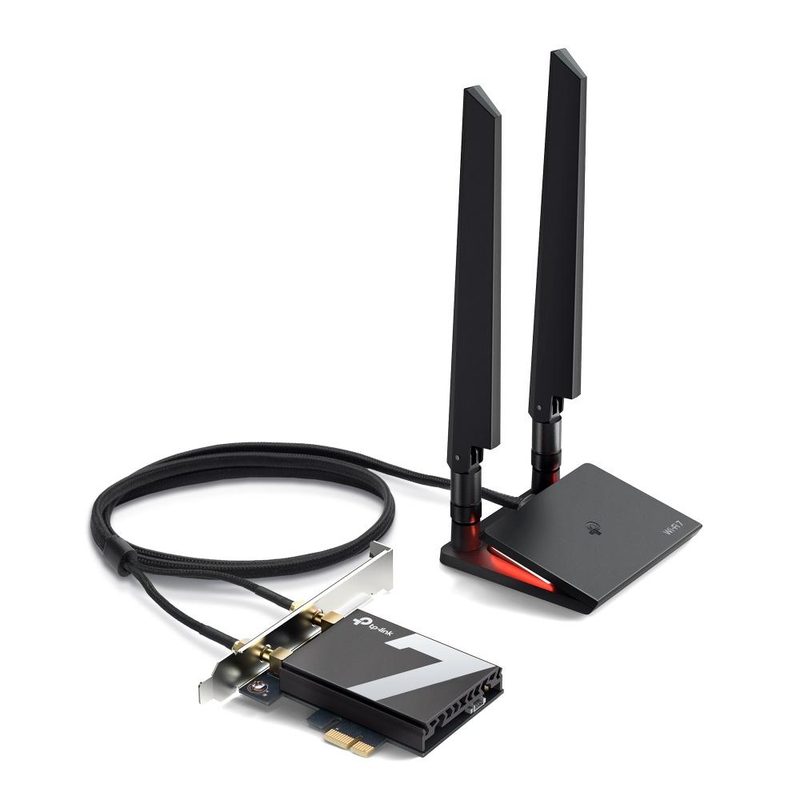

TP-Link Archer BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
TP-LinkModel ARCHER TBE550E
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Quick installation guide
- Yes
- Internal
- Yes
- Certification
- FCC/CE/IC/NCC/JRF/VCCI/BSMI
- Antenna design
- External
Overview
TP-Link Archer BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter is a TP-Link switches & adapter with a certification of FCC/CE/IC/NCC/JRF/VCCI/BSMI and a receiver sensitivity of 6 GHz: 11ax HE20 MCS0: -94 dBm; 11be EHT320 MCS13: -44dBm; 5 GHz: 11ac VHT20 MCS0: -94 dBm; 11be EHT160 MCS13: -48dBm; 2.4 GHz: 11n HT20 MSC0: -95 dBm; 11be EHT40 MSC13: -56dBm. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC/CE/IC/NCC/JRF/VCCI/BSMI. Receiver sensitivity is 6 GHz: 11ax HE20 MCS0: -94 dBm; 11be EHT320 MCS13: -44dBm; 5 GHz: 11ac VHT20 MCS0: -94 dBm; 11be EHT160 MCS13: -48dBm; 2.4 GHz: 11n HT20 MSC0: -95 dBm; 11be EHT40 MSC13: -56dBm. Quick installation guide is Yes. Internal is Yes. Security algorithms is WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Height is 21.5 mm. Depth is 120.8 mm. Width is 95.2 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Quick installation guide | Yes |
|---|
| Internal | Yes |
|---|---|
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Antenna design | External |
|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Receiver sensitivity | 6 GHz: 11ax HE20 MCS0: -94 dBm; 11be EHT320 MCS13: -44dBm; 5 GHz: 11ac VHT20 MCS0: -94 dBm; 11be EHT160 MCS13: -48dBm; 2.4 GHz: 11n HT20 MSC0: -95 dBm; 11be EHT40 MSC13: -56dBm |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|---|
| Maximum data transfer rate | 9300 Mbit/s |
|---|---|
| Host interface | PCI Express |
| Width | 95.2 mm |
|---|---|
| Depth | 120.8 mm |
| Height | 21.5 mm |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Component for | PC |
|---|---|
| Product colour | Black |
| Antenna | Yes |
| LED indicators | Yes |
|---|
| Interface | WLAN / Bluetooth |
|---|---|
| Connectivity technology | Wireless |
| Wi-Fi | Yes |
Warranty
3 year limited warranty
