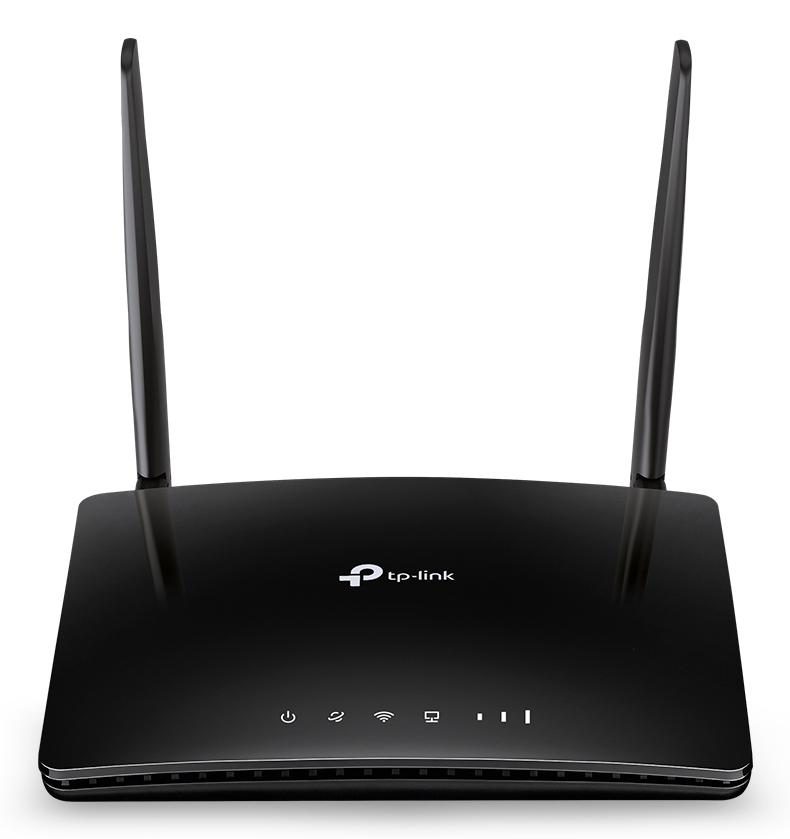

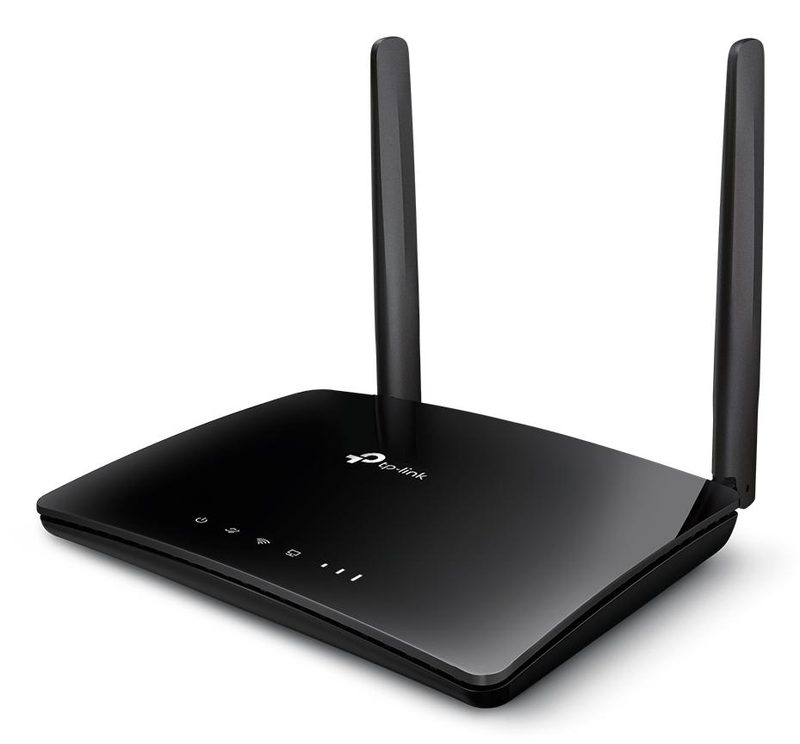

TP-Link Archer MR402 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black
TP-LinkModel ARCHER MR402
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Number of products included
- 1 pc(s)
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Yes
- Windows operating systems supported
- Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Overview
TP-Link Archer MR402 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black is a TP-Link routers & access point with a supported network protocols of IPv4, IPv6 and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is IPv4, IPv6. Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 10,100 Mbit/s. Receiver sensitivity is 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm. Transmit power is 23 dBmW. WPS push button is Yes. Reset button is Yes. Compliance certificates is CE, RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Number of products included | 1 pc(s) |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
| Ethernet LAN data rates | 10,100 Mbit/s |

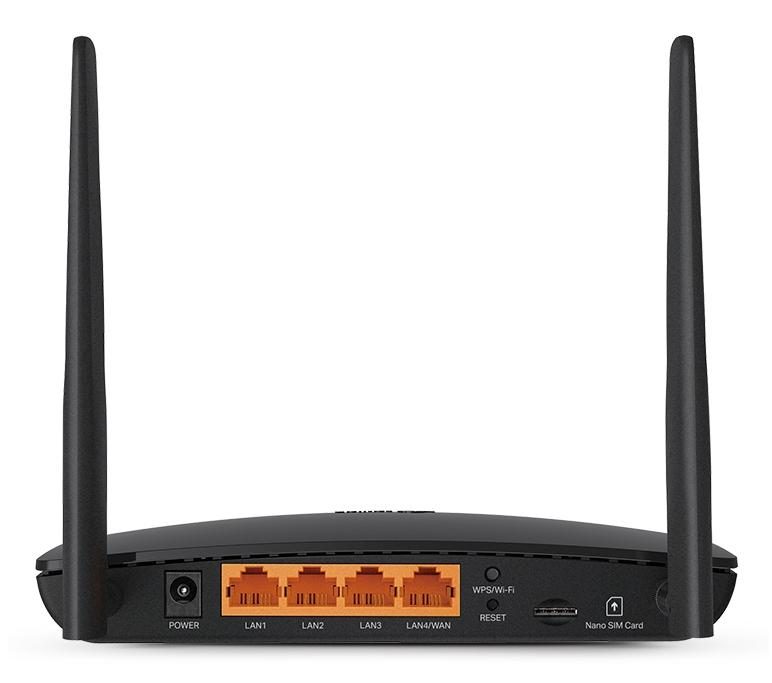

| Ethernet LAN (RJ-45) ports | 4 |
| Antenna design | External |
|---|---|
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| Transmit power | 23 dBmW |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Firewall | Yes |
|---|---|
| Firewall security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Schedule access | Yes |
| Parental control | Yes |
| Access Control List (ACL) | Yes |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Mobile network generation | 4G |
|---|---|
| 3G standards | HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Width | 174 mm |
|---|---|
| Depth | 124.5 mm |
| Height | 33.5 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | DC |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Product type | Tabletop router |
|---|---|
| Product colour | Black |
| USB port | No |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| SIM card type | NanoSIM |
| Cabling technology | 10/100Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| 3G bands supported | 850,900,2100 MHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VPN support | PPTP VPN, OpenVPN |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
| Supported network protocols | IPv4, IPv6 |
