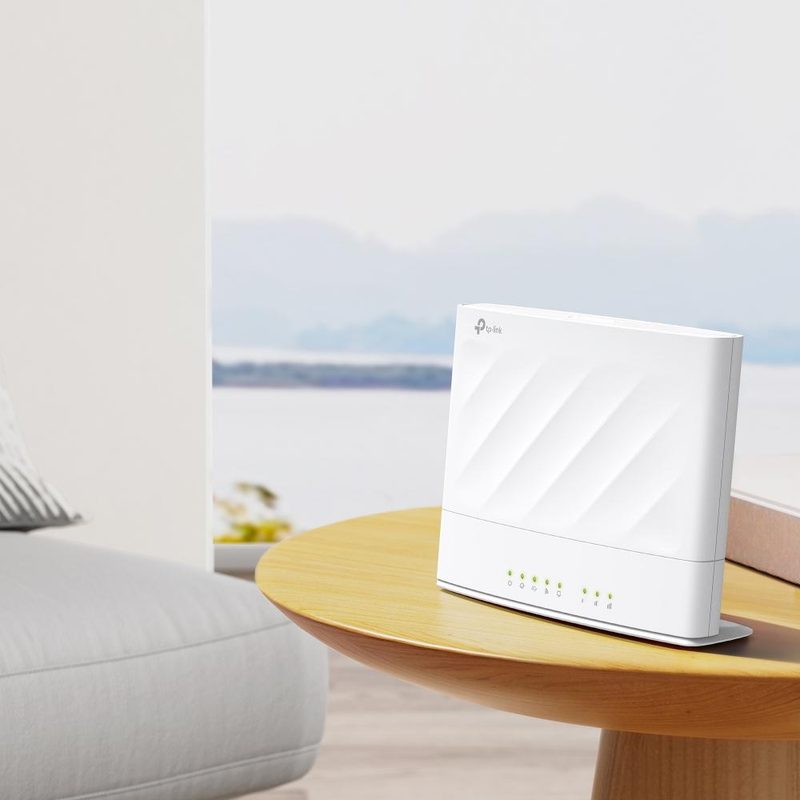

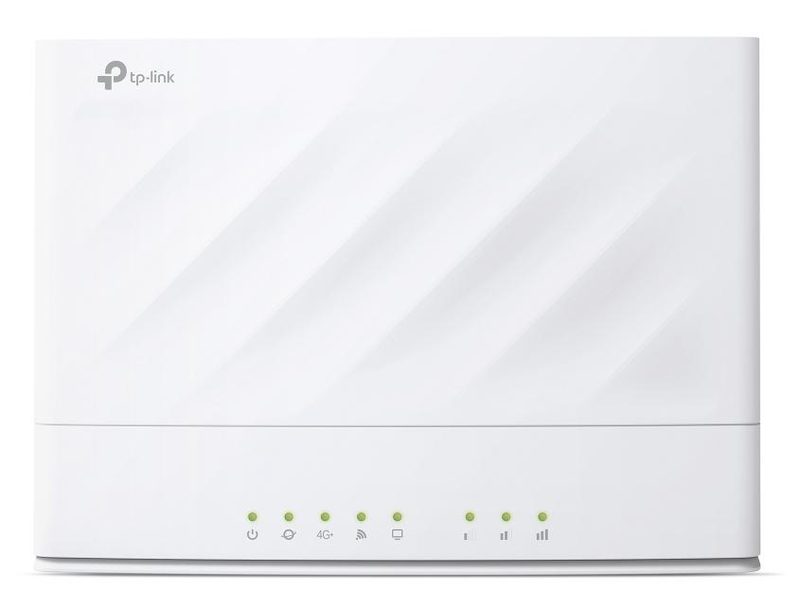

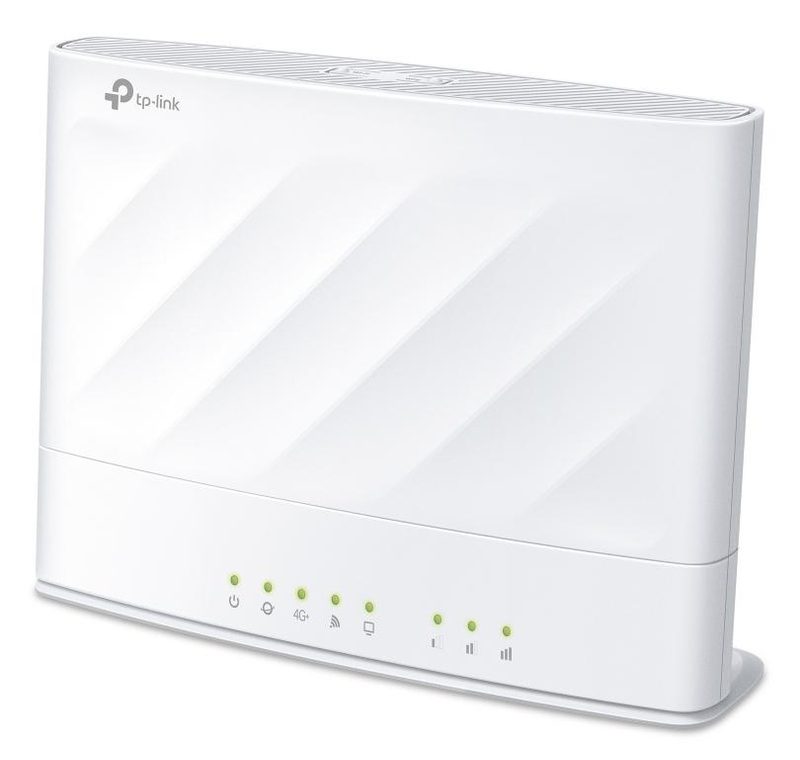

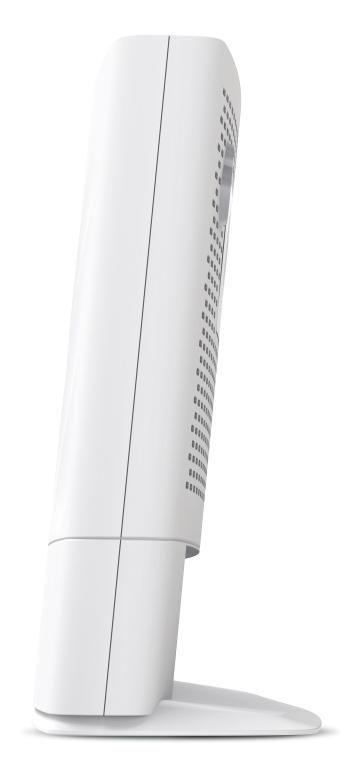

TP-Link Archer MX700 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
TP-LinkModel ARCHER MX700
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Yes
- Windows operating systems supported
- Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista
- Mac operating systems supported
- Yes
Overview
TP-Link Archer MX700 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White is a TP-Link routers & access point with a supported network protocols of IPv4, IPv6 and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is IPv4, IPv6. Ethernet LAN (RJ-45) ports is 4. Receiver sensitivity is 5 GHz: 11a 54M: -77 dBm 11ax HE20:-64 dBm 11ax HE40: -61 dBm 11ax HE80:-59 dBm 11ac VHT20: -69 dBm 11ac VHT40: -66 dBm 11ac VHT80 : -63 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54M: -78 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm. Firmware upgradeable is Yes. MU-MIMO technology is Yes. Reset button is Yes. Compliance certificates is CE, RoHS. Quick installation guide is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Cables included | LAN (RJ-45) |
|---|---|
| Quick installation guide | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| AC adapter included | Yes |
|---|---|
| On/off switch | Yes |
| Compliance certificates | CE, RoHS |

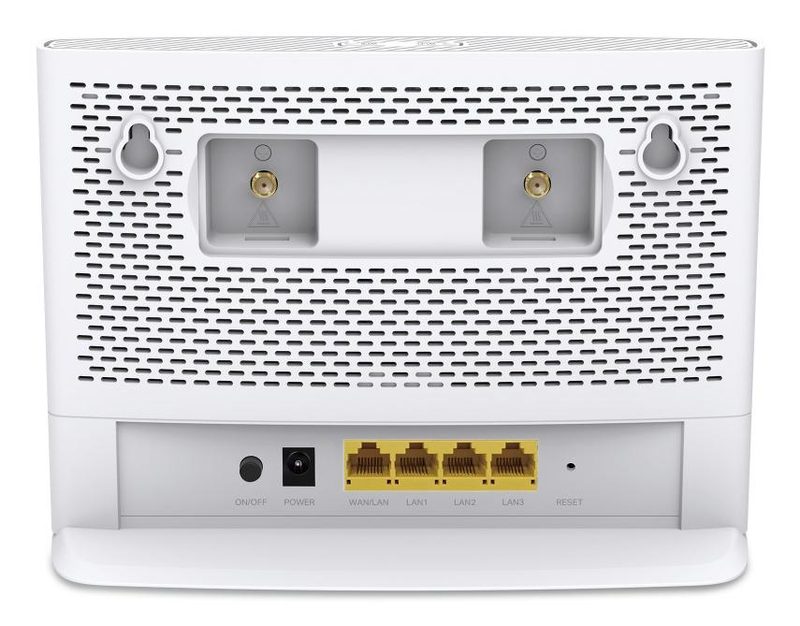

| Ethernet LAN (RJ-45) ports | 4 |
| Product type | Rack/wall router |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Firewall security | IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control |
|---|---|
| Schedule access | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Mobile network generation | 4G |
|---|---|
| 4G standard | LTE-TDD & LTE-FDD |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| WLAN data transfer rate (max) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Width | 199.7 mm |
|---|---|
| Depth | 148.6 mm |
| Height | 67.5 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | DC |
|---|
| Cloud-managed | Yes |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| Firmware upgradeable | Yes |
| USB port | No |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| SIM card type | NanoSIM |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Port triggering | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| 3G bands supported | 850,900,2100 MHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ax HE20:-64 dBm 11ax HE40: -61 dBm 11ax HE80:-59 dBm 11ac VHT20: -69 dBm 11ac VHT40: -66 dBm 11ac VHT80 : -63 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54M: -78 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm |
| Supported network protocols | IPv4, IPv6 |
| Antenna design | Internal |
|---|---|
| Antennas quantity | 6 |
