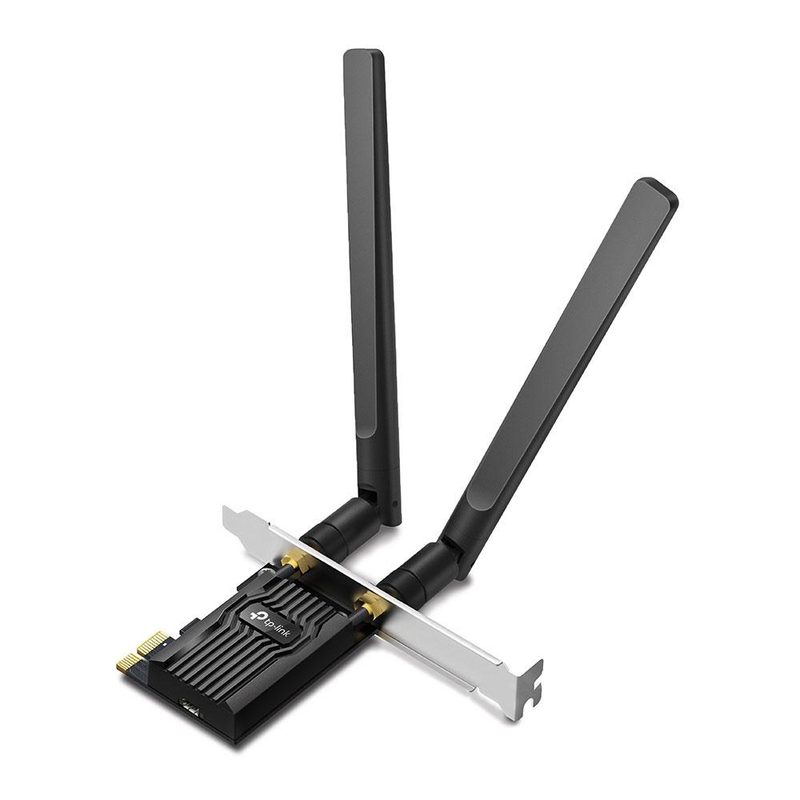

TP-Link Archer TX20E Internal WLAN / Bluetooth 1800 Mbit/s
TP-LinkModel ARCHER TX20E UN-B
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Internal
- Yes
- Windows operating systems supported
- Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
- Sustainability compliance
- Yes
Overview
TP-Link Archer TX20E Internal WLAN / Bluetooth 1800 Mbit/s is a TP-Link switches & adapter with a sustainability compliance of Yes and a operating modes of Infrastructure mode. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Sustainability compliance is Yes. Operating modes is Infrastructure mode. Compliance certificates is CE, Federal Communications Commission (FCC), RoHS. Quick installation guide is Yes. Internal is Yes. Mounting brackets included is Yes. Security algorithms is 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Height is 20.9 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|---|
| Internal | Yes |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
|---|
| Sustainability compliance | Yes |
|---|
| Resource CD | Yes |
|---|---|
| Bluetooth header cable | Yes |
| Quick installation guide | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|
| Maximum data transfer rate | 1800 Mbit/s |
|---|---|
| Host interface | PCI Express |
| Width | 120.8 mm |
|---|---|
| Depth | 78.5 mm |
| Height | 20.9 mm |
| Package width | 201.5 mm |
|---|---|
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 220 g |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Component for | PC/Server |
|---|---|
| Product colour | Black |
| Antenna | Yes |
| Transmitting power (FCC) | 27 dBm |
| Operating modes | Infrastructure mode |
| Plug and Play | Yes |
|---|
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Interface | WLAN / Bluetooth |
|---|---|
| Connectivity technology | Wireless |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Antenna design | External |
|---|---|
| Transmitting power (CE) | 23 dBm |
Warranty
3 year limited warranty
