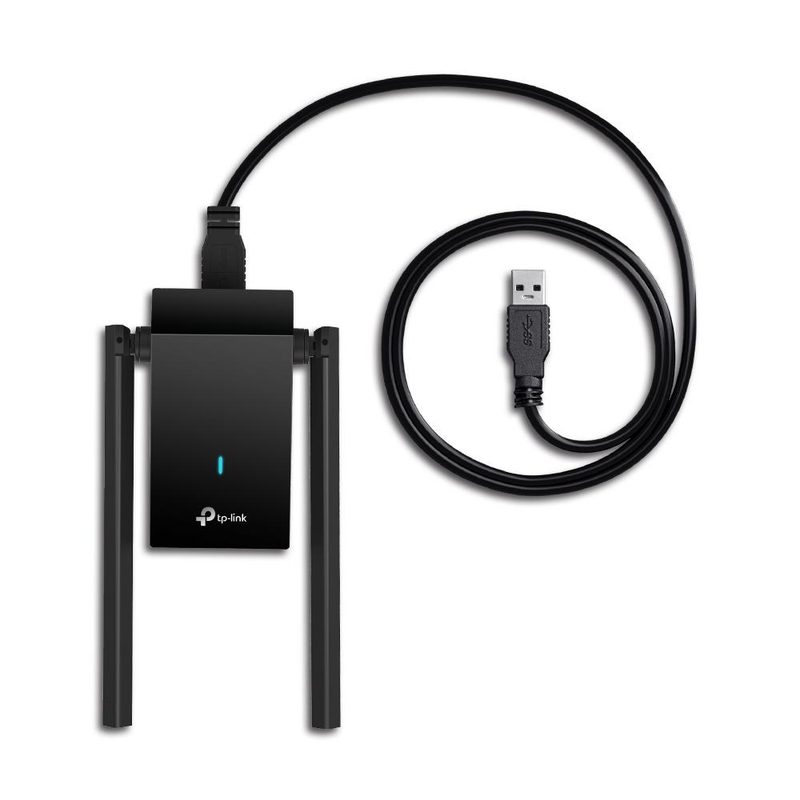

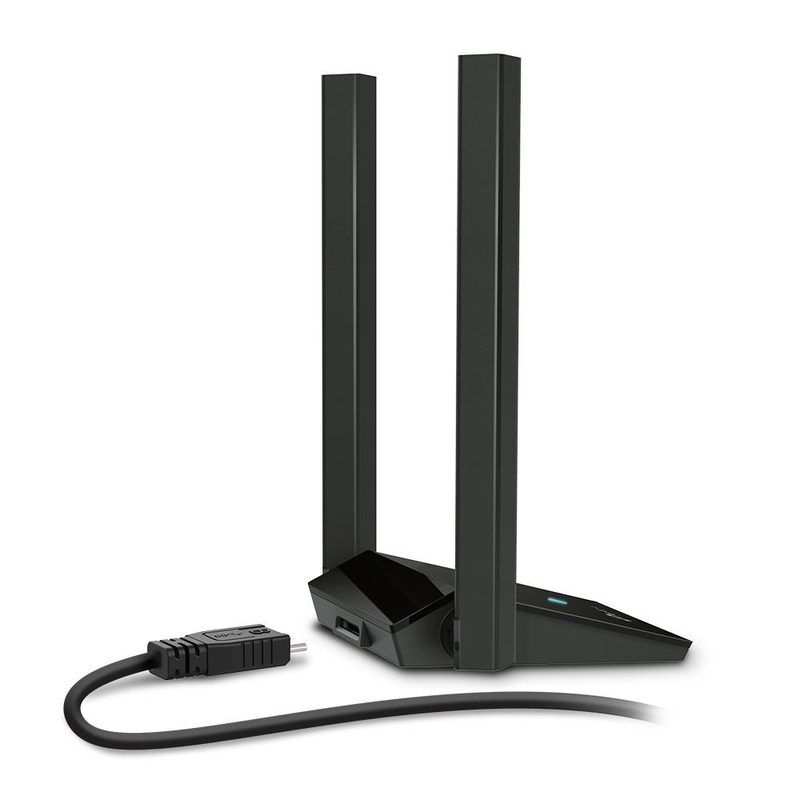

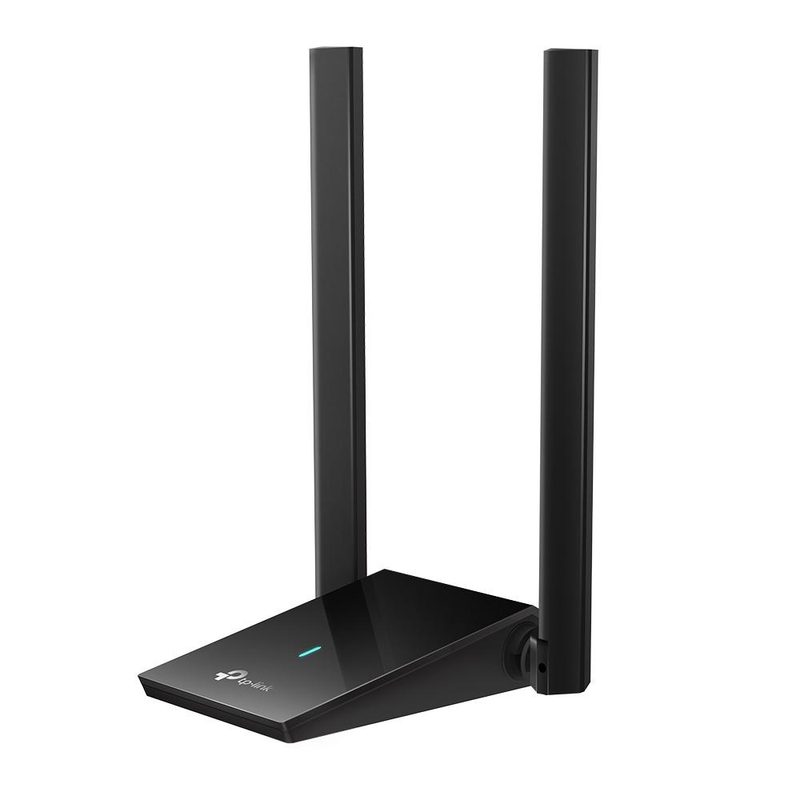

TP-Link Archer TX20U Plus WLAN 1800 Mbit/s
TP-LinkModel TX20U PLUS
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Cables included
- USB
- Quick installation guide
- Yes
- Compliance certificates
- RoHS, Federal Communications Commission (FCC), CE
- Internal
- No
Overview
TP-Link Archer TX20U Plus WLAN 1800 Mbit/s is a TP-Link switches & adapter with a mu-mimo of Yes and a operating modes of Infrastructure mode. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
MU-MIMO is Yes. Operating modes is Infrastructure mode. Ethernet LAN (RJ-45) ports is 0. Compliance certificates is RoHS, Federal Communications Commission (FCC), CE. Quick installation guide is Yes. Internal is No. Security algorithms is WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Height is 19.2 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Cables included | USB |
|---|---|
| Quick installation guide | Yes |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
|---|---|
| Internal | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|
| Maximum data transfer rate | 1800 Mbit/s |
|---|---|
| Host interface | USB |
| Width | 84 mm |
|---|---|
| Depth | 156.3 mm |
| Height | 19.2 mm |
| Package width | 201.5 mm |
|---|---|
| Package depth | 153 mm |
| Package height | 46.5 mm |
| Package weight | 230 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Component for | PC |
|---|---|
| Product colour | Black |
| Transmitting power (FCC) | 19 dBm |
| Operating modes | Infrastructure mode |
| LED indicators | Status |
|---|
| WLAN data transfer rates supported | 11,54,300,400,574,867,1200 Mbit/s |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| MU-MIMO | Yes |
| Interface | WLAN |
|---|---|
| Connectivity technology | Wireless |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Wi-Fi | Yes |
| Antennas quantity | 2 |
|---|---|
| Transmitting power (CE) | 16 dBm |
Warranty
3 year limited warranty
