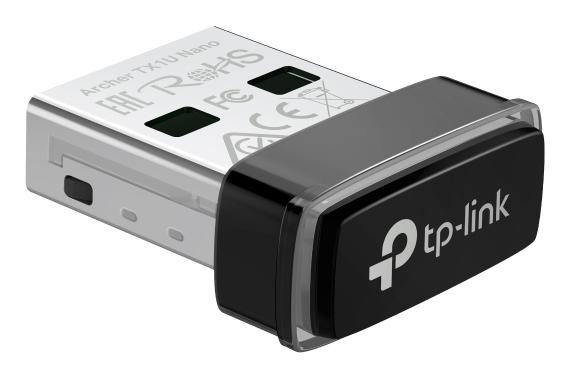

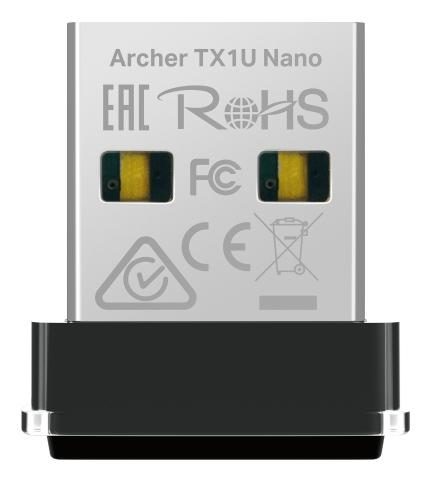

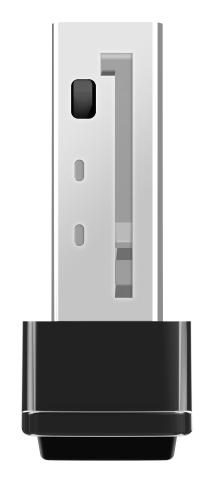

TP-Link AX300 WLAN 287 Mbit/s
TP-LinkModel ARCHER TX1U NANO
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Quick installation guide
- Yes
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), RoHS
- Compatible operating systems
- Linux (Kernel 3.10 and later)
- Internal
- No
Overview
TP-Link AX300 WLAN 287 Mbit/s is a TP-Link switches & adapter with a mu-mimo of Yes and a usb powered of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
MU-MIMO is Yes. USB powered is Yes. Compliance certificates is CE, EAC, Federal Communications Commission (FCC), RoHS. Compatible operating systems is Linux (Kernel 3.10 and later). Quick installation guide is Yes. Internal is No. Sensitivity is -95 dBmW. Security algorithms is WEP, WPA-PSK, WPA2-PSK. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Quick installation guide | Yes |
|---|
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), RoHS |
|---|---|
| Compatible operating systems | Linux (Kernel 3.10 and later) |
| Internal | No |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
|---|
| Antenna design | Internal |
|---|
| Wi-Fi band | Single-band (2.4 GHz) |
|---|
| Maximum data transfer rate | 287 Mbit/s |
|---|---|
| Host interface | USB |
| Width | 15.8 mm |
|---|---|
| Depth | 17.5 mm |
| Height | 7.1 mm |
| Package type | Box |
|---|
| USB powered | Yes |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Component for | PC/Laptop |
|---|---|
| Product colour | Black |
| Antenna | Yes |
| Plug and Play | Yes |
|---|
| USB connector form factor | Straight |
|---|
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| MU-MIMO | Yes |
| Interface | WLAN |
|---|---|
| Connectivity technology | Wireless |
| USB version | 2.0 |
| Wi-Fi | Yes |
| Bluetooth | No |
| Sensitivity | -95 dBmW |
|---|
Warranty
3 year limited warranty
