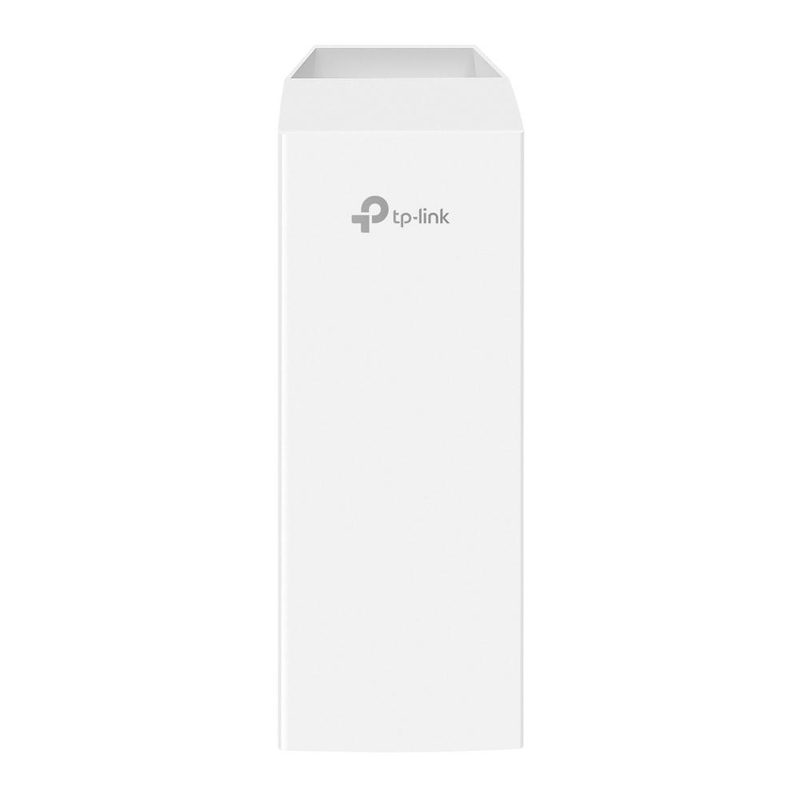

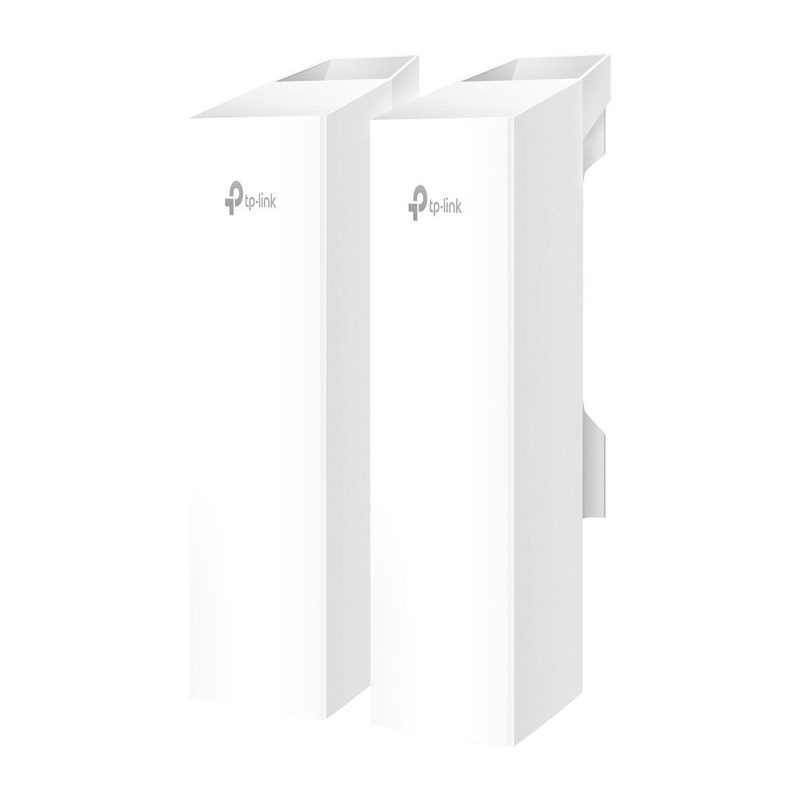

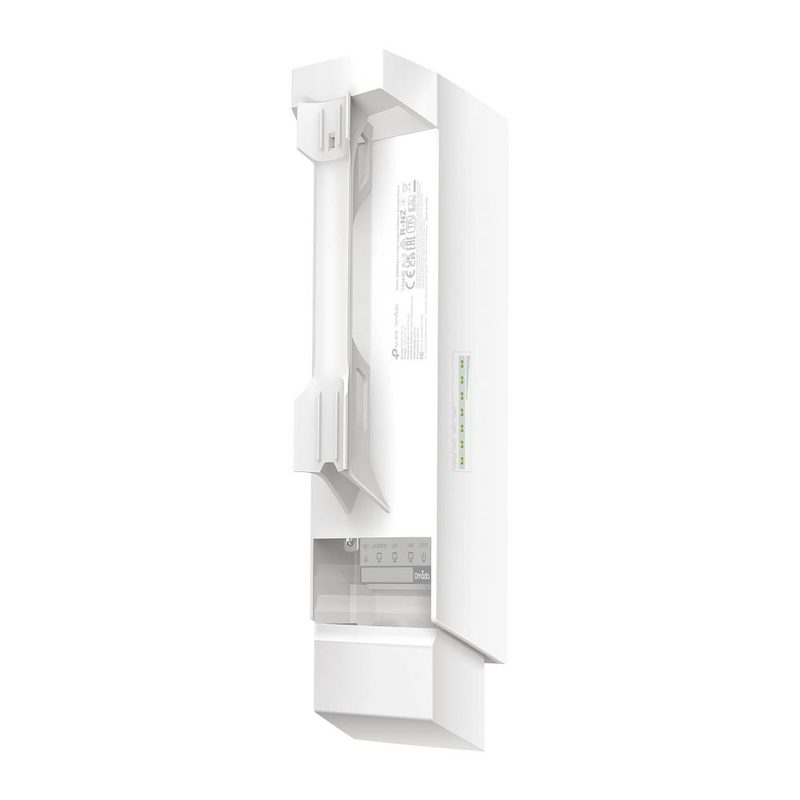

TP-Link EAP215-BRIDGE KIT(EU) wireless access point 867 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP215-BRIDGE KIT(EU)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN data rates
- 10,100,1000 Mbit/s

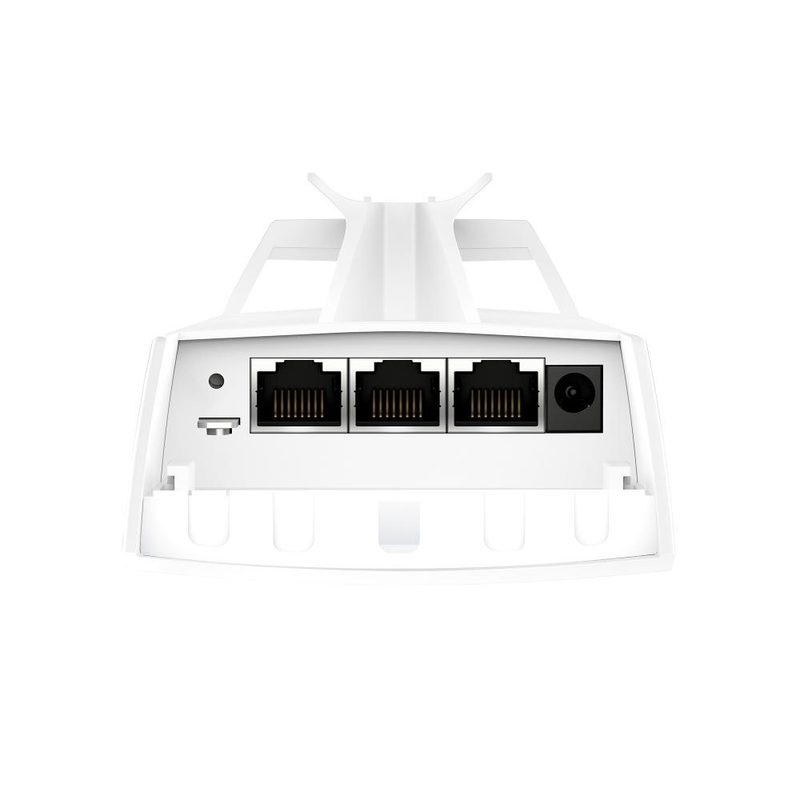

- Ethernet LAN (RJ-45) ports
- 3
- Certification
- CE, FCC, RoHS
- Antenna features
- Integrated antenna
Overview
TP-Link EAP215-BRIDGE KIT(EU) wireless access point 867 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a certification of CE, FCC, RoHS and a ethernet lan (rj-45) ports of 3. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Ethernet LAN (RJ-45) ports is 3. Ethernet LAN data rates is 10,100,1000 Mbit/s. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Syslog is Yes. Polarization is Dual polarization. Security algorithms is SNMP, SNMPv2, SNMPv3, SSH. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Certification | CE, FCC, RoHS |
| Antenna features | Integrated antenna |
|---|---|
| Antenna gain level (max) | 11 dBi |
| Transmitting power (CE) | <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP) |
| Polarization | Dual polarization |
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 12 V |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Reset button | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Antenna type | Internal |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
|---|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Quick start guide | Yes |
|---|
| 2.4 GHz | No |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Rate limiting | Yes |
| Width | 224 mm |
|---|---|
| Depth | 79 mm |
| Height | 60 mm |
| Weight | 330.9 g |
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Product colour | White |
|---|---|
| Placement | Pole |
| Antenna direction type | Directional |
| Transmitting power (FCC) | <22dBm (5 GHz band1/4) |
| LED indicators | Yes |
|---|
| BeamForming | Yes |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
|---|
Warranty
3 year limited warranty
