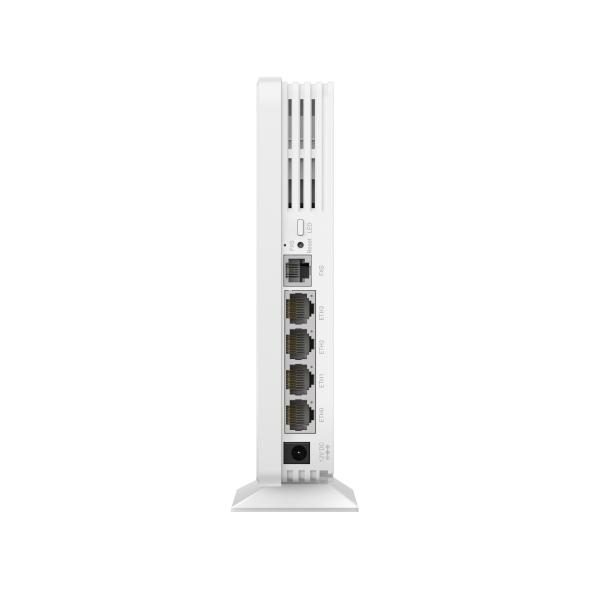

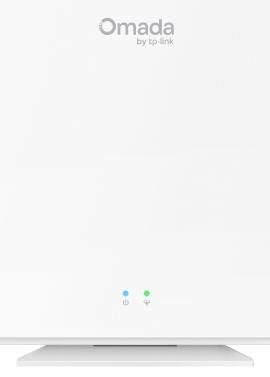

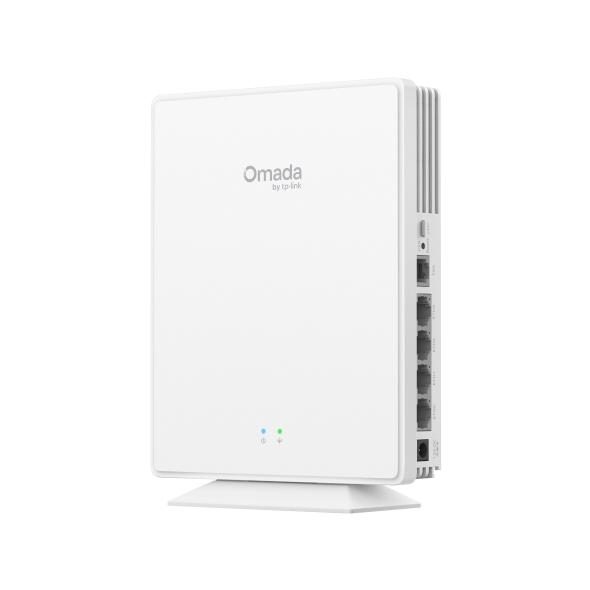

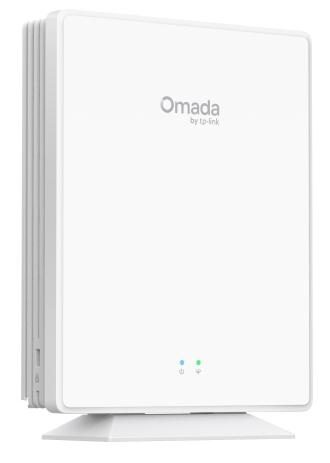

TP-Link EAP603GP-Desktop 1775 Mbit/s White
TP-LinkModel EAP603GP-DESKTOP
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Certification
- CE, FCC, RoHS, IC
- Antenna gain level (max)
- 5 dBi
Overview
TP-Link EAP603GP-Desktop 1775 Mbit/s White is a TP-Link routers & access point with a certification of CE, FCC, RoHS, IC and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS, IC. Ethernet LAN (RJ-45) ports is 4. Ethernet LAN data rates is 10,100,1000 Mbit/s. Receiver sensitivity is 2.4 GHz: 11g 6M -95dBm; 11ax HE40 MCS11 -63dBm 5 GHz: 11a 6M -96dBm; 11ax HE80 MCS11 -63dBm. Security algorithms is WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Weight is 437 g. Height is 33 mm. Depth is 140 mm. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Certification | CE, FCC, RoHS, IC |
| Antenna gain level (max) | 5 dBi |
|---|---|
| Antennas quantity | 4 |
| Product colour | White |
|---|---|
| Placement | Desk, Wall |
| Power consumption (max) | 15.5 W |
|---|---|
| Input current | 1.5 A |
| Power over Ethernet (PoE) | No |
| DC voltage range | 12 V |
| Antenna type | Internal |
|---|---|
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Receiver sensitivity | 2.4 GHz: 11g 6M -95dBm; 11ax HE40 MCS11 -63dBm 5 GHz: 11a 6M -96dBm; 11ax HE80 MCS11 -63dBm |
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|---|
| Number of SSID supported | 16 |
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Width | 175 mm |
|---|---|
| Depth | 140 mm |
| Height | 33 mm |
| Weight | 437 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Web-based management | Yes |
|---|---|
| Cloud-managed | Yes |
Warranty
3 year limited warranty
