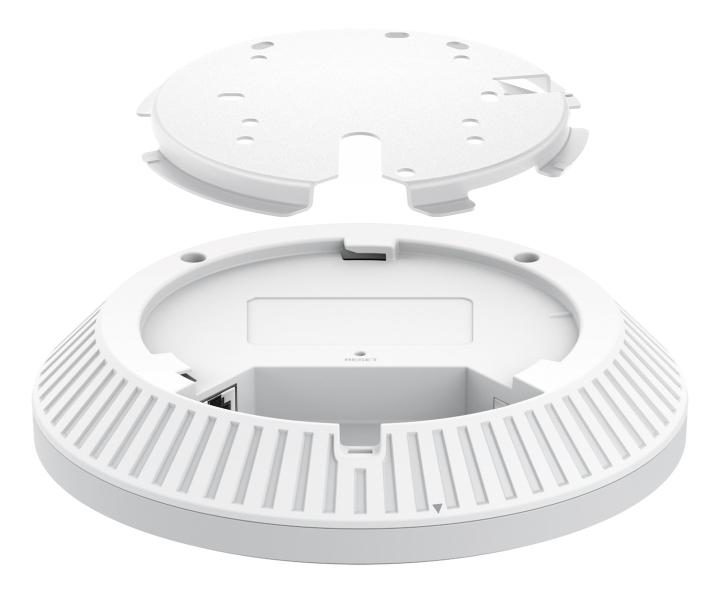

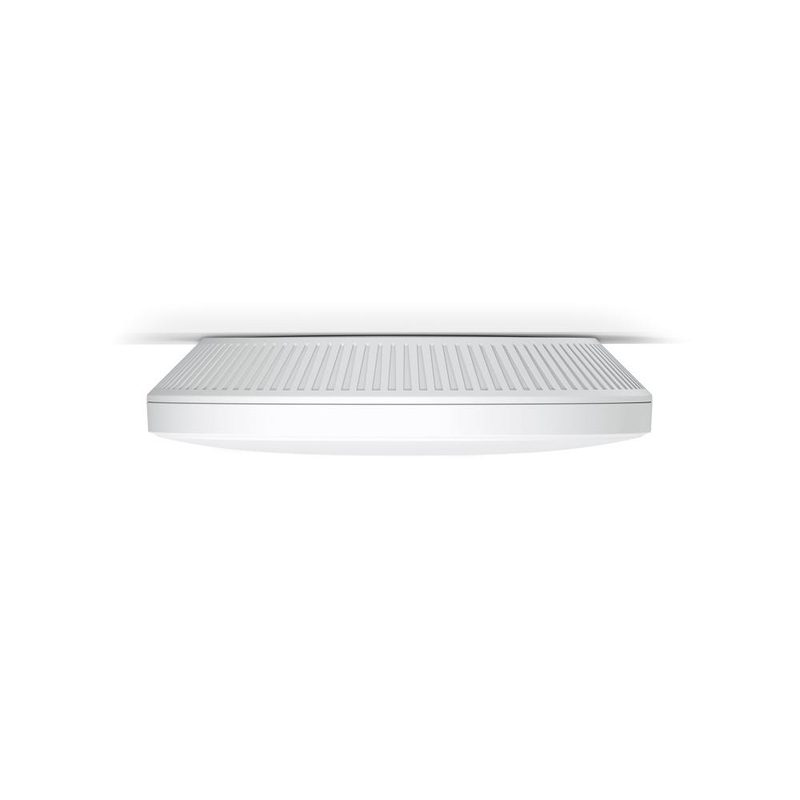

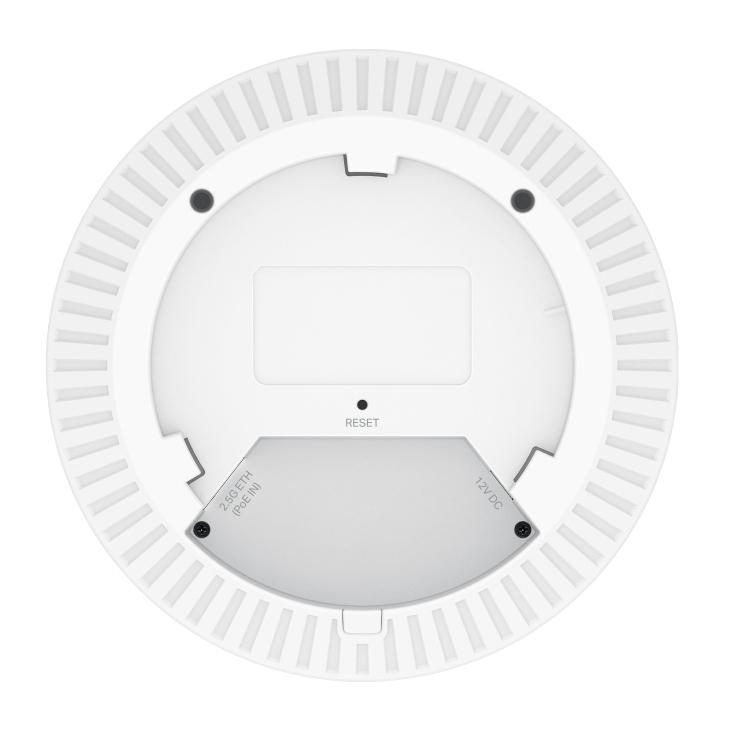

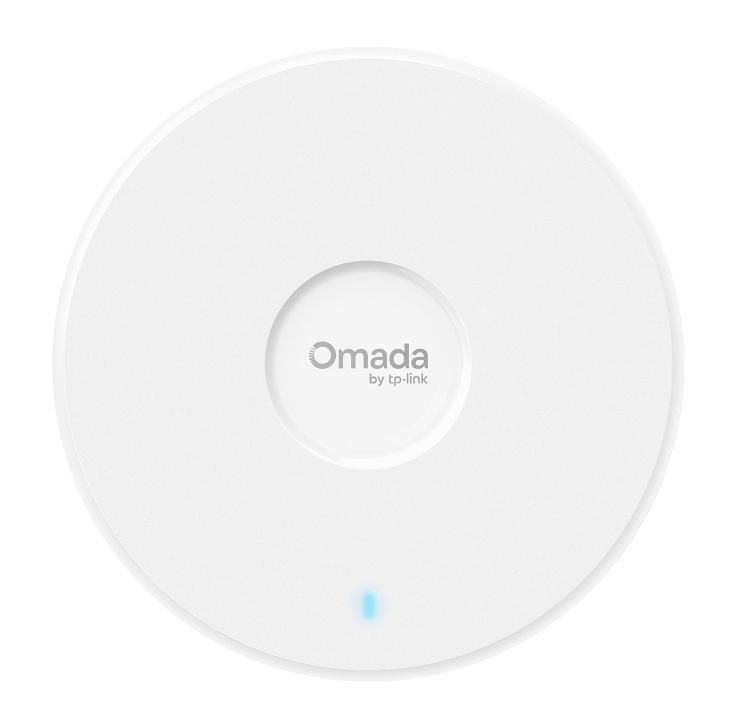

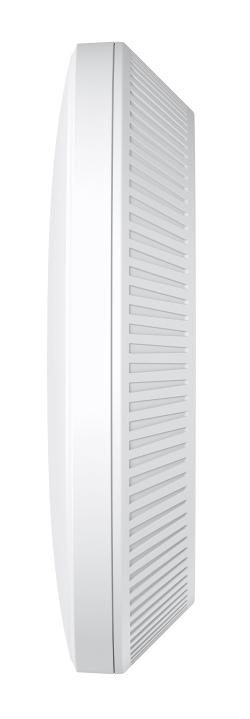

TP-Link EAP720 wireless access point 4324 Mbit/s White Power over Ethernet (PoE)
TP-LinkModel EAP720
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Quick start guide
- Yes
- Mounting kit
- Yes
- AC adapter included
- Yes
- Compliance certificates
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Overview
TP-Link EAP720 wireless access point 4324 Mbit/s White Power over Ethernet (PoE) is a TP-Link routers & access point with a supported network protocols of IPv4/IPv6 and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is IPv4/IPv6. Ethernet LAN (RJ-45) ports is 1. Ethernet LAN data rates is 2500 Mbit/s. Firmware upgradeable is Yes. Maximum Tx power (5 GHz) is 25 dBmW. Maximum Tx power (2.4 GHz) is 25 dBmW. Remote Authentication Dial-In User Service (RADIUS) is Yes. Reset button is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Quick start guide | Yes |
|---|---|
| Mounting kit | Yes |
| AC adapter included | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| DHCP client | Yes |
|---|
| Product colour | White |
|---|---|
| Placement | Ceiling, Wall |
| Power consumption (max) | 17.83 W |
|---|---|
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Web-based management | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Cloud-managed | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Access point management | Wi-Fi schedule |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| VLAN support | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x |
| Antenna type | Internal |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Supported network protocols | IPv4/IPv6 |
| Guest access | Yes |
|---|---|
| Schedule access | Yes |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Channel bandwidth | 240 MHz |
|---|
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 4324 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4324 Mbit/s |
| Coverage area | 140 m² |
| Spread spectrum method | OFDMA |
| Flash memory | 128 MB |
| Rate limiting | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum Tx power (2.4 GHz) | 25 dBmW |
| Maximum Tx power (5 GHz) | 25 dBmW |
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 36.7 mm |
| Weight | 410 g |
| Package width | 245 mm |
|---|---|
| Package depth | 228 mm |
| Package height | 65 mm |
| Package weight | 792 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Internal memory | 4096 MB |
|---|---|
| BeamForming | Yes |
| DC-in jack | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
Warranty
3 year limited warranty
