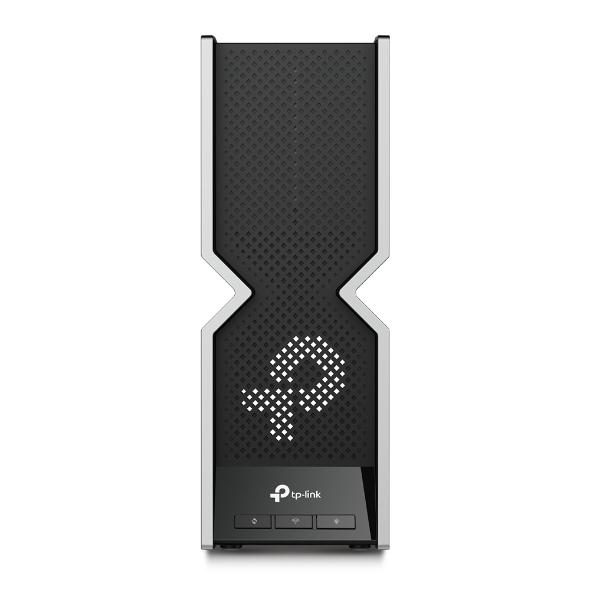

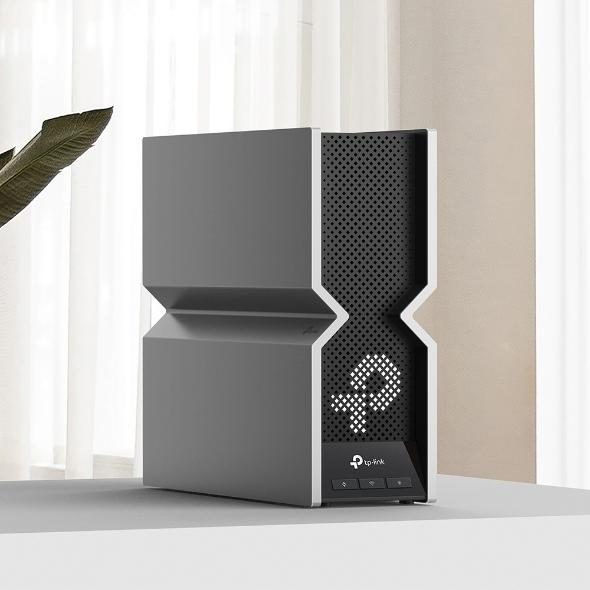

TP-Link EB810V wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz)
TP-LinkModel 1014605
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN data rates
- 1000,2500,10000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 5
- Certification
- CE
- Antenna design
- Internal
Specifications
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Certification | CE |
| Antenna design | Internal |
|---|
| USB port | Yes |
|---|---|
| RJ-11 ports quantity | 2 |
| Firewall | Yes |
|---|---|
| Firewall security | DoS, SPI Firewall, IP & MAC Address Binding |
| Web-based management | Yes |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|---|---|
| WLAN data transfer rate (first band) | 1376 Mbit/s |
| WLAN data transfer rate (second band) | 5760 Mbit/s |
| WLAN data transfer rate (third band) | 11520 Mbit/s |
| Ethernet WAN | Yes |
|---|---|
| SIM card slot | No |
| Width | 96 mm |
|---|---|
| Depth | 262.5 mm |
| Height | 302 mm |
| Package type | Box |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power source type | DC |
|---|---|
| Output current | 5 A |
| Output voltage | 12 V |
| Product type | Tabletop router |
|---|
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
|---|---|
| Modulation | 4096-QAM |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Port forwarding | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| MIMO | Yes |
| VPN support | PPTP, OpenVPN, IPSec |
