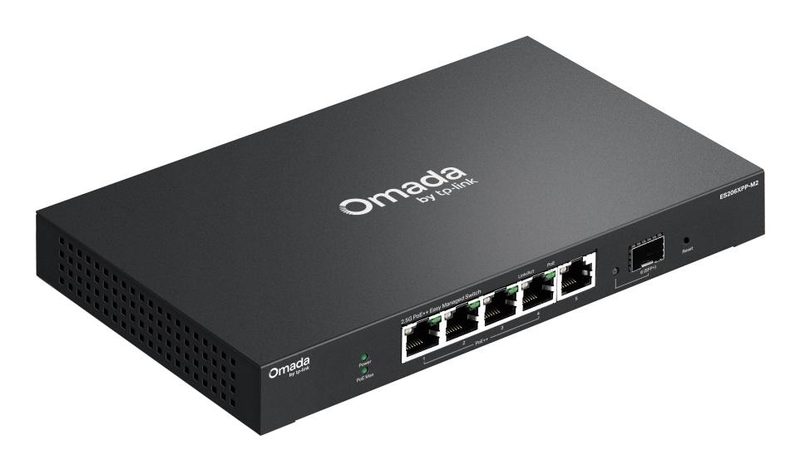

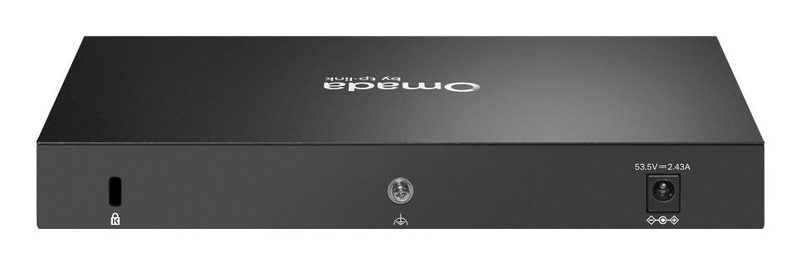

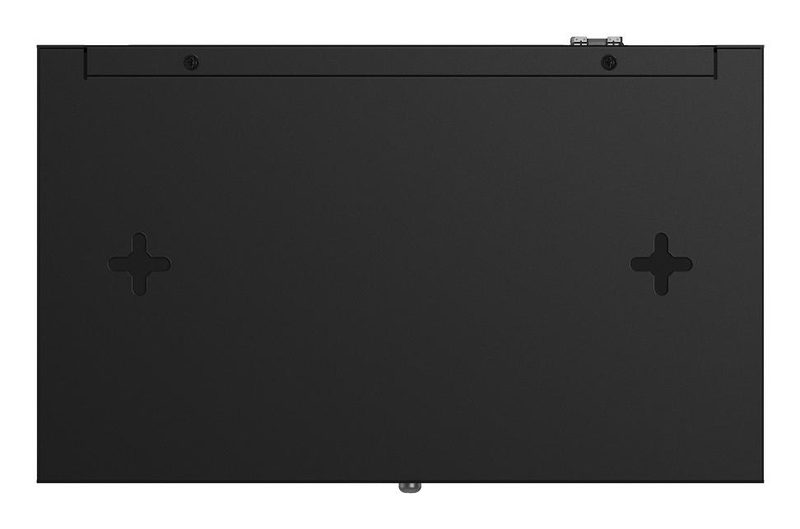

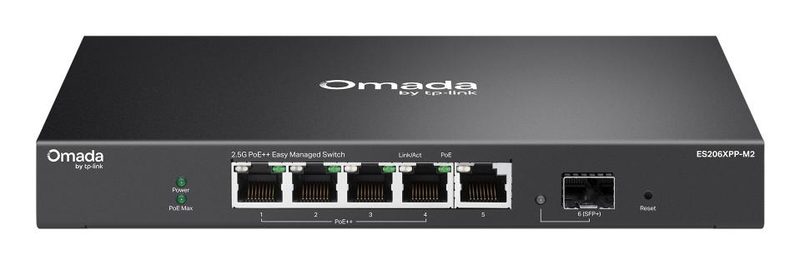

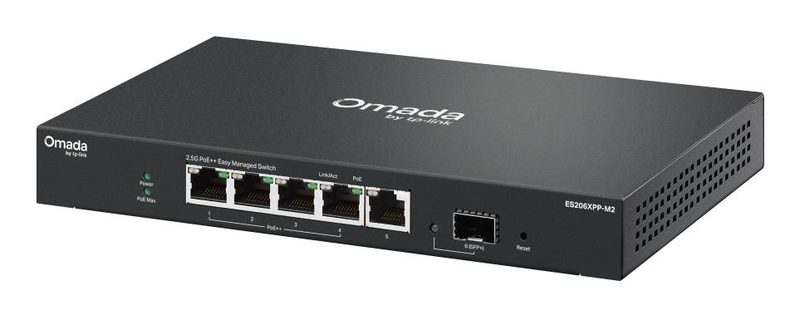

TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
TP-LinkModel ES206XPP-M2
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Certification
- CE, FCC, RoHS
- Flash memory
- 64 MB
- DHCP features
- DHCP client
Overview
TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black is a TP-Link switches & adapter with a certification of CE, FCC, RoHS and a firmware upgradeable of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is CE, FCC, RoHS. Firmware upgradeable is Yes. Virtual LAN features is MTU VLAN, Port-based VLAN. Packet buffer memory is 0.64 MB. Switch type is Managed. Flow control support is Yes. Total Power over Ethernet (PoE) budget is 120 W. Link aggregation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Certification | CE, FCC, RoHS |
| Flash memory | 64 MB |
|---|
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| AC input voltage | 100 - 240 V |
|---|---|
| Power supply included | Yes |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | Yes |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 45 Gbit/s |
| Forwarding rate | 33.48 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Packet buffer memory | 0.64 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 1 |
| Switch layer | L2 |
|---|---|
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Product colour | Black |
|---|---|
| Form factor | Desktop/Wall-Mounting |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
