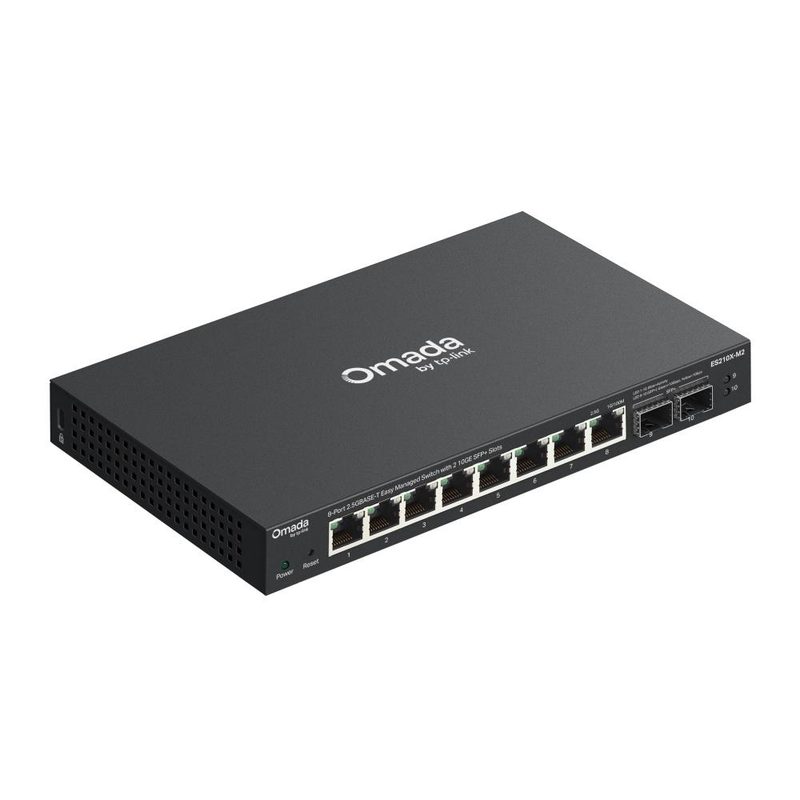

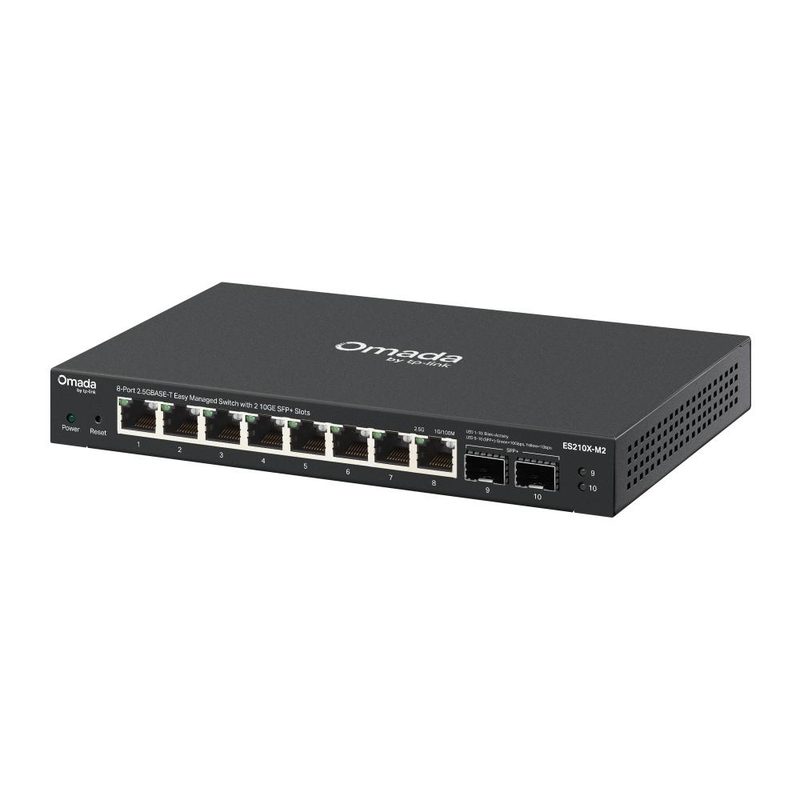

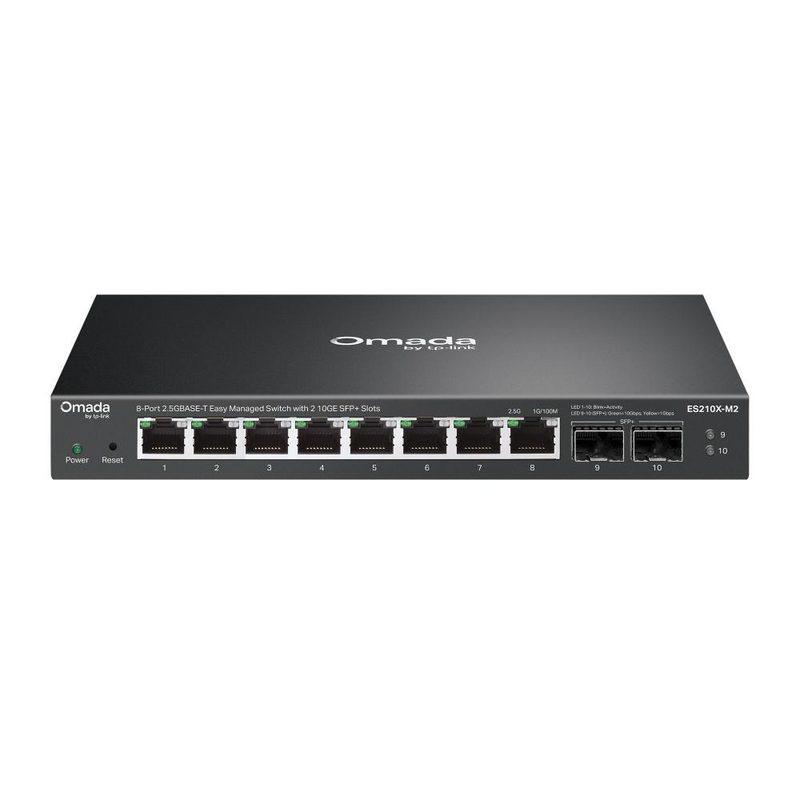

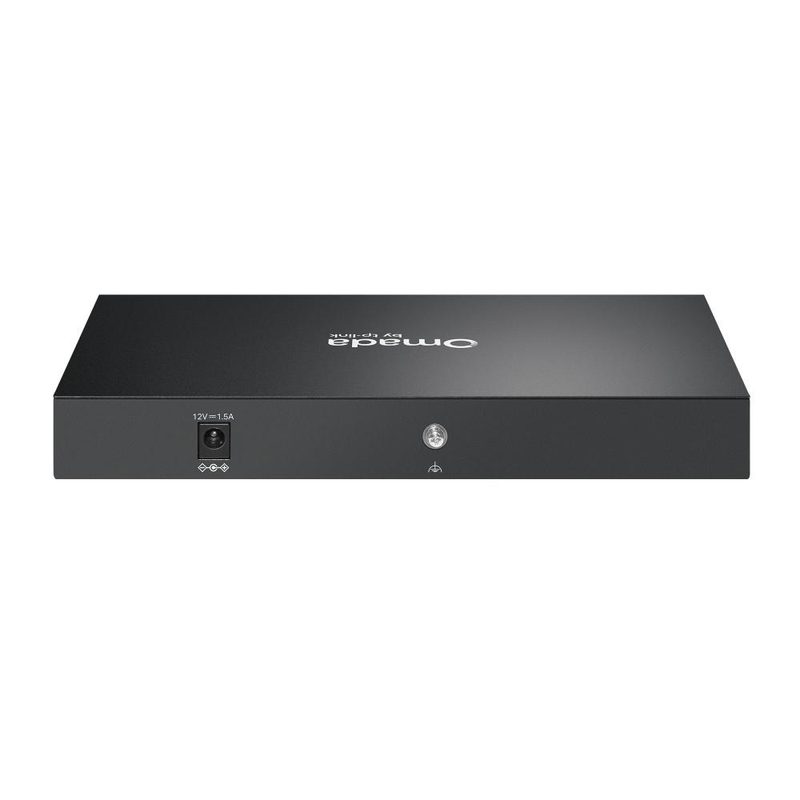

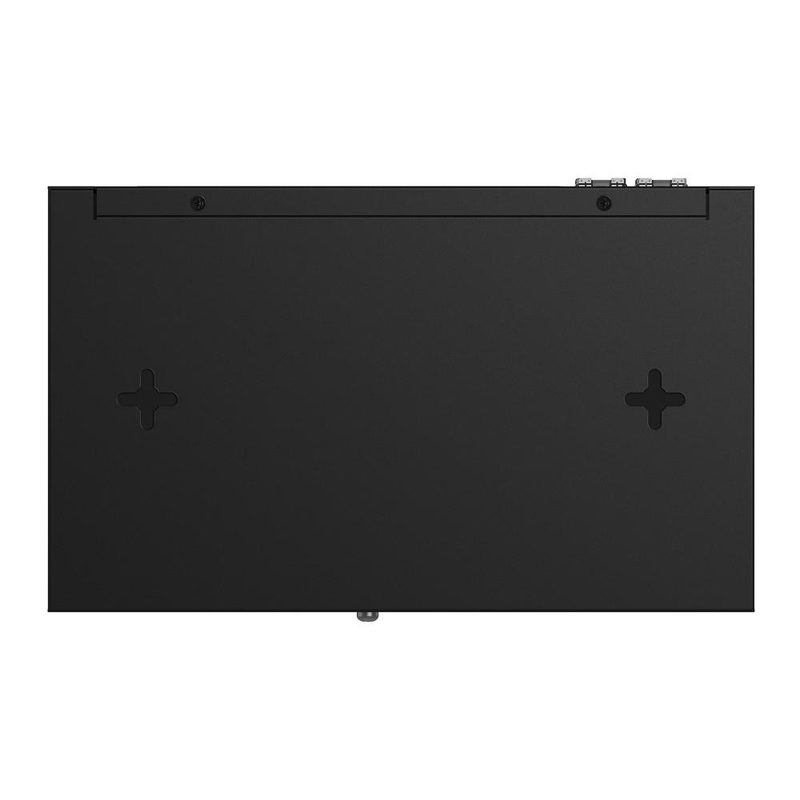

TP-Link ES210X-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
TP-LinkModel ES210X-M2
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Product colour
- Black
- Rack mounting
- Yes
- Form factor
- Desktop/Wall-Mounting
Overview
TP-Link ES210X-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black is a TP-Link switches & adapter with a firmware upgradeable of Yes and a packet buffer memory of 0.64 MB. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Firmware upgradeable is Yes. Packet buffer memory is 0.64 MB. Switch type is Managed. Flow control support is Yes. Link aggregation is Yes. Broadcast storm control is Yes. IGMP snooping is Yes. Port mirroring is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Firmware upgradeable | Yes |
|---|
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power supply included | Yes |
|---|---|
| Power source | DC |
| Power over Ethernet (PoE) | No |
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.64 MB |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1p |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
