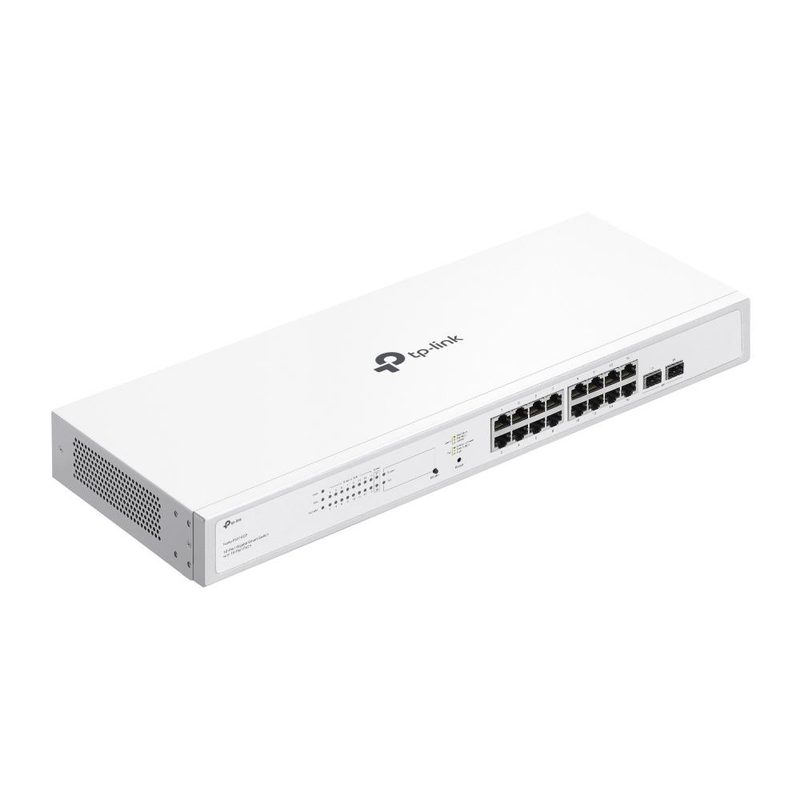

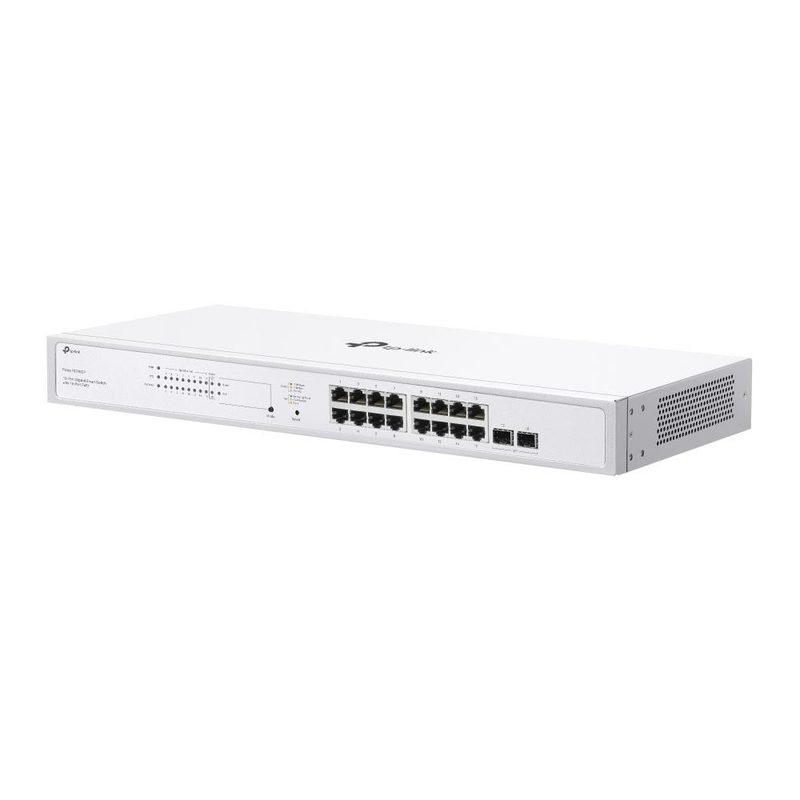

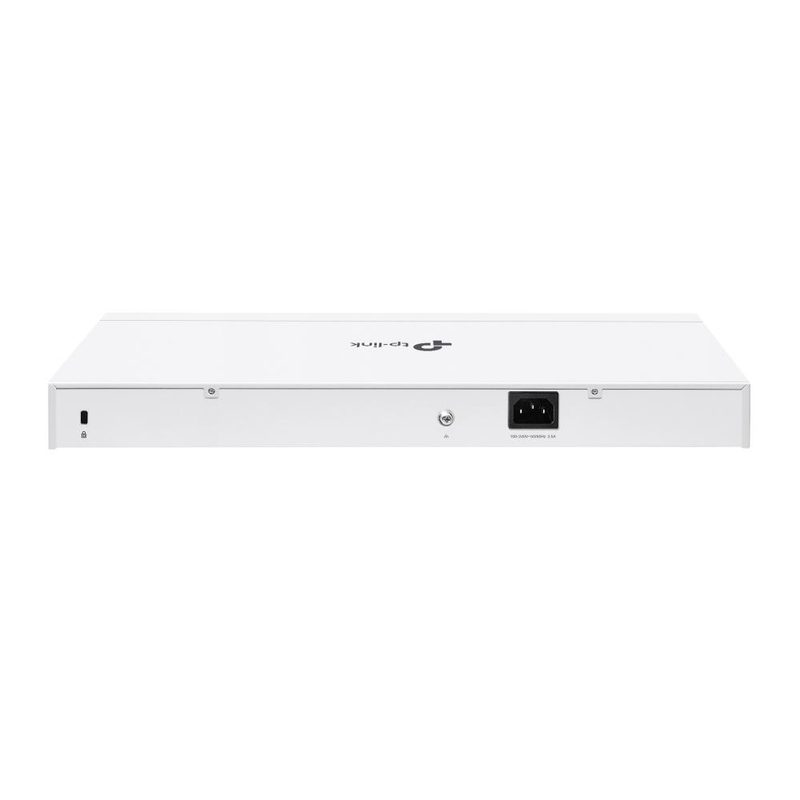

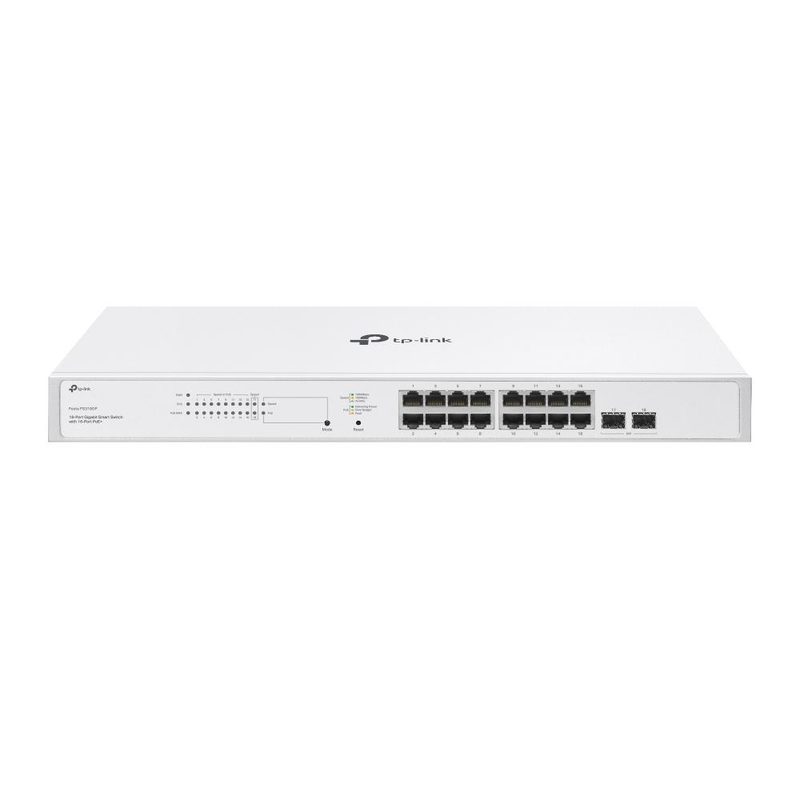

TP-Link Festa FS318GP L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
TP-LinkModel FESTA FS318GP
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Rack mounting
- Yes
- IP-MAC-Port binding
- Yes
- DHCP features
- DHCP relay, DHCP server, DHCP snooping
- IGMP snooping
- Yes
Overview
TP-Link Festa FS318GP L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) is a TP-Link switches & adapter with a fanless of Yes and a firmware upgradeable of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Fanless is Yes. Firmware upgradeable is Yes. Packet buffer memory is 4.1 MB. Flow control support is Yes. Total Power over Ethernet (PoE) budget is 150 W. Link aggregation is Yes. Broadcast storm control is Yes. IGMP snooping is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Rack mounting | Yes |
|---|
| IP-MAC-Port binding | Yes |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
|---|---|
| Flash memory | 32 MB |
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| LED indicators | Yes |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
|---|---|
| Total Power over Ethernet (PoE) budget | 150 W |
| Internal memory | 256 MB |
|---|---|
| Fanless | Yes |
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 4.1 MB |
| 10G support | No |
|---|---|
| VLAN support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Access Control List (ACL) | Yes |
|---|---|
| Switch layer | L2/L2+ |
| Firmware upgradeable | Yes |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
