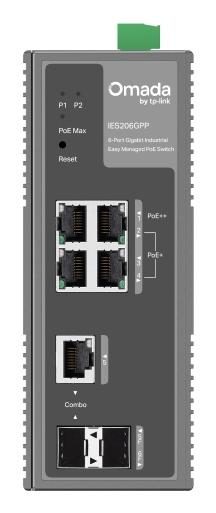

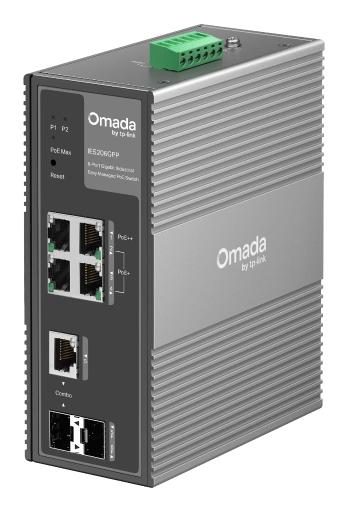

TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LinkModel IES206GPP
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Switch type
- Managed
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Certification
- FCC, CE, RoHS
- DC input voltage
- 12 - 57 V
Overview
TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black is a TP-Link switches & adapter with a certification of FCC, CE, RoHS and a fanless of Yes. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Certification is FCC, CE, RoHS. Fanless is Yes. Ethernet LAN data rates is 10,100,1000 Mbit/s. Switch type is Managed. Flow control support is Yes. Auto-negotiation is Yes. Total Power over Ethernet (PoE) budget is 120 W. Link aggregation is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty for normal product and 5 year warranty for managed switch. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Switch type | Managed |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, CE, RoHS |
| DC input voltage | 12 - 57 V |
|---|---|
| Power source | DC/PoE |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Quick start guide | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Width | 155 mm |
|---|---|
| Depth | 120 mm |
| Height | 60 mm |
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 3 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Fanless | Yes |
|---|
| Product colour | Black |
|---|---|
| Rack mounting | Yes |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Multicast support | Yes |
|---|
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| 10G support | No |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
Warranty
3 year limited warranty for normal product and 5 year warranty for managed switch
