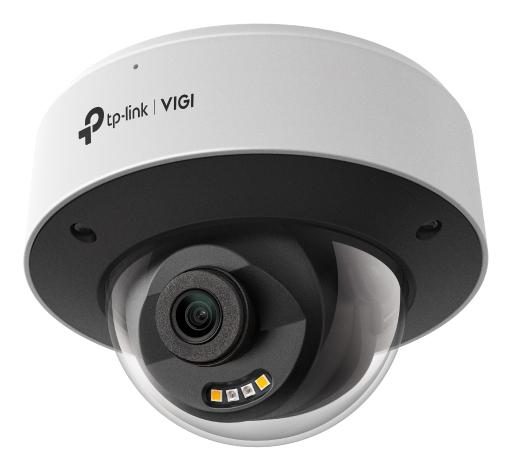

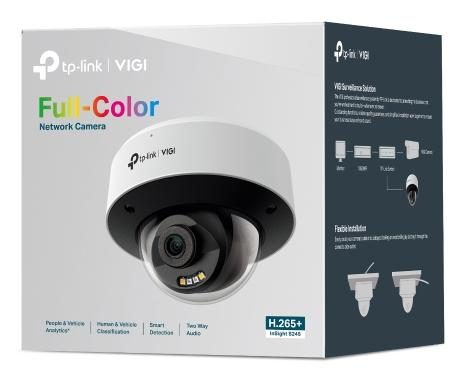

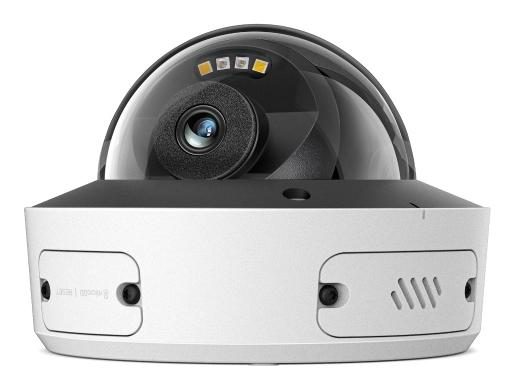

TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
TP-LinkModel INSIGHT S245(2.8MM)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Maximum operating distance
- 64 m
- Ethernet LAN (RJ-45) ports
- 1
- Connectivity technology
- Wired
- Wi-Fi
- No
Overview
TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling is a TP-Link cctv camera with a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP. Ethernet LAN (RJ-45) ports is 1. Maximum memory card size is 512 GB. Camera shutter speed is 1/3 to 1/10000. Reset button is Yes. International Protection (IP) code is IP67. Compatible memory cards is MicroSD (TransFlash). DC-in jack is Yes. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Maximum operating distance | 64 m |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| DC-in jack | Yes |
| Maximum memory card size | 512 GB |
| Manual | Yes |
|---|
| Width | 122 mm |
|---|---|
| Depth | 122 mm |
| Height | 89 mm |
| Weight | 620 g |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Tilt angle range | 0 - 75° |
|---|
| Type | IP security camera |
|---|---|
| Placement supported | Outdoor |
| Detection distance | 64 m |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
|---|
| Power source type | DC, PoE |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 12.52 W |
| DC output voltage | 12 |
| Web-based management | Yes |
|---|---|
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Maximum resolution | 2688 x 1520 pixels |
|---|
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| Built-in siren | Yes |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| Digest authentication | Yes |
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Audio output channels | 1.0 channels |
|---|
| Ethernet LAN | Yes |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Live view | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Sample rate | 8 kHz |
|---|
| Audio input channels | 1.0 channels |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Night vision | Yes |
|---|---|
| LED type | IR/White |
| Detect distance | 64 m |
|---|---|
| Observe distance | 27 m |
| Recognize distance | 13 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
|---|---|
| Progressive scan | Yes |
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Lens viewing angle, horizontal | 110° |
| Lens viewing angle, vertical | 58.1° |
| Lens viewing angle, diagonal | 133.5° |
| Camera shutter speed | 1/3 to 1/10000 |
| Product colour | White |
|---|---|
| Housing material | Metal |
| Protection features | Waterproof |
| IK code | IK10 |
| Weatherproof | Yes |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Audio formats supported | G.711 A-law |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Compatible memory cards | MicroSD (TransFlash) |
|---|
| Mounting type | Ceiling |
|---|
Warranty
3 year limited warranty
