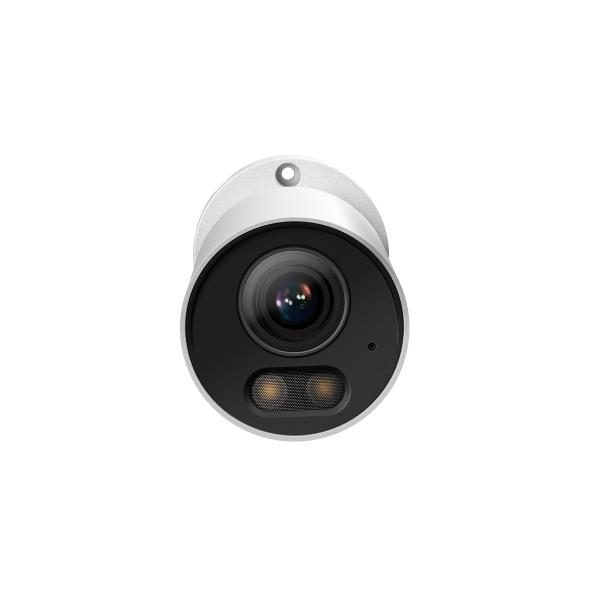

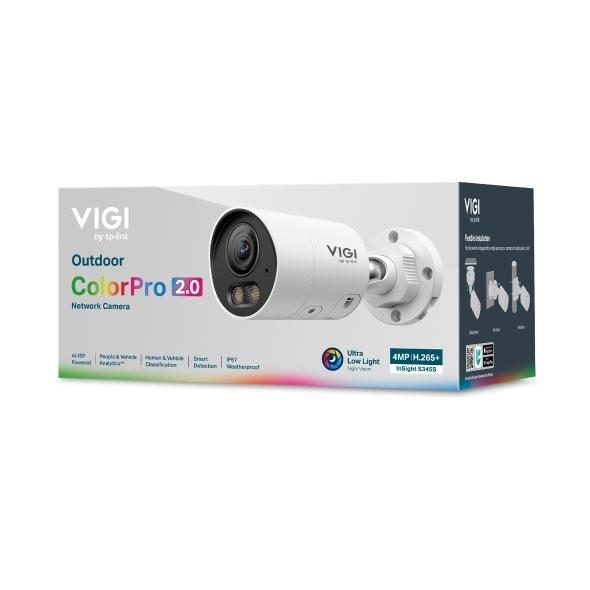

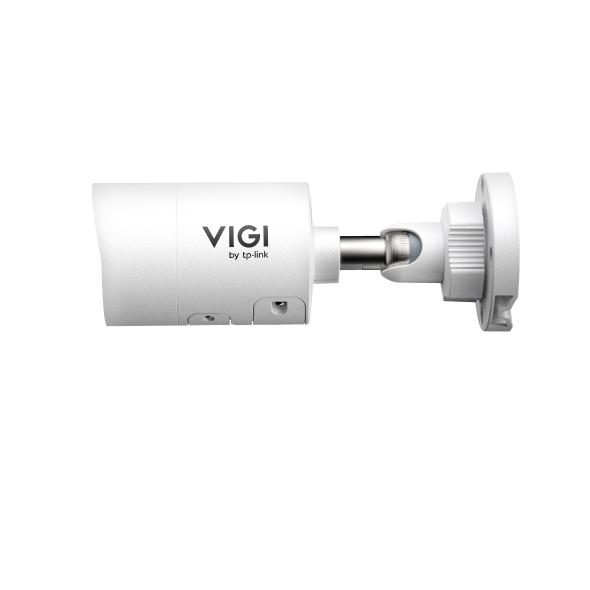

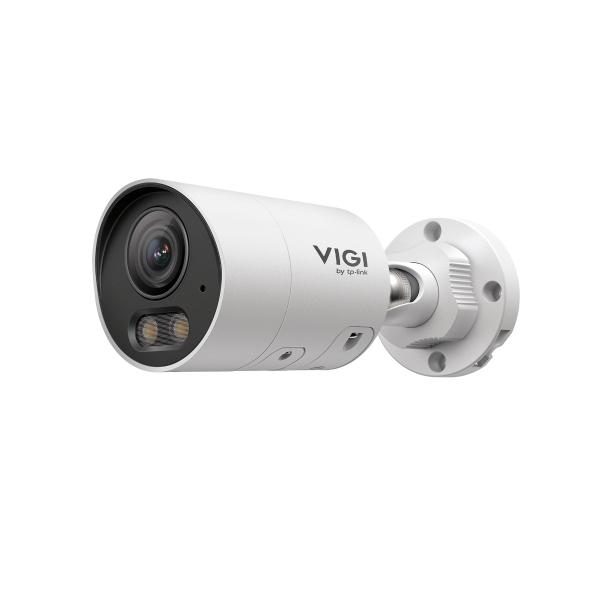

TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
TP-LinkModel INSIGHT S345S(4MM)
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Manual
- Yes
- Mounting kit
- Yes
- Compliance certificates
- BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
- Ethernet LAN (RJ-45) ports
- 1
Overview
TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole is a TP-Link cctv camera with a supported network protocols of TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP and a ethernet lan (rj-45) ports of 1. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP. Ethernet LAN (RJ-45) ports is 1. Maximum memory card size is 512 GB. Noise reduction is Yes. Camera shutter speed is 1/3 - 1/10000 s. International Protection (IP) code is IP67. Signal-to-Noise Ratio (SNR) is 52 dB. Compliance certificates is BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Manual | Yes |
|---|---|
| Mounting kit | Yes |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Diameter | 6.6 cm |
|---|---|
| Length | 191 mm |
| Weight | 600 g |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Maximum memory card size | 512 GB |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
|---|
| Type | IP security camera |
|---|---|
| Angle of rotation | 360° |
| Placement supported | Outdoor |
| Maximum resolution | 2688 x 1520 pixels |
|---|
| Web browser | Yes |
|---|---|
| Cloud-managed | Yes |
| Power source type | DC, PoE |
|---|---|
| DC output voltage | 12 |
| IP address filtering | Yes |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| Digest authentication | Yes |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Noise reduction | Yes |
|---|
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 30 m |
| LED type | IR/White |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Number of lenses | 1 |
|---|---|
| Detect distance | 76 m |
| Observe distance | 29 m |
| Recognize distance | 14 m |
| Maximum aperture number | 1 |
| Identify distance | 7 m |
| Fixed focal length | 4 mm |
| Optical sensor size | 25.4 / 1.79 mm (1 / 1.79") |
|---|---|
| Progressive scan | Yes |
| Minimum illumination | 0.0005 lx |
|---|---|
| Total megapixels | 4 MP |
| Lens viewing angle, horizontal | 95° |
| Lens viewing angle, vertical | 51° |
| Lens viewing angle, diagonal | 115° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Card reader integrated | Yes |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Pan range | 0 - 360° |
|---|---|
| Tilt angle range | 0 - 75° |
| Mounting type | Ceiling/Wall/Pole |
|---|
| Product colour | White |
|---|---|
| Housing material | Metal |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
Warranty
3 year limited warranty
