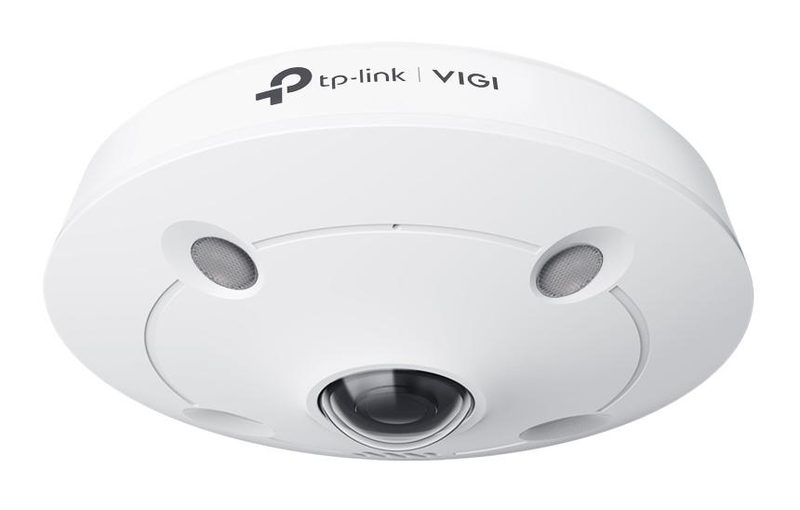

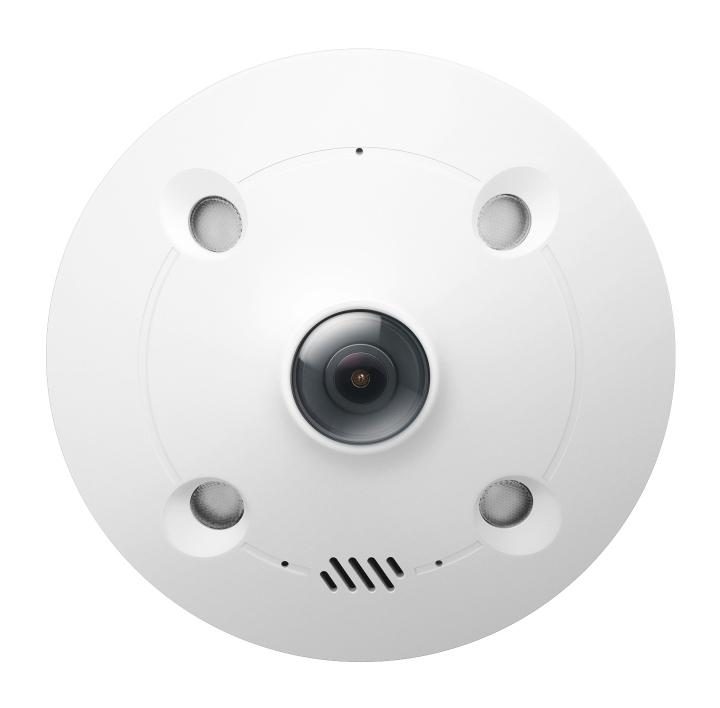

TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall
TP-LinkModel INSIGHT S655I
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
- Diameter
- 13.2 cm
- Height
- 56 mm
Overview
TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall is a TP-Link cctv camera with a client interoperability of Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS and a certification of CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Client interoperability is Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS. Certification is CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF. Lens mount interface is M12. Supported network protocols is TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP. Ethernet LAN (RJ-45) ports is 1. Number of Privacy masking areas is 4. Maximum memory card size is 512 GB. Camera shutter speed is 1/3 - 1/10000 s. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 year limited warranty. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Certification | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
| Diameter | 13.2 cm |
|---|---|
| Height | 56 mm |
| Weight | 440 g |
| Connectivity technology | Wired |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Maximum memory card size | 512 GB |
| Operating temperature (T-T) | -30 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in speaker(s) | Yes |
|---|
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920 |
|---|
| Power consumption (max) | 11.76 W |
|---|---|
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12.14 W |
| DC output voltage | 12 |
| Web browser | Yes |
|---|---|
| Cloud-managed | Yes |

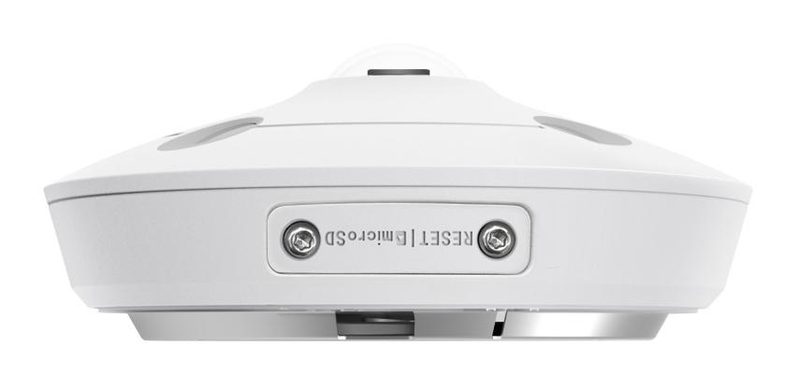

| Reset button | Yes |
| Maximum resolution | 2560 x 1920 pixels |
|---|
| IP address filtering | Yes |
|---|---|
| Password protection | Yes |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Privacy protection | Yes |
| Digest authentication | Yes |
| Alert notification type | E-mail, Push notification |
| Motion sensor | Yes |
| Type | IP security camera |
|---|---|
| Placement supported | Indoor |
| Built-in HDD | No |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Ethernet interface type | Fast Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Number of simultaneous live view channels | 6 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Client interoperability | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Sample rate | 8 kHz |
|---|
| Audio system | 2-way |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 0 - 64 Kbit/s |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
|---|---|
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 64 Kbps to 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Night vision | Yes |
|---|---|
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Detect distance | 28.8 m |
|---|---|
| Observe distance | 12 m |
| Recognize distance | 5.7 m |
| Maximum aperture number | 2 |
| Identify distance | 2.8 m |
| Fixed focal length | 1.44 mm |
| Lens mount interface | M12 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
|---|---|
| Progressive scan | Yes |
| Sensor type (panoramic camera) | CMOS |
|---|---|
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Minimum illumination | 0 lx |
|---|---|
| Total megapixels | 5 MP |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 180° |
| Lens viewing angle, diagonal | 180° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Product colour | White |
|---|---|
| Housing material | Metal |
| Protection features | Weatherproof |
| IK code | IK10 |
| Weatherproof | Yes |
| International Protection (IP) code | IP67 |
| Card reader integrated | Yes |
|---|---|
| Number of cameras | 1 |
| Sensor type | CMOS |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Dynamic range | 120 dB |
| Mounting type | Ceiling/wall |
|---|
Warranty
3 year limited warranty
